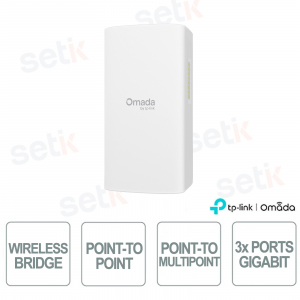

TP-Link Omada Flex Bridge 5 Wireless 5GHz 867Mbps 5km PoE IP66

TP-Link Omada Flex Bridge 5 Wireless 5GHz 867Mbps 5km PoE IP66

New

Flex Bridge 5 is a professional 5 GHz wireless bridge up to 867 Mbps , designed to create stable Point-to-Point and Point-to-Multipoint links over long distances up to 5 km . It integrates 17 dBi directional antennas , 3 Gigabit PoE ports including 2 PoE Out, remote management via Omada SDN and simplified configuration with role switches and pairing. The IP66 structure, lightning protection up to 6 kV and operation from -40 °C to +70 °C make it suitable for harsh outdoor environments. It also supports 802.3at/af power supply, passive PoE and 12 V DC , with wall or pole installation. Omada

Technical Data Sheet

Reference: Flex Bridge 5

Brand: OMADA

EAN: 1210002610940

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


Flex Bridge 5 | 5GHz 867Mbps Indoor/Outdoor Point-to-Point and Point-to-Multiple Antenna up to 5km


Made Omada

The TP-Link Omada Flex Bridge 5 is a professional 5 GHz wireless bridge up to 867 Mbps designed for stable Point-to-Point and Point-to-Multipoint connections up to 5 km . It integrates 2 17 dBi directional antennas , 2×2 MIMO technology and 3 Gigabit PoE ports , including 2 PoE Out to power remote devices. It supports management via Omada SDN , app-assisted alignment and quick pairing with dedicated switches. The IP66 structure, lightning protection up to 6 kV and operation from -40 °C to +70 °C make it ideal for professional outdoor installations.

Main specifications:

  • Band: 5 GHz
  • Speed: up to 867 Mbps
  • Distance: up to 5 km
  • Antennas: 2 × 17 dBi
  • Mode: PtP / PtMP
  • Ports: 3 Gigabit PoE
  • Management: Omada SDN
  • Protection: IP66, 6 kV

Further details

Point-to-Point and Point-to-Multipoint connections:
It supports PtP and PtMP wireless links to connect remote locations and devices; in PtMP configurations it is optimized to manage up to 8 Flex Bridges , while with Sector Bridge 5 it can support up to 32 Flex Bridges from a centralized hub.
Long-range wireless transmissions:
It operates on the 5 GHz band with speeds up to 867 Mbps and integrates 2 17 dBi high-gain directional antennas , enabling long-distance wireless connections up to 5 km with high signal stability.
Power supply for video surveillance with 2 PoE Out ports:
It has 3 Gigabit Ethernet ports , including 2 PoE Out ports that can be used to power remote IP cameras, with power up to 10W on a single port or 5W per port using both.
Role and DIP Switch Settings:
It integrates a Role Switch to quickly select Main AP or Client AP operation and dedicated DIP Switches for pairing code, simplifying bridge association and reducing setup time.
Flexible installation:
It supports wall or pole mounting using the included mounting kits and can use an optional ball-and-socket mount for precise orientation adjustment; guided alignment via the Omada App also makes signal optimization easy.
Designed for the outdoors:
The IP66- certified enclosure, lightning protection up to 6 kV and operation at temperatures between -40°C and +70°C make Flex Bridge 5 suitable for professional installations in harsh outdoor conditions.
Flexible power supply:
It supports multiple power modes, including 802.3at/af PoE, 54V Passive PoE, 24V Passive PoE, and 12V DC ; the 54V Passive PoE adapter is included , while PoE Passthrough is ensured with 54V Passive PoE or IEEE 802.3at power.

Technical data sheet

Model Flex Bridge 5
HARDWARE FEATURES
Interface 3× Gigabit Ethernet Ports (2 Support PoE Out)
Key Reset
DIP Switch
  • Role Switch
  • Pairing Code Switch
Diet
  • 12V DC
  • 802.3at/af PoE
  • 24V Passive PoE (54V Passive PoE Adapter Included - For Dry Indoor Use Only)
Energy consumption
  • DC: 12W
  • PoE: 26.06W with PoE out
Dimensions (L x W x H) 8.4 × 2 × 4.7 in (214.2 × 50.8 × 119.8 mm)
Antenna
  • 2.4 GHz: 1 × 1 dBi (peak gain), internal omnidirectional antennas
  • 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas
  • Beamwidth: Horizontal 40°, Vertical 18°
Weatherproof Enclosure IP66
Mounting type Pole and wall mounting (Kits included)
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requires the use of an Omada controller.
Email alerts Yes
LED ON/OFF Yes
SNMP Yes
SSH Yes
Web-based management Yes
Zero-Touch Provisioning Yes
WIRELESS FEATURES
PtP Yes
PtMP 8 Maximum
Transmission Distance 5,000 m (3.1 mi)
Wireless standards IEEE 802.11 a/n/ac
Frequency 5 GHz
Signal rate 5 GHz: Up to 867 Mbps
Wireless functionality
  • MU-MIMO: 5G 2x2 MU-MIMO DL
  • Multiple SSIDs: 1
  • Wireless Statistics
  • Reboot Schedule
  • RADIUS Accounting
  • Static IP/Dynamic IP
  • Rate Limit
  • Enable/Disable Wireless Radio
  • Enable/Disable SSID Broadcast
Wireless security
  • VLAN
  • Rogue AP Detection
  • Wireless Encryption
Transmission power THERE IS:
<23dbm 5="" ghz="" band="" 1="" 2="" eirp="" br=""> <30dbm 5ghz="" band3="" eirp="" br=""> FCC:
<23.5dbm 5ghz="" band1="" br=""> <25dbm 5ghz="" band4="" td="">
OTHER
Certification

CE, FCC, RoHS

Package Contents
  • Flex Bridge 5
  • Installation Guide
  • Mounting Kit
  • Passive PoE Adapter
  • Power Cord
Lightning Protection
  • Air discharge: ±8kV
  • Contact discharge: ±4kV
  • Common mode 10/700: ±6kV
Environment
  • Operating Temperature: -30°C–70°C (-22°F–158°F)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
Weight 0.59 kg (1.3 lbs)
