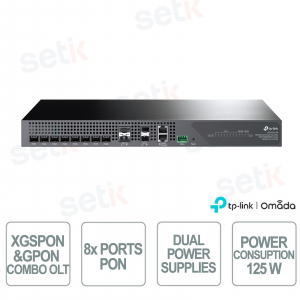

TP-Link DeltaStream DS-P7501-08 8-Port XGS-PON GPON 100G OLT for Professional Fiber Networks

TP-Link DeltaStream DS-P7501-08 8-Port XGS-PON GPON 100G OLT for Professional Fiber Networks

New

DS-P7501-08 is an 8-port XGS-PON and GPON OLT designed for high-capacity fiber infrastructure, with 8 XGS-PON/GPON Combo ports and transmission distance up to 20km . It supports up to 1:128 GPON and 1:256 XGS-PON splitting, with XGS-PON speeds up to 9.953Gbps symmetrical . It integrates 2 x 100G QSFP28 ports and 2 x 25G SFP28 ports , dual hot-swappable power supplies , Zero-Touch ONU , Auto Provisioning and multi-level QoS . Centralized management via DPMS, SNMP, CLI and Web interface simplifies the configuration, monitoring and administration of professional multi-site PON networks. Omada

Technical data sheet not available

Reference: DS-P7501-08

Brand: OMADA

EAN: 1210002600200

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-P7501-08 | DELTA STREAM OLT XGS-PON AND GPON WITH 8 PORTS


Made Omada

The TP-Link DeltaStream DS-P7501-08 is an 8-port XGS-PON and GPON Combo OLT designed for high-capacity professional fiber infrastructures, with transmission distances of up to 20km . It supports up to 1:128 GPON and 1:256 XGS-PON splitting and integrates 2 x 100G QSFP28 ports and 2 x 25G SFP28 ports for high-speed uplinks. It offers dual hot-swappable power supplies , Zero-Touch ONU , Auto Provisioning, multi-level QoS and advanced L2/L2+ features. Centralized management via DPMS, SNMP, CLI and Web simplifies administration, monitoring and scaling of PON networks.

Main specifications:

  • PON: 8× XGS-PON/GPON Combo
  • Splitting: GPON 1:128 / XGS-PON 1:256
  • Distance: up to 20 km
  • Uplink: 2×100G + 2×25G
  • Provisioning: Zero-Touch ONU
  • QoS: multi-level
  • Power supply: dual hot-swappable
  • Management: DPMS, SNMP, CLI, Web

Further details

Number of doors:
The TP-Link DeltaStream DS-P7501-08 integrates 8 Combo XGS-PON and GPON (SFP+) ports , capable of supporting both PON technologies, alongside high-capacity uplink interfaces and dedicated ports for OLT management.
Splitting:
It supports a maximum splitting ratio of up to 1:128 in GPON and up to 1:256 in XGS-PON , allowing fiber connectivity to be distributed to a large number of ONUs within the PON infrastructure.
Distance:
The Combo PON ports support a transmission distance of up to 20 km , enabling the construction of fiber infrastructures suitable for extended links and professional access networks.
Uplink:
It has 2 x 100Gbps QSFP28 ports and 2 x 25Gbps SFP28 ports , providing high-bandwidth uplinks to effectively handle aggregate traffic from XGS-PON and GPON network.
QoS:
It integrates multi-level QoS with IEEE 802.1p/DSCP QoS, Voice VLAN and Auto VoIP support, allowing you to differentiate and prioritize network services to meet Service Level Agreements (SLAs) and improve user experience.
Power supply:
It uses a hot-swappable dual power supply system configurable with 2 AC, 2 DC or AC+DC power supplies , designed to increase the operational continuity and flexibility of the network infrastructure.
Management:
It supports centralized management via DeltaStream PON Management System (DPMS), SNMP, CLI and web interface , with features for large-scale management, OLT configuration, batch upgrade and reboot, multi-site management , intelligent monitoring and real-time network overview.

Technical data sheet

Model DS-P7501-08
HARDWARE FEATURES
Interface 8× XGS-PON & GPON Combo Ports (SFP+)
2× 100G QSFP28 Ports
2× 25G SFP28 Ports
1× RJ45 Management Port
1× RJ45 Console Port
1× Alarm Port
Key Reset Button
Diet Dual Power Supplies: 2 AC, 2 DC or AC+DC,
AC: 100V~240V, 50/60Hz
DC: -38.4V~-72V
Energy consumption Max. 125W
Dimensions (L x W x H) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
SOFTWARE FEATURES
Safety ACL
802.1x Authentication
ARP Inspection
IP Source Guard
DHCP DHCP Server
DHCP Relay
OMCI OMCI Management Standard
UN Authentication UN Auto Authentication
UN Security Rouge ONU Detection and Isolation
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS IEEE 802.1p/DSCP QoS
Voice VLAN
Auto VoIP
Routing Static Routing
Multicast IGMP Snooping
MLD Snooping
Centralized Management Large-Scale Devices Management
OLT Batch Configure, Upgrade, Reboot
Multi-Site Management
Intelligent Network Monitoring
Real-time Network Overview
COMBO PON PORT ATTRIBUTE
Max. Splitting Ratio GPON: 1:128
XGS-PON: 1:256
Transmission distance 20 km
Data rate GPON
Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
XGS-PON
Downstream: 9.953 Gbps, Upstream: 9.953 Gbps
Wave Length XGS-PON:
Tx: 1577 nm
Rx: 1270 nm
GPON:
Tx: 1490 nm
Rx: 1310 nm
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Central (Cloud-Based)
  • Omada Hardware Controller
  • Omada Software Controller
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
  • Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3
  • Diagnostics (Ping & Traceroute)
  • NTP Synchronize§
  • Port Mirroring
  • CLI (only in Standalone Mode)
  • Syslog Support
Management Features Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHER
Certification

CE, RoHS

Package Contents
  • Optical Line Terminal DS-P7500-8
  • AC Power Cord
  • Console Cable
  • Mouting Brackets, Screws and Rubber Feet
  • Installation Guide
Environment
  • Operating Temperature: 0℃–50℃ (32℉–122℉)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
