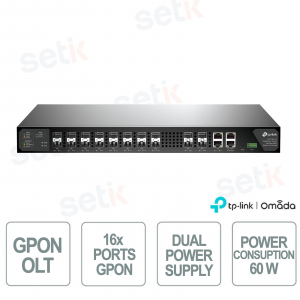

TP-Link DeltaStream DS-P7001-16 OLT GPON 16 Ports 10G Split 1:128 20 km for Fiber Networks

TP-Link DeltaStream DS-P7001-16 OLT GPON 16 Ports 10G Split 1:128 20 km for Fiber Networks

New

DS-P7001-16 is a professional 16-port GPON OLT in a compact 1U size, designed for high-density fiber networks. It supports splitting up to 1:128 per port , for up to 2048 ONTs , with 2.5 Gbps downstream and 1.25 Gbps upstream speed and transmission distance up to 20 km . It integrates 4 SFP+ 10 Gbps uplinks , dual redundant AC/DC power supplies, QoS functions, advanced security and centralized management via DPMS, SNMP, CLI and Web UI . Omada

Technical Data Sheet

Reference: DS-P7001-16

Brand: OMADA

EAN: 4897098683620

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-P7001-16 | GPON OLT 16 PORTS


Made Omada

The TP-Link DeltaStream DS-P7001-16 is a professional 16-port GPON OLT designed for high-density fiber networks, with 1:128 splitting per port and support for up to 2048 ONTs . It offers speeds of up to 2.5 Gbps downstream and 1.25 Gbps upstream , with transmission distances of up to 20 km . It integrates 4 SFP+ 10 Gbps uplinks , dual redundant AC/DC power supplies and centralized management via DPMS, SNMP, CLI and Web UI . It also supports 802.1p/DSCP QoS , Voice VLAN, Auto VoIP and advanced network security and monitoring functions.

Main specifications:

  • Ports: 16× GPON
  • Splitting: 1:128
  • ONT: up to 2048
  • Speed: 2.5/1.25 Gbps
  • Distance: up to 20 km
  • Uplink: 4× SFP+ 10G
  • Power supply: dual AC/DC
  • Management: DPMS, SNMP, CLI, Web UI

Further details

Number of doors:
The TP-Link DeltaStream DS-P7001-16 integrates 16 PON ports with SFP slots , alongside uplink, Console, MGMT and Alarm ports, offering a complete set of features for professional GPON infrastructures.
Splitting:
Each GPON port supports a maximum splitting ratio of 1:128 , allowing the fiber connection to be distributed to numerous optical terminals and creating high-density networks.
ONT:
With 16 GPON ports and 1:128 splitting per port , a single DS-P7001-16 can support up to 2048 ONTs in total, increasing the PON network deployment capacity.
Speed:
GPON ports provide data rates of up to 2.5 Gbps downstream and 1.25 Gbps upstream , providing high-speed connectivity for data, voice and network applications.
Distance:
It supports a transmission distance of up to 20 km on 9/125 μm single-mode fiber , with SC/UPC interface and optical class C+ , making it suitable for the creation of extended GPON networks.
Uplink:
It features 4 x 10Gbps SFP+ ports and 2 x 10/100/1000Mbps Gigabit RJ45 ports dedicated to uplink, providing high-capacity connections to the core network infrastructure.
Power supply:
It integrates a dual redundant power supply configurable with 2 AC, 2 DC or AC+DC , designed to increase operational reliability and service continuity in professional network infrastructures.
Management:
It offers centralized management via DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI , with remote configuration and upgrades; it also supports large-scale management, batch operations on OLTs, multi-site management , intelligent monitoring, and real-time network overview.

Technical data sheet

Model DS-P7001-16
HARDWARE FEATURES
Interface
  • 16× GPON Ports
  • 4× 10 Gbps SFP+ Uplink Ports
  • 2× 10/100/1000 Mbps RJ45 Uplink Ports
  • 1× RJ45 Console Port
  • 1× RJ45 MGMT Port
  • 1× Alarm Port
Key Reset Button
Diet Dual Power Supply: 2 AC, 2DC or AC + DC
AC: 100V~240V, 50/60 Hz
DC: -38.4V~-72V
Energy consumption Max. 103W
Dimensions (L x W x H) 17.3 ×17.3 × 1.7 in (440 × 440 × 44 mm)
SOFTWARE FEATURES
Safety
  • ACL
  • 802.1x Authentication
  • ARP Inspection
  • IP Source Guard
DHCP
  • DHCP Server
  • DHCP Relay
OMCI OMCI Management Supported Standard
UN Authentication UN Auto Authentication
UN Security
  • Rouge ONU Detection and Isolation
  • Uplink and Downlink Data Encryption
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS
  • IEEE 802.1p/DSCP QoS
  • Voice VLAN
  • Auto VoIP
Routing Static Routing
Multicast
  • IGMP Snooping
  • MLD Snooping
Centralized Management
  • Large-Scale Devices Management
  • OLT Batch Configure, Upgrade, Reboot
  • Multi-Site Management
  • Intelligent Network Monitoring
  • Real-time Network Overview
COMBO PON PORT ATTRIBUTE
Max. Splitting Ratio GPON: 1:128
Transmission distance 60 km
Data rate Downstream: 2.5 Gbps
Upstream: 1.25 Gbps
Wave Length Tx: 1490 nm
Rx: 1310 nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Tx power Class C+
OTHER
Certification

CE,FCC

Package Contents
  • OLT Device
  • Console Cable
  • Installation Guide
  • Mouting Brackets, Screws and Rubber Feet
Environment
  • Operating Temperature: 0℃–50℃ (32℉–122℉)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
