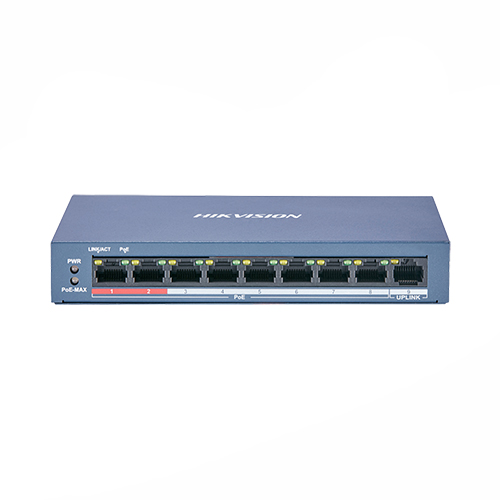

The DS-3E0109P-E / M from Hikvision, is a 9 Ports network switch , 8 Ports support PoE (IEEE 802.3af, IEEE 802.3at) , 1 port 100Mbps Ethernet. Metal, fanless design.
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

NETWORK SWITCH 9 ETHERNET PORTS - 8 PoE 100Mbps ports - 1 100Mbps port - HIKVISION
Ethernet switch -Hikvision9 Ethernet ports - 8 PoE ports 100 Mbps - 1 Port 100Mbps - Mac Address 2K - Switching capacity 1.8Gbps
Product details
- Network Switch - Hikvision
- 9 Ethernet ports
- 8 PoE 100 Mbps ports
- 1 Port 100 Mbps
- Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- PoE Standards Supported: IEEE 802.3af, IEEE 802.3at
- Metal - Fanless design
- Dimensions: 170mm × 27.6mm × 93.1mm (6.7 "× 1.1" × 3.7 ")
Data sheet
| Model | DS-3E0109P-E / M |
| Network parameters | |
| Port Number | 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet por |
| Port type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| High priority ports | Ports 1 to 2 |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 2 K |
| Switching capacity | 1.8 Gbps |
| Packet forwarding rate | 1.8 Gbps |
| Internal cache | 1 Mbits |
| PoE Power Supply | |
| Standard PoE | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| PoE port | Ports 1 to 8 |
| Max. Port power | 30 W |
| PoE power budget | 60 W |
| Max. Power consumption | 65 W |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 0.89 kg (1.96 lb) |
| Net weight | 0.35 kg (0.77 lb) |
| Dimension (L × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7 "× 1.1" × 3.7 ") |
| Operating temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Storage temperatures | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 1.35 A |
| Power consumption in idle | 5 W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) |
| Chemistry | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
