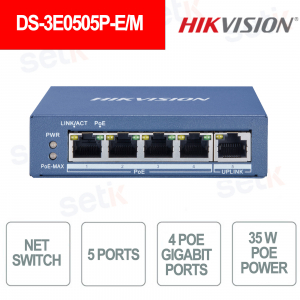

Hikvision DS-3E0505P-E/M | 4-Port 35W Gigabit PoE Switch for Networks and Video Surveillance

Hikvision DS-3E0505P-E/M | 4-Port 35W Gigabit PoE Switch for Networks and Video Surveillance

 
-35%

DS-3E0505P-E/M - is an unmanaged Gigabit PoE switch with 4 PoE ports and 1 RJ45 port, ideal for business networks and video surveillance systems. It supports IEEE 802.3af/at standards and offers a 35W PoE budget with surge protection up to 6KV, ensuring security and business continuity. With 10 Gbps switching capacity and a forwarding rate of 7.44 Mpps, it ensures fast and stable data transmission. The compact, fanless metal design ensures silence and durability, making it the perfect choice for those seeking reliable performance and efficient network management. - Hikvision

Technical Data Sheet

Reference: DS-3E0505P-E/M

Brand: Hikvision

EAN: 6941264023104

Disponibilità: 4

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

ALARM HIKVISION×

  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-3E0505P-E/M | 5-PORT ETHERNET SWITCH - 10Gbps SWITCHING CAPACITY - 35W POE POWER

Hikvision

The Hikvision DS-3E0505P-E/M Gigabit PoE switch is designed to ensure stable and secure network connections in professional and video surveillance applications. With 4 PoE ports and 1 RJ45 port, it supports IEEE 802.3af/at standards and ensures efficient power and data transfer. The compact, fanless metal design offers quiet operation and durability, while the 10 Gbps switching capacity enables high performance in any environment.

Main specifications:

- 4 Gigabit PoE ports + 1 RJ45 port

- PoE power up to 35W (30W per port)

- 10 Gbps switching capacity, 7.44 Mpps forwarding rate

- Surge protection up to 6KV

- Compact fanless metal design

Further details

✅ Number of doors:
Equipped with 4 Gigabit PoE ports to directly power IP cameras or compatible devices, plus 1 RJ45 Gigabit uplink port , ideal for integrating the switch into the main network without loss of performance.
✅ Resolution / Data Transmission :
It supports 10/100/1000 Mbps Gigabit speeds with store-and-forward mode , ensuring smooth and stable transmissions even with high-definition video streams, optimizing data management without interruptions.
✅ PoE Power:
Compliant with IEEE 802.3af/at standards , it offers up to 30W per port and a total power budget of 35W , ensuring safe and efficient power for multiple PoE devices simultaneously, with surge protection up to 6KV .
✅ Switching Capacity:
With a switching capacity of 10 Gbps and a packet forwarding rate of 7.44 Mpps , it ensures high and non-blocking performance, perfect for networks that require continuous reliability such as video surveillance systems or enterprise environments.

Technical data sheet

Model DS-3E0505P-E/M
Network parameters
Port Number 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding mode Store-and-forward switching
MAC address table 2 K
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
Internal cache 1 Mbits
PoE Power Supply
Standard PoE IEEE 802.3af, IEEE 802.3at
PoE power pin Ethernet cable 1/2/3/6 provide power supply
PoE port Ports 1 to 4
Max. port power 30 W
PoE power budget 35 W
Max. power consumption 38 W
General
Shell Metal material, no fan
Gross weight 0.265 kg (0.58 lb)
Net weight 0.759 kg (1.67 lb)
Dimensions (L × H × D) 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 0.8 A
Power consumption at idle 3 W
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
