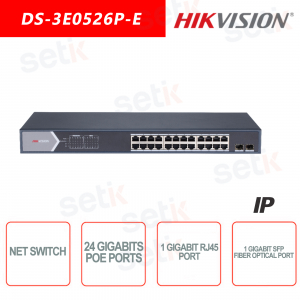

NETWORK SWITCH 26 PORTS - 24 Gigabit PoE Ports - 1 GIGABIT SFP Fiber Optic Port - 1 GIGABIT RJ45 PORT - HIKVISION
Ethernet switch -Hikvision26 Ethernet Ports - 24 Gigabit PoE Ports - 1 Gigabit SFP Fiber Optic Port - 1 Gigabit RJ45 Port - Mac Address 8K - 52Gbps Switching Capacity
Product details
- Network Switch - Hikvision
- 26 Ethernet ports
- 24 Gigabit PoE ports
- 2 SFP Fiber Optic Ports
- Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- PoE Standards Supported: IEEE 802.3af, IEEE 802.3at
- 6KV surge protection for PoE ports
- PoE power management
- Metal
- Dimensions: 440 mm × 44 mm × 220.8 mm (17.3 "× 1.7" × 8.7 ")
Data sheet
| Model | DS-3E0526P-E |
| Network parameters | |
| Port Number | 24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports |
| Port type | RJ45 port, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| MAC address table | 8 K |
| Switching capacity | 52 Gbps |
| Packet forwarding rate | 38,688 Mpps |
| Internal cache | 4.1 Mbits |
| PoE Power Supply | |
| Standard PoE | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Support 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply. |
| PoE port | Ports 1 to 24 |
| Max. Port power | 30 W |
| PoE power budget | 370 W |
| Max. Power consumption | 400 W |
| General | |
| Shell | Metal material |
| Gross weight | 3.74 kg (8.25 lb) |
| Net weight | 2.88 kg (6.35 lb) |
| Dimension (L × H × D) | 440 mm × 44 mm × 220.8 mm (17.3 "× 1.7" × 8.7 ") |
| Operating temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Storage temperatures | -40 ° C to 85 ° C (-40 ° F to 185 ° F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, Max.6.5 A |
| Power consumption in idle | 30 W |
