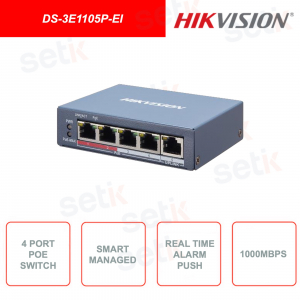

The DS-3E1105P-EI from Hikvision, is a 4 Port network switch. 4 Ports support PoE (IEEE 802.3af, IEEE 802.3at) , 1 port 100Mbps Ethernet. Product made of metal, with fanless design. Supports 6KV lightning protection on PoE ports - Allows signal transmission up to 300m - MAC Table Adress 2K - 1Gbps switching capacity - Monitors proper network operation - Allows Video preview and video control - AF / AT cameras can reach the range of 300m in extended mode - Ideal for reducing the costs of operating and maintaining the network - Solution designed for video surveillance systems.
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NETWORK SWITCH 4 ETHERNET PORTS - 4 PoE Ports - 1 100Mbps Port - HIKVISION - DS-3E1105P-EI

Ethernet switch - 4 Ports - Hikvision - DS-3E1105P-EI
4 Ethernet ports - 4 PoE 100 Mbps ports - 1 100Mbps port - Mac Address 2K - 1Gbps switching capacity - Fanless design - Metal fabricated - 6KV lightning protection - Digital signal transmission supported up to 300m - AF / AT cameras they can reach the range of 300m in extended mode. Ideal for configuring and managing video surveillance systems.
Product details
- Network switch - Hikvision - DS-3E1105P-EI
 - 4 Ethernet ports
 - 4 PoE 100 Mbps ports
 - 1 Port 100 Mbps
 - Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
 - Supported PoE Standards: IEEE 802.3af, IEEE 802.3at
 - Metal
 - Fanless design
 - 6KV lightning protection
 - Monitoring of the correct functioning of the network
 - AF / AT cameras can reach 300m range in extended mode
 - Video Control
 - Video Preview
 - MAC Table Size: 2K
 - Switching capacity 1Gbps
 - Dimensions: 105mm × 27.6mm × 83.1mm
 - Weight: 0.22Kg

Data sheet
|
 Model  |
 DS-3E1105P-EI  |
|
|
 Network parameters  |
 Port number  |
 4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.  |
|
 Port type  |
 RJ45 port, full duplex, MDI / MDI-X adaptive  |
|
|
 Standard  |
 IEEE 802.3, IEEE 802.3u, and IEEE 802.3x  |
|
|
 Forwarding mode  |
 Store-and-forward switching  |
|
|
 Working mode  |
 Standard mode (default), Extend mode  |
|
|
 High priority ports  |
 Ports 1 and 2  |
|
|
 Ports for long-distance transmission  |
 Ports 1 to 4  |
|
|
 MAC address table  |
 2K  |
|
|
 Switching capacity  |
 1 Gbps  |
|
|
 Packet forwarding rate  |
 0.744 Mpps  |
|
|
 Internal cache  |
 768 Kbits  |
|
|
 PoE power supply  |
 Standard PoE  |
 Ports 1 to 4: IEEE 802.3af, IEEE 802.3at  |
|
 PoE power pin  |
 Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.  |
|
|
 PoE port  |
 Ports 1 to 4  |
|
|
 Max. Port power  |
 30 W  |
|
|
 PoE power budget  |
 60 W  |
|
|
 Software function  |
 Device maintenance  |
 Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.  |
|
 Typology display  |
 Support typology display.  |
|
|
 Port configuration  |
 Support rate, flow control, and switch configuration  |
|
|
 PoE function  |
 IEEE 802.3at / af device provides power supply.  |
|
|
 Device status alarm  |
 Support the device status, PoE_MAX and PoE status alarm.  |
|
|
 Network management  |
 Support client management.  |
|
|
 Port statistics  |
 Support port transmitting / receiving real-time rate statistics, 7-day transmitting / receiving peak rate statistics.  |
|
|
 General  |
 Shell  |
 Metal material, fan-free design  |
|
 Net Weight  |
 0.22 kg (0.49 lb)  |
|
|
 Dimension (L × H × D)  |
 105 mm × 27.6 mm × 83.1 mm (4.76 "× 3.47" × 1.09 ")  |
|
|
 Operating temperature  |
 0 ° C to 40 ° C (32 ° F to 104 ° F)  |
|
|
 Storage temperatures  |
 -40 ° C to 85 ° C (-40 ° F to 185 ° F)  |
|
|
 Operating humidity  |
 5% to 95% (no condensation)  |
|
|
 Storage humidity  |
 5% to 95% (no condensation)  |
|
|
 Power supply  |
 48 VDC, 1.35 A  |
|
|
 Max. Power consumption  |
 65 W  |
|
|
 Power source  |
 65 W  |
|
|
 Approval  |
 EMC  |
 FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)  |
|
 Safety  |
 UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE- LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)  |
|
|
 Chemistry  |
 CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)  |
|
