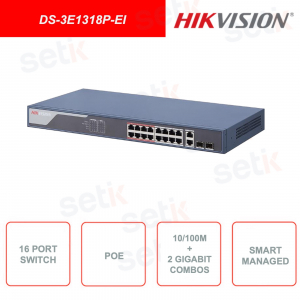

The DS-3E1318P-EI from Hikvision, is a 16 Port network switch.
 Features: 16 ports at 100Mbps of data transmission support PoE (IEEE 802.3af, IEEE 802.3at) , and there is a configuration with 2 Gigabit Combo - AF / AT cameras can reach the range of 300m in extended mode - Anti-protection 6KV lightning strikes - Durable metal design, no built-in cooling fan - Monitoring of proper system operation - Real-time push alarm - Video Control - Video preview - Ideal for configuring and managing video surveillance systems.
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NETWORK SWITCH 16 ETHERNET PORTS - 16 PoE 100Mbps Ports - 2 Gigabit Combo - HIKVISION - DS-3E1318P-EI

Ethernet switch -Hikvision - DS-3E1318P-EI
16 Ethernet Ports - 16 PoE 100 Mbps Ports - 2 Gigabit Combos - Mac Table Size Address 16K - Switching Capacity 7.2Gbps - 6KV Lightning Protection - Durable Metal Design - No built-in cooling fan - Video Control - Video Preview - Allows AF / AT cameras transmission up to 300m, activating the extended mode functionality - 4Mbit internal cache - 7.2Gbps switching capacity - Real-time push alarm - Monitoring of the correct functioning of the network - Ideal product for use in video surveillance systems.
Product details

- Network switch - Hikvision - DS-3E1318P-EI
 - 16 10 / 100Mbps Ethernet ports
 - 2 Gigabit Combos
 - Supported Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
 - Supported PoE Standards: IEEE 802.3af, IEEE 802.3at
 - Metal
 - MAC Adress Table 16K
 - Fanless cooling design
 - Dimensions: 440mm × 44mm × 220.8mm
 - Weight: 2.59 kg (5.71 lb)
 - Max. Power per door equal to 30W
 - Function to check the correct progress of the network
 - 6KV lightning protection
 - Video control and video preview
 - AF / AT cameras can reach a distance of 300m in extended mode
 - Push alarm in real time
 - Maximum power 250W

Data sheet
Model  | DS-3E1318P-EI  | |
Network parameters  | Port number  | 16 × 100 Mbps PoE RJ45 ports, and 2 × gigabit combos.  |
Port type  | RJ45 port, full duplex, MDI / MDI-X adaptive  | |
Standard  | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z  | |
Forwarding mode  | Store-and-forward switching  | |
Working mode  | Standard mode (default), Extend mode  | |
High priority ports  | Ports 1 to 8  | |
Ports for long-distance transmission  | Ports 1 to 16  | |
MAC address table  | 16 K  | |
Switching capacity  | 7.2 Gbps  | |
Packet forwarding rate  | 5.3568 Mpps  | |
Internal cache  | 4 Mbits  | |
PoE power supply  | Standard PoE  | Ports 1 to 16: IEEE 802.3af, IEEE 802.3at  |
PoE power pin  | Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.  | |
PoE port  | Ports 1 to 16  | |
Max. Port power  | 30 W  | |
PoE power budget  | 230 W  | |
Software function  | Device maintenance  | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.  |
Typology display  | Support typology display.  | |
Port configuration  | Support rate, flow control, and switch configuration  | |
PoE function  | IEEE 802.3at / af device provides power supply.  | |
VIP ports function  | Support data of ports in red area forwarded in priority.  | |
Link aggregation  | Support G1, G2 port static link aggregation  | |
Device status alarm  | Support the device status, PoE_MAX and PoE status alarm.  | |
Network management  | Support client management.  | |
Port statistics  | Support port transmitting / receiving real-time rate statistics, 7-day transmitting / receiving peak rate statistics.  | |
General  | Shell  | Metal material, fan-free design  |
Net Weight  | 2.59 kg (5.71 lb)  | |
Dimension (L × H × D)  | 440 mm × 44 mm × 220.8 mm (4.76 "× 3.47" × 1.09 ")  | |
Operating temperature  | -10 ° C to 55 ° C (14 ° F to 131 ° F)  | |
Storage temperatures  | -40 ° C to 85 ° C (-40 ° F to 185 ° F)  | |
Operating humidity  | 5% to 95% (no condensation)  | |
Storage humidity  | 5% to 95% (no condensation)  | |
Power supply  | 100 ~ 240 VAC, 50 / 60Hz, Max.2.5A  | |
Max. Power consumption  | 250 W  | |
Power source  | 250 W  | |
Approval  | EMC  | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)  |
Safety  | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE- LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)  | |
Chemistry  | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)  | |
