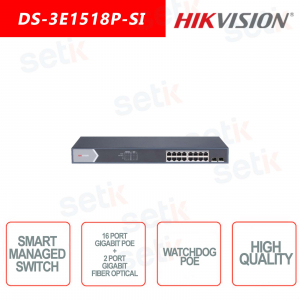

Hikvision Smart Switch 16 Gigabit PoE + 2 Gigabit ports

Hikvision Smart Switch 16 Gigabit PoE + 2 Gigabit ports

 
-35%

The DS-3E1518P-SI from Hikvision, is an intelligent network switch with 16 Gigabit PoE ports + 2 Gigabit fiber optic ports. The PoE ports are equipped with surge protection 6KV and Standard IEEE 802.3at / af. Network topology management, alarm push , network status monitoring . PoE Watchdog function to automatically detect and restart unresponsive cameras. The AF / AT camera can reach up to 300m in extended mode. Various layer 2 management protocols such as STP / RSTP, VLAN, link aggregation, SNMP, QoS etc.

Reference: DS-3E1518P-SI

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

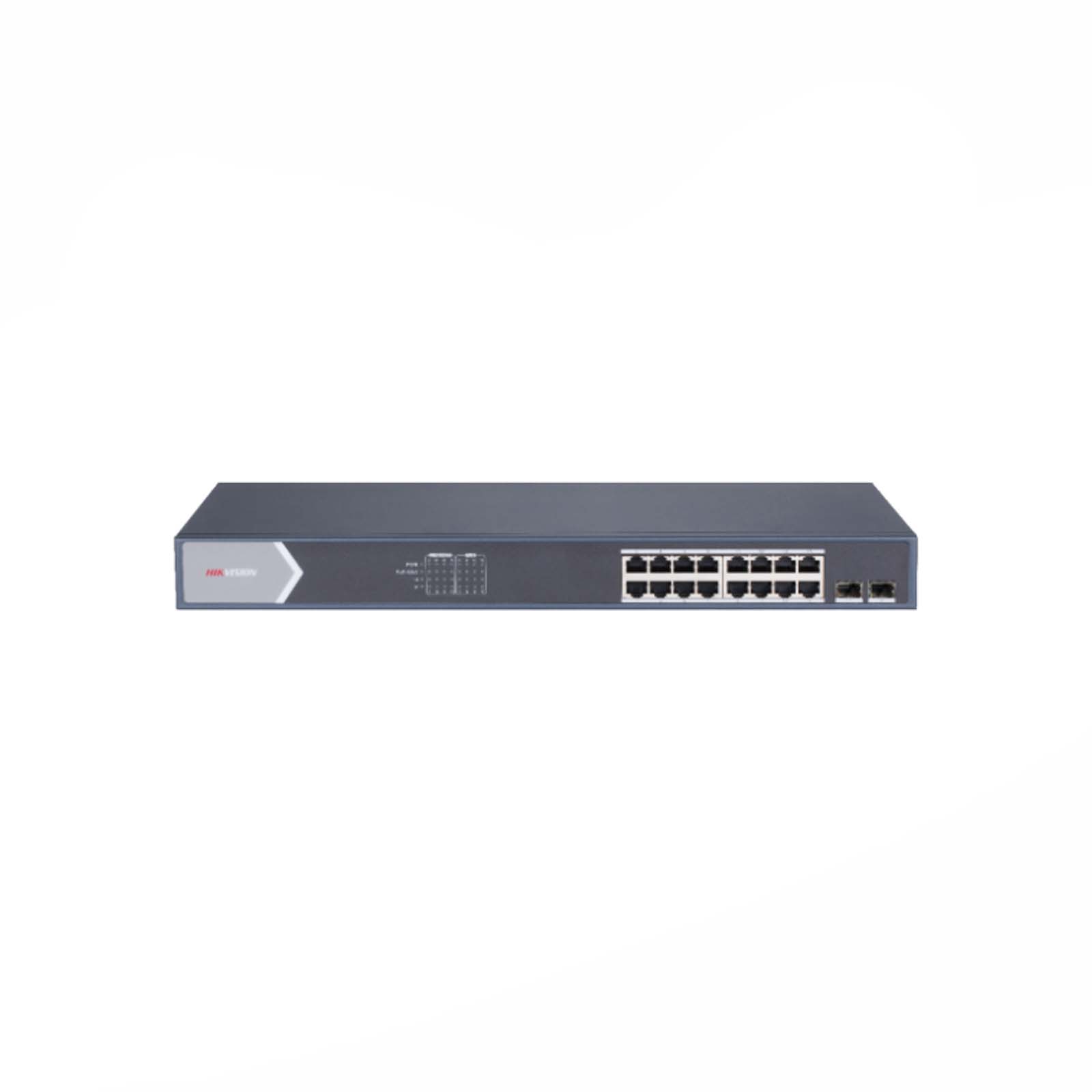

INTELLIGENT SWITCH 16 GIGABIT POE + 2 GIGABIT FIBER OPTIC DOORS - HIKVISION

Hikvision Smart switch - Hikvision
16 Gigabit PoE Ports + 2 Gigabit Fiber Optic Ports - PoE Watchdog Function - PoE Surge Protection - PoE Standard IEEE 802.3at / af - Various Layer 2 Management Protocols

Product details

Switch INTELLIGENTE - Hikvision
  • Smart switch - Hikvision
  • 16 Gigabit PoE ports + 2 Gigabit fiber optic ports
  • IEEE 802.3at / af standard for PoE ports
  • Network topology management
  • Push alarms
  • Network status monitoring
  • 6KV surge protection for PoE ports
  • The AF / AT camera can reach up to 300m in extended mode
  • PoE Watchdog to automatically detect and restart unresponsive cameras
  • Various layer 2 management protocols such as STP / RSTP, VLAN, link aggregation, SNMP, QoS, etc.

Data sheet

Model DS-3E1518P-SI
PoE Power Supply?
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin

End-span: 1/2 (-), 3/6 (+)

Mid-span: 4/5 (+), 7/8 (-)

8-pin power: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)

PoE Port PoE: Ports 1 to 16
Max. Port Power Port 1 to 16: 30W
PoE Power Budget 225 W
Network Parameters?
Port Number 16 × gigabit PoE port, and 2 × gigabit fiber optical port
Port Type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode

Standard mode (default)

Extend mode

MAC Address Table 8 K
Switching Capacity 36 Gbps
Packet Forwarding Rate 26,784 Mpps
Internal Cache 4.1 Mbits
Software Function?
Device Maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Configuration Port rate configuration, flow control, and ports enabling
Long Range Up to 300 m transmission
PoE Configuration

PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.

PoE enabling: Support

Port Rate-Limiting Rate-limiting for ingress and egress ports
Storm Control Storm control of unknown unicast, multicast and broadcast
Port Mirroring Support
Link Aggregation Static link aggregation supported
Port Isolation Ports in isolation group cannot communicate with each other.
QoS WRR and SP scheduling and port priority
VLAN 4094 VLANs
STP STP and RSTP protocols
SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
LLDP LLDP protocol supported for port configuration, global configuration and neighbor discovery
General
Shell Metal material
Net Weight 2,735 kg (6.03 lb)
Gross Weight 3.31 kg (7.30 lb)
Dimension (W × H × D) 440 mm × 220.8 mm × 44 mm (17.32 "× 8.69" × 1.73 ")
Operating Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage Temperature -40 ° C to 85 ° C (-40 ° F to 185 ° F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100 to 240 VAC, 50/60 Hz, Max. 4 A. 250 W
Max. Power Consumption 250 W
Power Consumption in Idle 25 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS / NZS CISPR 32: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005, AMD1: 2009, AMD2: 2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013, EN 62368-1: 2014 + A11: 2017)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No. 1907/2006)

Further details

No additional details

Download

Leaflet
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
