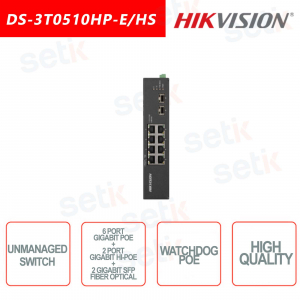

Hikvision 6 PoE + 2 Hi-PoE + 2 Gigabit SFP unmanageable switch

Hikvision 6 PoE + 2 Hi-PoE + 2 Gigabit SFP unmanageable switch
-35%

The DS-3T0510HP-E / HS by Hikvision, is an unmanageable switch with 6 Gigabit PoE RJ45 ports + 2 Gigabit Hi-PoE RJ45 ports + 2 Gigabit SFP fiber optic. Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab. For IEEE 802.3at / af Standard PoE Ports and 6 KV Surge Protection . For Hi-PoE Standard IEEE 802.3at / af / bt Ports. Long range transmission up to 300m and PoE Watchdog function to automatically detect and restart unresponsive cameras. Equipped with port isolation to enhance network security, Wired speed forwarding. Design a wider temperature range (-30 to 65 ° C) and reliable fanless, Solid metal shell high strength. Store-and-forward switching.



Reference: DS-3T0510HP-E/HS

Brand: Hikvision

EAN: 6941264038375

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NON-MANAGEABLE SWITCH 6 GIGABIT POE RJ45 PORTS + 2 GIGABIT HI-POE RJ45 PORTS + GIGABIT SFP FIBER OPTIC PORTS - HIKVISION

Hikvision Unmanageable Switch - Hikvision
6 Gigabit PoE RJ45 ports + 2 Gigabit Hi-PoE RJ45 ports + 2 Gigabit SFP fiber optic ports - 6KV surge protection for PoE ports - PoE watchdog function - Reliable fanless design - Store-and-forward switching - Long transmission radius up to 300 m

Product details

Switch non gestibile - Hikvision
  • Unmanageable Switch - Hikvision
  • 6 Gigabit PoE RJ45 ports + 2 Gigabit Hi-PoE RJ45 ports + 2 Gigabit SFP fiber optic
  • IEEE 802.3at / af / bt standard for Hi-PoE port (PoE output max. 90 W)
  • IEEE 802.3at / af standard for PoE ports (PoE output max. 30 W)
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard
  • 6KV surge protection for PoE ports
  • Long range transmission up to 300m
  • PoE Watchdog to automatically detect and restart unresponsive cameras
  • Port isolation to improve network security
  • Wired speed feed
  • Wider temperature design (-30 to 65 ° C)
  • Store-and-forward switching
  • Solid high strength metal shell
  • Reliable fanless design

Data sheet

Model DS-3T0510HP-E / HS
Network parameters
Port Number 6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports
Port type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Ports for long-distance transmission Ports 7 and 8
MAC address table 4 K
Switching capacity 20 Gbps
Packet forwarding rate 14.88 Mpps
Internal cache 1.5 Mbits
PoE Power Supply
Standard PoE

Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Ports 3 to 8: IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports 1, 2, 7 and 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply

PoE port Ports 3 to 8
Hi-PoE port Ports 1 and 2
Max. Port power

Ports 1 and 2: 90 W

Ports 3 to 8: 30 W

PoE power budget 110 W
Dialing function
Long range Ports 7 and 8: up to 300 m.
Port isolation Ports 1 to 8: port isolation mode to improve network security.
PoE watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
General
Shell Metal material, fan-free design
Gross weight 1.11 kg (2.45 lb)
Net weight 0.585 kg (1.29 lb)
Dimension (L × H × D) 197 mm × 114.2 mm × 42.2 mm (7.76 "× 4.50" × 1.66 ")
Operating temperature -30 ° C to 65 ° C (-22 ° F to 149 ° F)
Storage temperatures -40 ° C to 85 ° C (-40 ° F to 185 ° F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 to 57 VDC, 2.5 A Max.
Power consumption in idle <10 w="" td="">
Max. Power consumption 120 W
Power source 120 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 + A1: 2015); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CELVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006)
