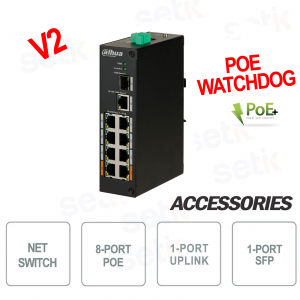

NETWORK SWITCH 8 POE WATCHDOG PORTS + 1 RJ-45 PORT + 1 SFP PORT - V2 VERSION - DAHUA
 Industrial PoE Watchdog VERSION V2 - Dahua switch8 PoE Watchdog Ports + 1 RJ-45 Port + 1 SFP Port - Fast transmissions 10/100 / 1000Mbps
Supported standards IEEE802.3 / IEEE802.3u / IEEE802.3X / IEEE 802.3ab / IEEE 802.3z - Supported PoE standards: IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
Product details
- PoE network switch - Dahua
 - 8 PoE Watchdog Ports + 1 Uplink Port + 1 SFP Port
 - Version V2
 - Fast transmissions at rates of 10/100/1000 Mbps
 - Supported standards: IEEE802.3 / IEEE802.3u / IEEE802.3X / IEEE 802.3ab / IEEE 802.3z
 - Supported PoE Standards: IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
 - Size: 150mm × 100mm × 30mm

Data sheet
| Model | PFS3110-8ET-96-V2 |
| Data Transmission Port | Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) Port 10: 1 × SFP 1000 Mbps (uplink)  |
| Power Supply | 48 V – 57 V DC |
| Operaing Temperature | –30 ° C to +65 ° C (-22 ° F to +149 ° F) |
| Operating Humidity | 5% - 95% (RH) |
| Power Consumption | Idling: 3 W. Full load: 96 W  |
| Capacity | 7.6 Gbps |
| Packet Forwarding Rate | 4.17 Mbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Table Size | 8K |
| Communication Standard | IEEE802.3 / IEEE802.3u / IEEE802.3X / IEEE 802.3ab / IEEE 802.3z |
| PoE Standard | IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt |
| PoE Power | Port 1-2 ≤ 90W, Port 3-8 ≤ 30W, total≤ 96W |
| Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V +), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m (820.21 ft) long distance PoE transmission |
| Lightning Protection | Air discharge: 8 kV Contact discharge: 6 kV  |
| ESD Protection | Common mode: 4 kV Differential mode: 2 kV  |
| Net Weight | 0.54 kg (1.03 lb) |
| Product Dimensions | 150mm × 100mm × 30mm (7.48 "× 3.94" × 1.18 ") |
