9 Ports Switch - 4 PoE + 1 Uplink + 4 SFP - V2 Version - Dahua

9 Ports Switch - 4 PoE + 1 Uplink + 4 SFP - V2 Version - Dahua
-57%

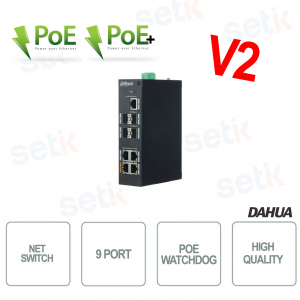

Dahua's PFS3409-4GT-96-V2 , is a 9 Port Watchdog PoE Network Switch (4 PoE + 1 Uplink + 4 SFP) with fast transmissions at rates of 10/100/1000 Mbps . Ideal for outdoor or harsh environments. Lightning protection, Metal structure and dual power backup. Version V2

Reference: PFS3409-4GT-96-V2

Brand: Dahua

EAN: 6923172524966

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SWITCH POE WATCHDOG 9 DOORS - 4 POE WATCHDOG - V2 VERSION - DAHUA

Dahua Technology PoE Watchdog 4 PoE Ports Ethernet Switch - Dahua
9 Ports (4 PoE + 1 Uplink + 4 SFP) - Fast transmissions 10/100/1000 Mbps
96W - 4 PoE ports - 4 Uplink ports - 1 RJ-45 Uplink port - V2

Product details

switch Ethernet Layer 2 rinforzato 9 Porte - Dahua
  • PoE Port Switch - Dahua
  • 4 Poe ports + 4 SFP ports + 1 RJ-45 Uplink port
  • Version V2
  • Dimension: 150mm × 110mm × 42mm
  • Data sheet
Model PFS3409-4GT-96-V2
Ethernet Port Port 1-4: 4 × RJ45 10/100/1000 Mbps (PoE)
Port 5-8: 4 × SFP 1000 Mbps (uplink)
Port 9: 1 × RJ45 10/100/1000 Mbps (uplink)
PoE Power Consumption Port 1 ≤ 90W, Port 2-4 ≤30W, Total≤120W
Power Consumption Idling: 2 W.
Full load: 96 W
Standard IEEE802.3 / IEEE802.3u / IEEE802.3X / IEEE 802.3az / IEEE 802.3ab
PoE Protocol IEEE 802.3af / IEEE 802.3at / Hi-PoE / IEEE 802.3bt
Power Supply Pin 1,2,4,5 (V +), 3,6,7,8 (V-)
Long Distance 250 m long distance PoE transmission
PoE Power Management Yes
PoE Watchdog Yes
Switching Capacity 33 Gbps
Packet Forwarding Rate 13.39 Mpps
Packet Buffer Memory 1.75 Mbit
Flow Control Enable by default
Working Temperature –30 ° C to +65 ° C (-22 ° F to +149 ° F)
Application Humidity 5% ~ 95% (RH)
Power Input 48V-57V DC
Lighting Protection Common mode 4 kV
Differential mode 2 kV
ESD Protection Air discharge 8 kV
Contact discharge 6 kV
Wall-mount Installation Yes
Anti-theft Lock Hole Yes
Weight 0.67 kg (1.48 lb)
Dimension 150mm × 110mm × 42mm (5.91 "× 4.33" × 1.65 ")
