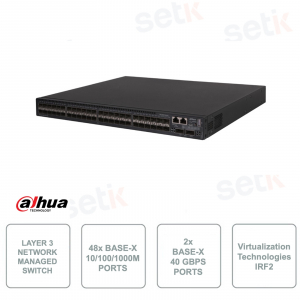

NETWORK SWITCH - LAYER 3 - MANAGED - 48 PORTS SFP 1/10GBPS + 2 PORTS SFP+ 40GBP - VERSION V2 - DAHUA - S6500-48XF2QF-V2

48 SFP Ports (1/10Gbps) + 2 SFP+ Ports (40Gbps) - RJ45 Console Port - Micro USB Port - Layer 3 - Manageable - MAC Table Size 128K - Packet Buffer Size 80Mbits - Switching Capacity 2.56Tbps - 2kV Lightning Protection - Supports double feed.
Product details

- Network switch - Dahua - S6500-48XF2QF-V2
 - Version V2
 - Layer 3
 - Manageable
 - 48 1/10Gbps SFP ports
 - 2 SFP+ 40Gbps ports
 - 1x RJ45 Console Port
 - 1x MicroUSB
 - Virtualization Technologies - IRF2
 - MAC address list capacity 128K
 - Packet Buffer Memory 80Mbits
 - Switching capacity 2.56Tbps
 - Operation from 0° to 45°
 -  Lightning Protection:
- Common mode: 2kV
- Differential mode: 1kV - Supports dual power supply: 100-240V AC 50-60Hz (Internal)
 -  Consumption:
- Full load: 231W (Single Power)
- Full load: 234W (Dual Power) - Dimensions: 440mm × 360mm × 43.6mm
 - Weight: 7.2kg

Data sheet
| S6500-48XF2QF-V2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware Features  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
optical port  |  48 x 1/10 Gbps Base-X ports  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
console port  |  1 × RJ45 console port  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | Two powers included  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supports dual power  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
100-240V AC 50-60Hz (Internal)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption  |  Idling: 39W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | 0°C to 45°C (32°F to 113°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature Operating Humidity  | 5%RH–95%RH  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures  | –40°C to 70°C (–40°F to 158°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Layers  | Layer 3  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Managed  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity  | 2.56Tbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate  | 1080Mpps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Memory  | 80 Mbits  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC TableSize  | 128K  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Amount  | 4094 Entries  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ARP Table  | 64K Entries  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IPv4 Routing Table  | 64K Entries  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QoS Queue  | 8 Entries  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Jumbo Frames  | 10000 Bytes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ACL Table  |  Admissions: 2K  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLANs  |  Port-based VLANs  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VxLAN  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ring network protocol  |  STP/RSTP/MSTP/PVST  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP  |  DHCP clients  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port Aggregation  |  10GE/40GE port aggregation  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP routing  |  Static routing  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IPV6  |  Neighbor Discovery (ND)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirroring  |  Flow mirroring  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multicast  |  IGMP snooping v1/v2/v3 and MLD snooping v1/v2  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IRF extension  |  IRF2  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security  |  Hierarchical user management and password protection  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ACLs/QoS  |  Layer 2 to layer 4 packet filtering  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System Maintenance  |  Debugging information output  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Management  |  Command line interface (CLI) configuration  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HAS  |  1+1 redundancy for fan trays  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thunderproof  |  Common mode: 2kV  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight  | 7.2kg (15.87lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 8.95kg (19.73lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  |
 440mm × 360mm × 43.6mm (17.32" × 14.17" × 1.72")  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 580mm × 562mm × 125mm (22.83" × 22.12" × 4.92")  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
