The LR2110-8ET-120-V2 by Dahua is a 10-port network switch with 8 ePoE/PoE ports + 1 Uplink and 1 SFP with fast transmissions up to 800MT and speeds of 10 / 100 / 1000 Mbps. Ideal for outdoor systems. inside industrial buildings even in the presence of adverse environmental conditions (high or low temperatures) LR2110-8ET-120-V2
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

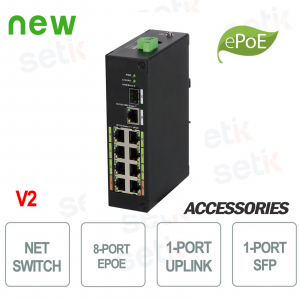

NETWORK SWITCH 8 EPOE PORTS + 1 UPLINK PORT + 1 SFP PORT - DAHUA

8 ePoE Ports + 1 Uplink Port + 1 SFP Port - Fast transmissions 10 / 100 / 1000Mbps
Distance up to 800 Meters! - Supported standards IEEE802.3af, IEEE802.3at, Hi-PoE
Product details

- Unmanageable EPoE network switch (L2) - Dahua
- 8 ePoE Ports + 1 Uplink Port + 1 SFP Port:
- - 8 ports 10/100 Base-T (ePoE/PoE/PoE+/Hi-PoE)
- - 1 10/100/1000 Base-T port
- - 1 1000 Base-X Fiber SFP port
- PoE transmission over 800 meters over 10Mbps Ethernet cable, or 300 meters at 100Mbps via ePoE technology (requires ePoE camera)
- ePoE technology: long-distance transmissions between the IP camera and the network switch via Cat5e cable or coaxial (adapters required)
- Fast transmissions at rates of 10 / 100 / 1000 Mbps
- Supported standards: IEEE802.3af, IEEE802.3at, Hi-PoE
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- MAC auto study and aging, 8K MAC address list capacity
- Compatible with Fiber Modules: PFT3950 - PFT3960 - PFT3970
- Power supply included 48V~57V DC (up to 120W)
- Dimensions: 150mm×100mm×42mm
- Lightning protection
Data sheet
| Model | LR2110-8ET-120-V2 |
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 10/100Mbps |
| Ethernet Port Uplink Speed | 10/100/1000Mbps |
| Optical Port Uplink Speed | 1Gbps |
| Description of Function Slots | Port 1-8: 8 × RJ-45 10/100 Mbps Port 9: 1 × RJ-45 10/100/1000 Mbps Port 10: 1 × SFP 1000Mbps |
| Power Supply | External power supply: 54 VDC, 2.22 A |
| Operating Temperature | –30 °C to +65 °C (+22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Power Consumption | Idling: 3.2W |
| Performance | |
| Layers | Layer 2 |
| Management Type | No |
| Smart Managed Switches | No |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Packet Buffer Size | 2.75 Mbit |
| Jumbo Frames | 9216 Bytes |
| MAC Table Size | 8K Bytes |
| Communication Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab/z,IEEE802.3X |
| Features | |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power | Port 1.5 ≤90W Port 2,3,4,6,7,8 ≤30W Total ≤120W |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| ePoE | Yes |
| Long Distance PoE Transmission | Yes |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV Differential mode: 2 kV |
| Net Weight | 0.6 kg (1.32 lb) |
| Gross Weight | 1.9 kg (4.18 lb) |
| Product Dimensions | 150mm × 100mm × 42mm (5.91" × 3.94" × 1.65") (L × W × H) |
| Packaging Dimensions | 265mm × 238mm × 76mm (10.43" × 9.37" × 1.65") (L × W × H) |
| Casing Material | Iron |
| Installation | Rack mount; DIN rail mount guides |
| Certifications | THERE IS; FCC |
| LED Indicator | |
| Working Mode | LED Indicator |
| IEEE mode | Normally on |
| E100 | On for 3 seconds, off for 1 second |
| E10 | On for 1 second, off for 1 second |
