Hikvision's DS-3E3728-H is a 24×10/100/1000BASE-T port (including 8×combo interfaces), 4×10G/1G BASE-X SFP+ port network switch
Integrate 1 expansion slot, 2 slots with fan support, 2 slots for power module - Packet forward rate: 216Mbps - Overall switching capacity: 288Gbps - High quality product.
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

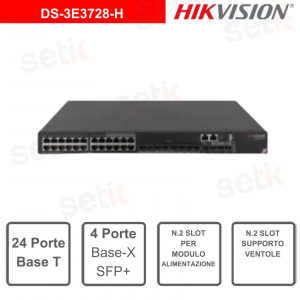

HIKVISION NETWORK SWITCH - 24 BASE-T PORTS + 4 10G/1G BASE-X SFP+ PORTS / DS-3E3728-H

24×10/100/1000BASE-T ports (including 8×combo interfaces), 4×10G/1G BASE-X SFP+ ports 1 expansion slot, 2 fan tray slots, 2 power module slots - Total switching capacity 288Gbps - Packet Forwarding Rate: 216Mbps - 1G/10G/40G port aggregation - Dimensions: 440×360×43.6 - Net weight less than 6.7Kg.
Product details
- Network Switch - Hikvision - DS-3E3728-H
 - 24 Base-T ports (of which 8x Combo interface)
 - 4 Ports 10G/1G SFP+
 - 1 expansion slot
 - 2 fan tray slots
 - 2 slots for power module
 - Switching Capcity: 288Gbps
 - Forwarding rate 216Mbps
 - Diet:
AC: 100V?240V AC?50/60Hz
DC: 48V -60V DC - Dimensions: 440×360×43.6
 - Item net weight: 6.7kg
 - Operating temperature: 0ºC to 45ºC (32°F to 113°F)

Data sheet
| Service ports | 24×10/100/1000BASE-T ports (including 8×combo interfaces), 4 ×10G/1G BASE-X SFP+ ports | ||
| Switching capacity | 288Gbps | ||
| Packet forwarding rate | 216 Mpps | ||
| Dimensions (W×D×H)(mm) | 440×360×43.6 | ||
| Input voltage | AC:100V~240V AC,50/60Hz DC: -48V~-60V DC | ||
| Power consumption (full configuration) | Single AC input: 87W Dual AC inputs: 91W Single DC input: 88W Dual DC inputs: 95W  |
||
| Weight | ≤6.7kg | ||
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) | ||
| Operating humidity | 5% RH to 95% RH, non-condensing | ||
| Layer 2 ring network protocol | STP/RSTP/MSTP | ||
| VLANs | Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ  |
||
| Port features | IEEE802.3x flow control (full duplex) Storm control based on port rate percentage PPS/BPS-based storm against  |
||
| IP routing | Static routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6  |
||
| Multicast | IGMP Snooping /MLD Snooping、Multicast VLAN | ||
| SDN/Openflow | OpenFlow 1.3 | ||
| VXLAN | VXLAN Layer 2 switching VXLAN routing switching VXLAN gateway  |
||
| Link aggregation | 1G/10G/40G port aggregation Static aggregation/Dynamic aggregation Cross-device aggregation  |
||
| Mirroring | Port mirroring RSPAN Traffic mirroring  |
||
| Stacks | Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking  |
||
| ACL | Packet filtering at L2~L4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses Time range-based ACL VLAN-based ACL Bidirectional ACL  |
||
| Security | Hierarchical user management and password protection Guest VLAN 802.1X authentication, centralized MAC authentication RADIUS authentication MAC address learning limit Port isolation IP Source guard Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks  |
IP/Port/MAC binding | |
| QoS | 802.1p DSCP remarking | Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR Committed access rate (CAR) Packet redirection Port rate limit (receiving and transmitting)  |
|
| Management and maintenance | Configuration through CLI, Telnet, and console port Ping, Tracert Loading and upgrading through XModem/FTP/TFTP SNMPv1/v2/v3 and Web-based NMS Remote monitoring (RMON) alarm, event, and history recording NTP  |
