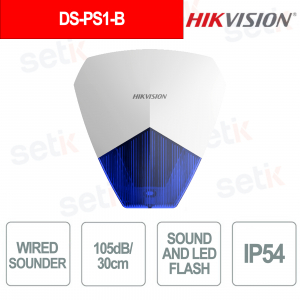

DS-PS1-B 105dB IP54 Wired Siren with LED for Security Systems - Hikvision

DS-PS1-B 105dB IP54 Wired Siren with LED for Security Systems - Hikvision

-35% New

DS-PS1-B - The wired siren represents a reliable solution for security systems, designed to guarantee powerful and immediate acoustic signals thanks to a sound level of up to 105 dB . Powered directly from the control panel via 8-16 VDC voltage , it is ideal for both indoor and outdoor installations thanks to IP54 protection against dust and water splashes. The device integrates separately configurable acoustic signaling and LED flashing , offering greater operational flexibility. The resistant PC+ABS material structure and the optimized design ensure durability and simple and quick installation , making it perfect for professional systems. - Hikvision

Technical Data Sheet

Reference: DS-PS1-B

Brand: Hikvision

EAN: 6941264081241

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-PS1-B | WIRED SOUNDER

Hikvision

The Hikvision DS-PS1-B wired siren is a professional solution for security systems, designed to offer immediate warnings thanks to a powerful sound of up to 105 dB . Powered by a control panel with 8-16 VDC voltage , it guarantees reliability in both indoor and outdoor environments thanks to IP54 protection against dust and splashes. The device integrates separately configurable acoustic signaling and LED flashing , improving alarm management. Made of resistant PC+ABS material , it ensures durability over time, while the optimized design allows for simple and quick installation for professional applications.

Main specifications:

- Sound power 105 dB: loud and immediate acoustic signal for any alarm situation

- IP54 protection: dust and splash resistant, ideal for indoor and outdoor use

- Independent LED and sound: separate configuration for flexible alert management

- 8-16 VDC power supply: compatible with wired control panels for easy integration

- Durable PC+ABS material: solid and long-lasting structure

- Quick and easy installation: designed to reduce assembly time and complexity

Further details

Sound power:
The siren guarantees an acoustic level of up to 105 dB at 30 cm , ensuring a loud and immediate signal, ideal for professional security systems and both internal and external environments.
Independent LED and sound :
It integrates separately configurable acoustic signalling and LED flashing , offering greater flexibility in alarm management and adapting to different operational needs .
Power supply:
Compatible with wired control panels thanks to the 8-16 VDC power supply , it allows for simple and reliable integration into existing security systems .
Material :
Built in resistant PC+ABS , it guarantees high durability, protection over time and resistance to external agents for use even in difficult environments .
Easy installation:
Designed with an optimised structure for quick and easy installation , it reduces assembly times and makes the work of professional installers easier .

Technical data sheet

DS-PS1-B
General
Weight 185g
IP rate IP54
Dimensions (WxHxD) 140*134*33mm
Shell material PC+ABS
Color Blue
Audio
Sound pressure 105dB/30cm
Electrical characteristics
Power supply 8 to 16 VDC
Typical voltage 12 VDC
Power consumption Maximum current: 70mA@12VDC Quiescent current: 45mA @12VDC
Operation humidity 10% - 90%
Operation temperature -20°C - +60°C
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
