DS-PDVC12PF-EG2-WE - The sensor is a PIR detector with an integrated camera designed to provide advanced security and visual alarm verification. With a detection range of up to 12 m with an 85.9° angle and pet immunity up to 30 kg , it offers reliable performance in residential and commercial environments. It integrates SEC (Smart Environmental Control) technology with digital processing and 3D optics , ensuring accuracy and reducing false alarms. The video verification system with 24/7 color images and integrated memory allows for complete control, while secure wireless communication with AES-128 encryption and app configuration ensure maximum flexibility and ease of use. - Hikvision

Technical Data Sheet

Reference: DS-PDVC12PF-EG2-WE

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

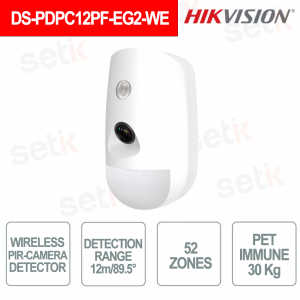

DS-PDVC12PF-EG2-WE | WIRELESS PIR-CAMERA DETECTOR

Hikvision

The Hikvision DS-PDPC12PF-EG2-WE detector is a wireless PIR sensor with integrated camera designed to offer advanced security with visual alarm verification. Thanks to a detection range of up to 12 m with an 85.9° angle and animal immunity up to 30 kg , it guarantees reliable performance while reducing false alarms. It integrates SEC technology with advanced digital processing and 3D optics , ensuring accuracy and stability even in variable environmental conditions. The 24/7 color image acquisition system with integrated memory allows complete control, while secure wireless transmission with AES-128 encryption and app configuration make the device flexible and easy to manage.

Main specifications:

- PIR detection with built-in camera: visual alarm verification for added security

- 12m coverage and 85.9° angle: large monitoring area with high accuracy

- Pet immunity up to 30 kg: reduction of false alarms in domestic environments

- SEC technology with 3D optics: advanced processing for reliable performance

- 24/7 color imaging with built-in memory: continuous recording and verification of events

- AES-128 wireless transmission and app management: high security and easy remote control

Further details

Detection Performance:
The sensor uses an advanced PIR detection system with integrated video verification , with a range of up to 12 m , a 90° detection angle and 52 detection zones , ensuring high precision and reliability even in the presence of variable movements, with animal immunity up to 30 kg to reduce false alarms.
Features :
It integrates advanced digital processing with SEC technology and sealed optics , as well as front and rear tamper protection and environmental indicators, ensuring operational stability and protection against tampering.
Video :
It features a built-in camera with 24/7 color JPEG images , resolution up to 640×480 and white light illumination up to 12 m , allowing immediate visual verification of alarms even in low light conditions.
Interface:
Equipped with status LEDs and a simplified activation and configuration system, it allows intuitive management and rapid integration into the security system.
Transmission :
It uses 868MHz two-way wireless CAM-X technology with AES-128 encryption , with a range of up to 800m , ensuring secure, stable and interference-resistant communications.
Power supply:
Powered by 3V CR123A batteries (3 units) , it offers up to 6 years of autonomy , ensuring long life and reduced maintenance over time.

Technical data sheet

DS-PDVC12PF-EG2-WE
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 72.2mm × 120.5mm × 56.7mm
Weight 20g
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional wall & ceiling accessory
Detection Performance
Detection Method Passive Infrared;Video Verification
Detection Range 12 m
Detection Angle 90°
Detection Zones 52
Detectable Speed 0.3~2m/s
Sensitivity High;Auto;Pet
Pet Immunity 30kg
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Features
Digital Processing Support
Sealed Optics Support
Tamper Protection Front
Environment Temperature Indicator Support
Signal Strength Indicator Support
Video
Field Angle 88.4°(H), 68.0°(V)
Image Type JPEG
Resolution 160*120;320*240;640*480
Fill Light White Light
Fill Range 12m
Day/Night Switch Color

Interfaces

Alarm Output Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology CAM-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 800m
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life Up to 6 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 3
Typical Voltage 3V
