DS-1273ZJ-DM30-B Waterproof Aluminum Dome Camera Wall Mount - Hikvision

DS-1273ZJ-DM30-B Waterproof Aluminum Dome Camera Wall Mount - Hikvision

 
-35%

DS-1273ZJ-DM30-B - The wall bracket is designed for mounting dome cameras , offering a robust and professional solution for video surveillance systems. Made of aluminum alloy with a sprayed surface treatment , it integrates a waterproof design and a cap designed to facilitate cable passage and management . With dimensions of Ø209 × 243 × 326 mm , a weight of 2.5 kg and a maximum load capacity of 3 kg , it ensures stability and reliability when wall mounting. For outdoor installations, the use of waterproof rubber is required. Hikvision

Technical Data Sheet

Reference: DS-1273ZJ-DM30-B

Brand: Hikvision

EAN: 6954273634308

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

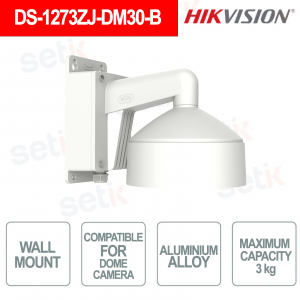

DS-1273ZJ-DM30-B – WALL BRACKET

Hikvision

The Hikvision DS-1273ZJ-DM30-B wall bracket is designed for professional mounting of dome cameras , offering robustness and reliability in video surveillance systems. Made of aluminum alloy with a sprayed surface treatment , it integrates a waterproof design and a cap that facilitates the passage of cables . The dimensions of Ø209 × 243 × 326 mm , the weight of 2.5 kg and the maximum load capacity of 3 kg guarantee stability during wall installation. For outdoor use, the use of waterproof rubber is required.

Main features:

  • Type: Dome Wall Bracket
  • Material: Aluminum alloy
  • Protection: Waterproof design
  • Dimensions: Ø209 × 243 × 326 mm
  • Weight: 2.5 kg
  • Capacity: 3 kg

Further details

✅ Compatibility:
The Hikvision DS-1273ZJ-DM30-B is designed as a wall bracket for dome cameras , offering dedicated support for professional installations in video surveillance systems.
✅ Material :
Made of aluminum alloy with sprayed surface treatment , it features a solid and resistant structure, designed to ensure stability during camera mounting.
✅ Protection :
It integrates a waterproof design ; for outdoor installations the manufacturer specifies the need to use waterproof rubber , so as to ensure adequate protection in outdoor use.
✅ Maximum capacity:
Supports a maximum load of 3 kg ; the installation wall must be able to support more than 3 times the combined weight of the camera and bracket for proper fixing.

Technical data sheet

DS-1273ZJ-DM30-B
Parameters
Weight 2500g
Appearance Hikvision White
Material Aluminum Alloy
Dimensions Φ209×243×326mm
Description Wall Mounting Bracket for Dome Camera
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
