DS-1331HZ-W - is an outdoor housing for video surveillance cameras , designed to ensure stable operation even in harsh environmental conditions. It integrates a fan, wiper and automatic temperature control , with operation from -20 °C to +60 °C . The aluminum alloy structure with glass window offers IP67 protection , while the 24 V AC power supply supports internal ventilation and cleaning systems. The dimensions are 445 × 140 × 169 mm and the weight is approximately 1.9 kg . Hikvision

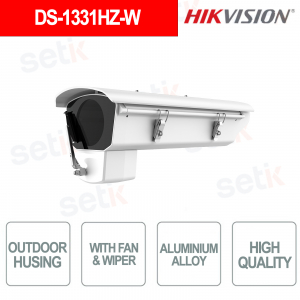

DS-1331HZ-W – OUTDOOR CASE

The Hikvision DS-1331HZ-W is an outdoor housing for video surveillance cameras designed to operate in harsh climatic conditions, with IP67 protection against water and dust. It integrates a fan, wiper and automatic temperature control , ensuring stable operation from -20 °C to +60 °C . The main body is made of aluminum alloy with a glass window, 24 V AC power supply and support for high temperature environments. The dimensions are 445 × 140 × 169 mm and the weight is approximately 1.9 kg , with a side cover design for easy installation and maintenance.
Main features:
- Protection: IP67
- Temperature: -20 °C / +60 °C
- Equipment: fan + windshield wiper
- Material: Aluminum alloy
- Power supply: AC 24 V
Further details
The Hikvision DS-1331HZ-W is an outdoor housing for video surveillance cameras prepared for various Hikvision mounting configurations; the manufacturer specifies installation compatibility with the DS-1293ZJ for wall mounting , DS-1214ZJ for horizontal pole mounting and DS-1269ZJ for pendant mounting , offering greater flexibility in CCTV system integration.
The DS-1331HZ-W enclosure features a main body made of aluminum alloy and a front glass window ; it also integrates a double-latch locking system made of stainless steel and offers IP67 protection , features designed for professional use in outdoor video surveillance installations.
Technical data sheet
| DS-1331HZ-W | |
| Parameters | |
| Weight | 1900g |
| Material | Main: aluminum alloy,Window: glass |
| Dimensions | 445×140×169 |
| Feature | With fan, wiper, suitable for high temperature environment |
| Description | Outdoor Housing |
| Working temperature | -20℃ ~ +60℃, Humidity 95% or less (non-condensing) |
| Automatic temperature control range | Fan on: 45℃±5℃ ,Fan off: 35°±5℃, |
| Power | AC24V |
| Power consumption | Fan: 4W; Wiper: 4W |
| Matching power supply | AC24V 2A power pack |
