The DS-1707ZJ-Y-AC is a wall mount for explosion-proof bullet cameras , designed for professional, high-resistance installations. It is made of 316L stainless steel with an anti-corrosion surface treatment and features a waterproof design for outdoor use. With dimensions of 562.5 × 180 × 309 mm and a weight of 7.02 kg , it supports a maximum load of up to 50 kg , providing a robust structure for industrial video surveillance applications. Hikvision

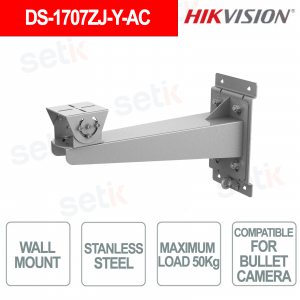

DS-1707ZJ-Y-AC – WALL BRACKET FOR BULLET CAMERA

The Hikvision DS-1707ZJ-Y-AC is a wall bracket for explosion-proof bullet cameras , made of durable 316L stainless steel with anti-corrosion surface treatment and waterproof design . It is designed for professional installations, measuring 562.5 × 180 × 309 mm and weighing 7.02 kg . The structure supports a maximum load of 50 kg , offering high robustness for industrial and outdoor video surveillance applications.
Main features:
- Material: 316L stainless steel
- Design: Waterproof
- Dimensions: 562.5 × 180 × 309 mm
- Weight: 7.02 kg
- Maximum load: 50 kg
Further details
The Hikvision DS-1707ZJ-Y-AC(OS) bracket is made of sturdy 316L stainless steel with anti-corrosion surface treatment , a structure designed to ensure high resistance in professional installations of explosion-proof bullet cameras.
Technical data sheet
| DS-1707ZJ-Y-AC | |
| Parameters | |
| Appearance | Silver Moon Grey |
| Material | Stainless steel 316L |
| Dimensions | 562.5 mm × 180 mm × 309 mm (22.15" × 7.09" × 12.17") |
| Weight | 7.02 kg (15.48 lb.) |
