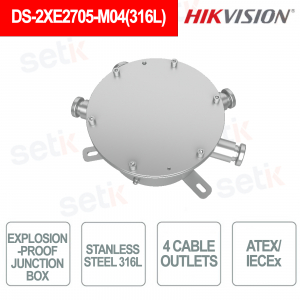

DS-2XE2705-M04(316L) - is an explosion-proof junction box designed for video surveillance systems in critical environments, made of 316L stainless steel with anti-corrosion surface treatment . It integrates 4 cable outlets and offers high protection against external agents thanks to the IP66 and IP68 ratings. It also has ATEX and IECEx certifications for explosion-proof applications and has dimensions of 323.4 × 219.5 × 109.1 mm , with a weight of approximately 5.9 kg . Hikvision
Technical data sheet not available
DS-2XE2705-M04(316L) – EXPLOSION-PROOF JUNCTION BOX

The Hikvision DS-2XE2705-M04(316L) is an explosion-proof junction box made of 316L stainless steel with anti-corrosion surface treatment, designed for video surveillance installations in critical environments. It has 4 cable outlets , IP66/IP68 protection and ATEX and IECEx certified explosion-proof performance. It has dimensions of 323.4 × 219.5 × 109.1 mm , a weight of approximately 5.9 kg and operating conditions from -40 °C to +60 °C .
Main features:
- Material: 316L stainless steel
- Cable outputs: 4
- Protection: IP66 / IP68
- Certifications: ATEX / IECEx
- Dimensions: 323.4 × 219.5 × 109.1 mm
- Weight: about 5.9 kg
- Temperature: -40 °C / +60 °C
Further details
The Hikvision DS-2XE2705-M04(316L) is made of 316L stainless steel with anti-corrosion surface treatment , a configuration designed to offer high resistance in professional installations and in the most demanding environments.
It integrates 4 cable outputs , designed to organize the passage and connection of wiring within video surveillance systems installed in areas that require explosion-proof components.
Designed to operate in a range between -40°C and +60°C , with humidity up to 95% non-condensing , making it suitable for environmental conditions characterised by particularly low or high temperatures.
Technical data sheet
| DS-2XE2705-M04(316L) | |
| Parameters | |
| Color | HIK-CS-JS |
| Material | 316L stainless steel |
| Dimensions | 323.4 mm × 219.5 mm × 109.1 mm (12.73" × 8.64" × 4.30") |
| Package Dimension | 372 mm × 372 mm × 181 mm (14.65" × 14.65" × 7.13") |
| Weight | Approx. 5.9 kg (13.0 lb.) |
