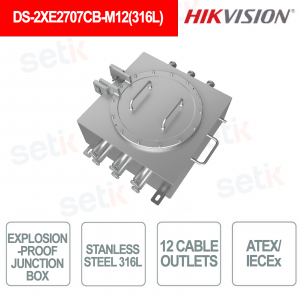

DS-2XE2707CB-M12(316L) Explosion-Proof 316L Stainless Steel IP68 Enclosure with Integrated Power Supply - Hikvision

DS-2XE2707CB-M12(316L) Explosion-Proof 316L Stainless Steel IP68 Enclosure with Integrated Power Supply - Hikvision

 
-35% New

DS-2XE2707CB-M12(316L) - is an explosion-proof control box with integrated power supply , designed for professional installations in critical environments. Made of 316L stainless steel with anti-corrosion surface treatment , it has 12 cable outputs , ATEX and IECEx certifications and IP66/IP68 protection. It integrates a power supply with AC input 100-240 V and DC output 12 V / 2 A , operating from -40 °C to +60 °C . Hikvision

Technical Data Sheet

Reference: DS-2XE2707CB-M12(316L)

Brand: Hikvision

EAN: 6936422161859

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2XE2707CB-M12(316L) – EXPLOSION-PROOF JUNCTION BOX WITH BUILT-IN POWER SUPPLY

Hikvision

The Hikvision DS-2XE2707CB-M12(316L) is an explosion-proof control box with integrated power supply , made of 316L stainless steel with anti-corrosion surface treatment. It has 12 cable outlets , ATEX and IECEx certifications and IP66/IP68 protection. It integrates a power supply with AC 100–240 V input and DC 12 V / 2 A output, operates from -40 °C to +60 °C and weighs approximately 54.5 kg .

Main features:

  • Material: 316L stainless steel
  • Cable outputs: 12
  • Certifications: ATEX / IECEx
  • Protection: IP66 / IP68
  • Power supply: AC 100–240 V → DC 12 V / 2 A
  • Temperature: -40 °C / +60 °C

Further details

✅ Material :
The Hikvision DS-2XE2707CB-M12(316L) is made of 316L stainless steel with anti-corrosion surface treatment , a configuration designed for use in industrial environments and explosion-proof applications.
✅ Installation :
The control box integrates a power supply with nominal AC 100–240 V input and DC 12 V / 2 A output ; for the passage of cables with internal electronic devices, Hikvision prescribes the use of certified cable glands sealed with sealing compound .
✅ Cable outputs :
It features 12 cable outlets , offering multiple dedicated points for passing and organizing the necessary wiring inside the explosion-proof control box.
✅ Certifications:
The device offers ATEX and IECEx certified explosion-proof performance , with Ex db IIC T6 Gb / Ex tb IIIC T80°C Db classification; the enclosure also features IP66 and IP68 protection according to IEC 60529-2013 .
✅ Temperature :
P Designed to operate in an operating range of -40°C to +60°C , with relative humidity up to 95% non-condensing , a feature suitable for particularly demanding environmental conditions.

Technical data sheet

DS-2XE2707CB-M12(316L)
Parameters
Weight Approx. 54.5 kg (120.2 lb.)
Power Rated input: AC 100 ~ 240V Rated output: DC 12V / 2A
Material 316L stainless steel
Dimensions Overall Dimension: 534.0 mm × 506.2 mm × 236.5 mm (21.02" × 19.93" × 9.3"), Internal Dimension: 400.0 mm × 400.0 mm × 165.0 mm (15.75" × 15.75" × 6.5"),with 1 power adapter
Package Dimension 642 mm × 642 mm × 340 mm (25.28" × 25.28" × 13.39")
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
