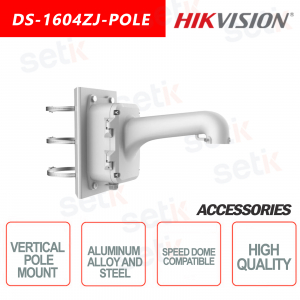

Vertical pole mounting bracket for Speed Dome Hikvision DS-1604ZJ-POLE . In aluminum alloy and steel, white color, bracket for pole mounting.
DS-1604ZJ-POLE | VERTICAL SUPPORT FOR POLE MOUNTING WITH ALUMINUM AND STEEL JUNCTION BOX - HIKVISION
Vertical support for pole mounting with junction box, in aluminum and steel - Hikvision
Features:
- Vertical bracket for pole mounting with the junction box
- Aluminum alloy and steel material with spray surface treatment
- Adjustable diameter from 67 mm to 127 mm
- Support bottom output and rear output
- The safety rope hook makes it easy to install the speed dome
Note:
- The bracket must be installed on the flat surface.
- Waterproof rubber is required for outdoor application
- The wall must be able to support at least 3 times the total weight of the speed dome and bracket.
- The maximum load of the bracket is 10 kg.
Data sheet
| DS-1604ZJ-POLE | |
| Parameters | Vertical Pole Mounting Bracket for Speed Dome |
| Color | Hikvision white |
| Material | Aluminum Alloy and Steel |
| Dimension | 355.5 mm × 261.8 mm × 170.7 mm (14 "× 10.31" × 6.72 ") |
| Weight | 3.8 Kg (8.38 lb.) |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
