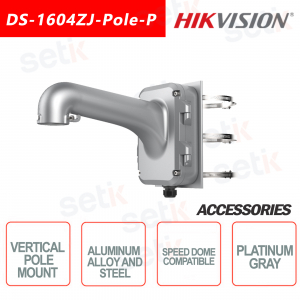

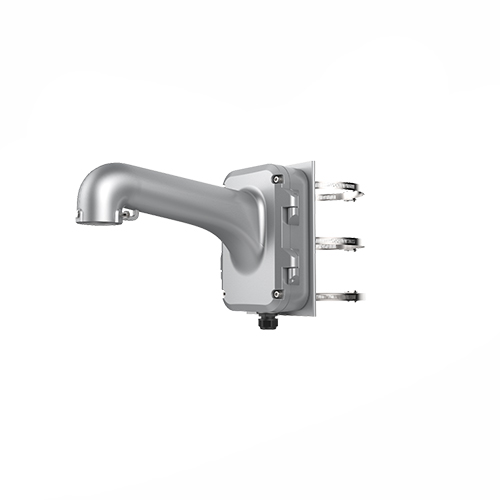

DS-1604ZJ-Pole-P | VERTICAL SUPPORT FOR POLE MOUNTING WITH ALUMINUM AND STEEL JUNCTION BOX - HIKVISION
Vertical support for pole mounting with junction box, in aluminum and steel - Platinum Gray - Hikvision
Features:
- Vertical pole mounting with junction box
- Aluminum alloy and steel with surface spray treatment
- Adjustable diameter from 67 mm to 127 mm
- Bottom exit and rear exit
- The safety rope hook makes it easy to install the speed dome
Note:
- The stand must be installed on the flat surface.
- Waterproof rubber is required for outdoor application.
- The wall must be able to support at least 3 times the total weight of the speed dome and the mount.
- The maximum load capacity of the holder is 10 kg (22 lb.).
Data sheet
| DS-1604ZJ-POLE-P | |
| Parameters | Vertical Pole Mount for Speed Dome |
| Color | Platinum Gray |
| Material | Aluminum Alloy and Steel |

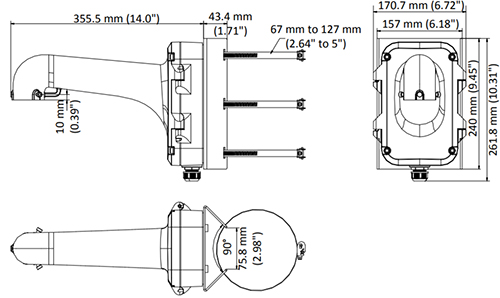

| Dimension | 355.5 mm × 261.8 mm × 170.7 mm (14 "× 10.31" × 6.72 ") |
| Weight | 3.8 kg (8.38 lb.) |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
