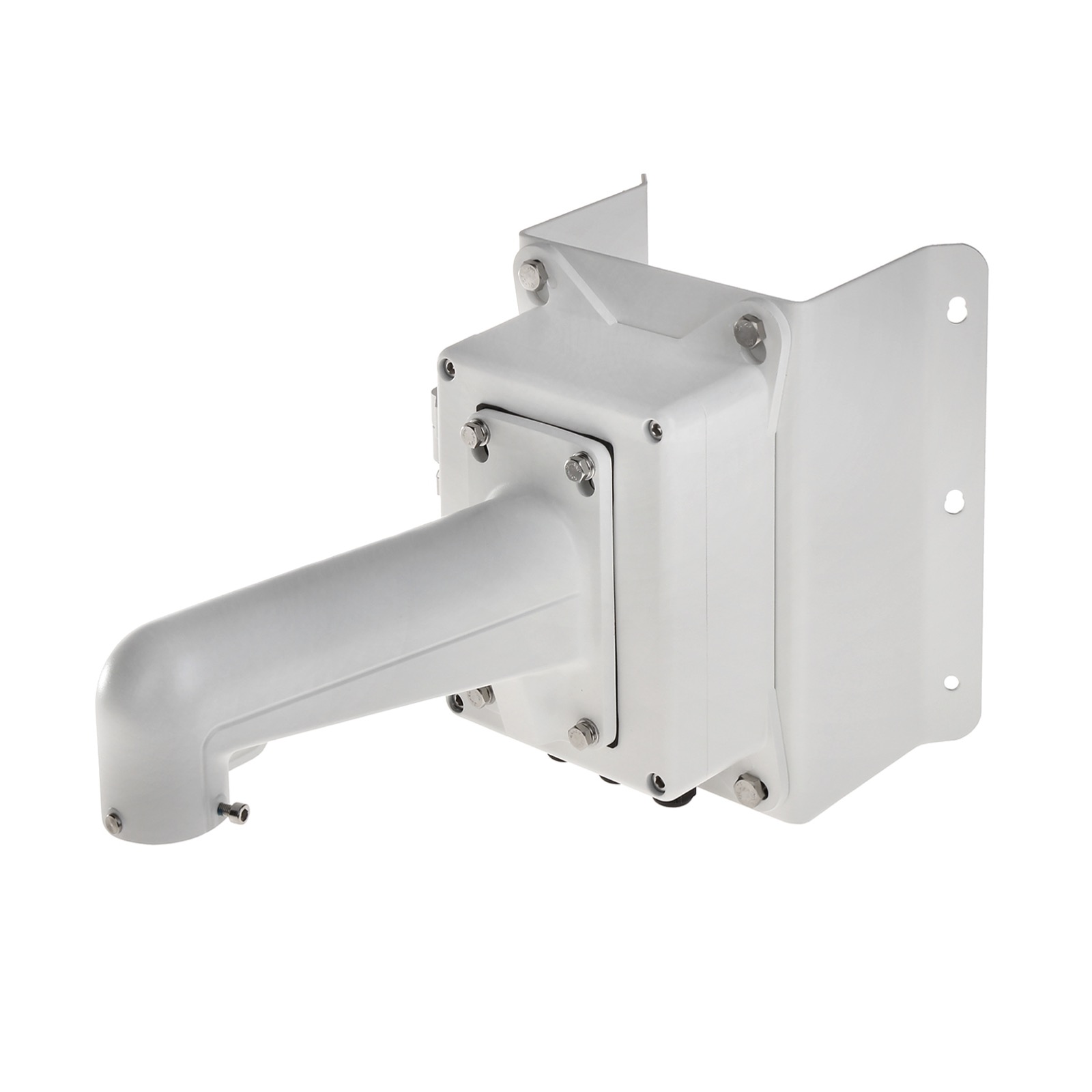

HIKVISION DS-1602ZJ-BOX-CORNER bracket for corner mounting of speed dome video surveillance cameras. Aluminum alloy and steel, Hikvision White color, equipped with junction box and safety cord. Ideal for setting up video surveillance systems that mount speed dome cameras.
DS-1602ZJ-BOX-CORNER | HIKVISION BRACKET FOR CORNER MOUNTING OF SPEED DOME CAMERAS - HIKVISION
Hikvision wall mount for corner mounting of speed dome cameras.
Ideal for setting up video surveillance systems that mount speed dome cameras.
White color Hikvision White, with spray finish of the surfaces.
Maximum load: 10KG
Simplified installation thanks to safety cable design, integrated junction box.
Features:
- Aluminum alloy and steel with surface spray treatment
- Junction box design
- Equipped with safety lanyard
Note:
- The support must be installed on flat wall surfaces
- The wall must carry a load of at least 3 times the weight of the camera and the support
- Maximum load capacity of the support: 10KG
Data sheet
| DS-1602ZJ-BOX-CORNER | |
| Parameters | Wall Mount Bracket |
| Color | Hikvision White |
| Feature | Suitable for speed dome wall corner mounting |
| Material | Aluminum Alloy & Steel |

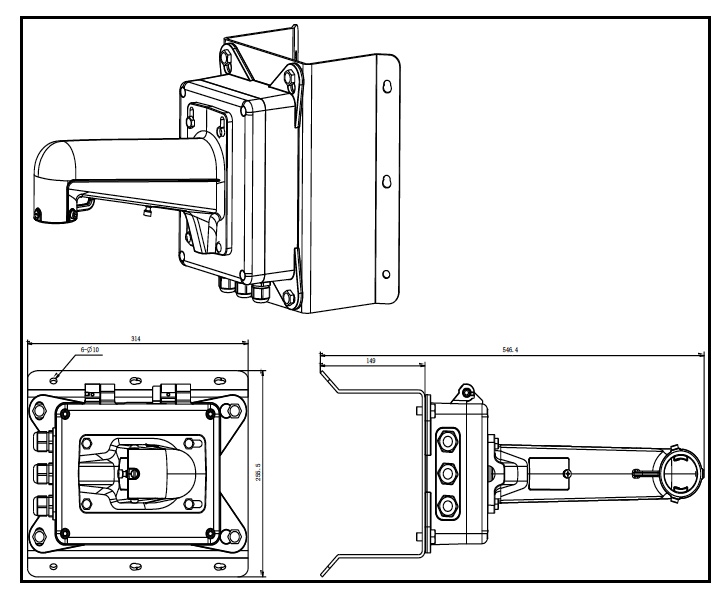

| Dimension | 255.5x314x546.4mm |
| Weight | 8396g |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
