DS-1331HZ-H - Hikvision - Housing for video surveillance cameras - For outdoor - IP67

DS-1331HZ-H - Hikvision - Housing for video surveillance cameras - For outdoor - IP67

-35%

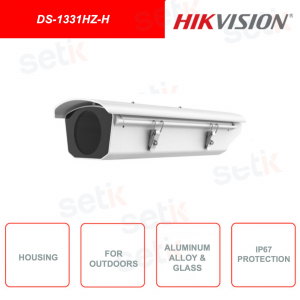

Hikvision housing for outdoor use, in aluminum alloy, ideal for video surveillance cameras DS-1331HZ-H

Made of aluminum alloy , ideal for use in video surveillance systems set up outdoors, with IP67 level protection from dust and water splashes - Internally mounted cooling fan to ensure optimal operation - Heating system in case of very low temperatures - Temperature control system.



Reference: DS-1331HZ-H

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


Made by Hikvision

DS-1331HZ-H | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE, IP67 PROTECTION, FAN, HEATING SYSTEM

Housing for video surveillance cameras, in aluminum alloy, ideal for setting up outdoor systems, with partial glass coating to ensure correct image acquisition - Integrated cooling fan - Integrated heating system, in case of use in environments at very low temperature (supports up to -40 ° C) - Temperature control system, to ensure the correct performance of the device functions - Operating temperature range: -40 ° C up to 60 ° C - AC 24V power supply - Dimensions : 445.3 × 110 × 169.2 - Product net weight: 1900g - HIKVISION - DS-1331HZ-H
DS-1331HZ-CZ

Characteristics:
- Side cover design aimed at facilitating the installation and maintenance of the device
- Stainless steel double hinge design, ingress protection up to IP67 from dust and water splashes
- Internally mounted cooling fan
- Internally mounted heating system
- It can be mounted on the wall, column, on a horizontal pole with special brackets (see Further Details)
- Supported operating temperature range from -40 to + 60 ° C

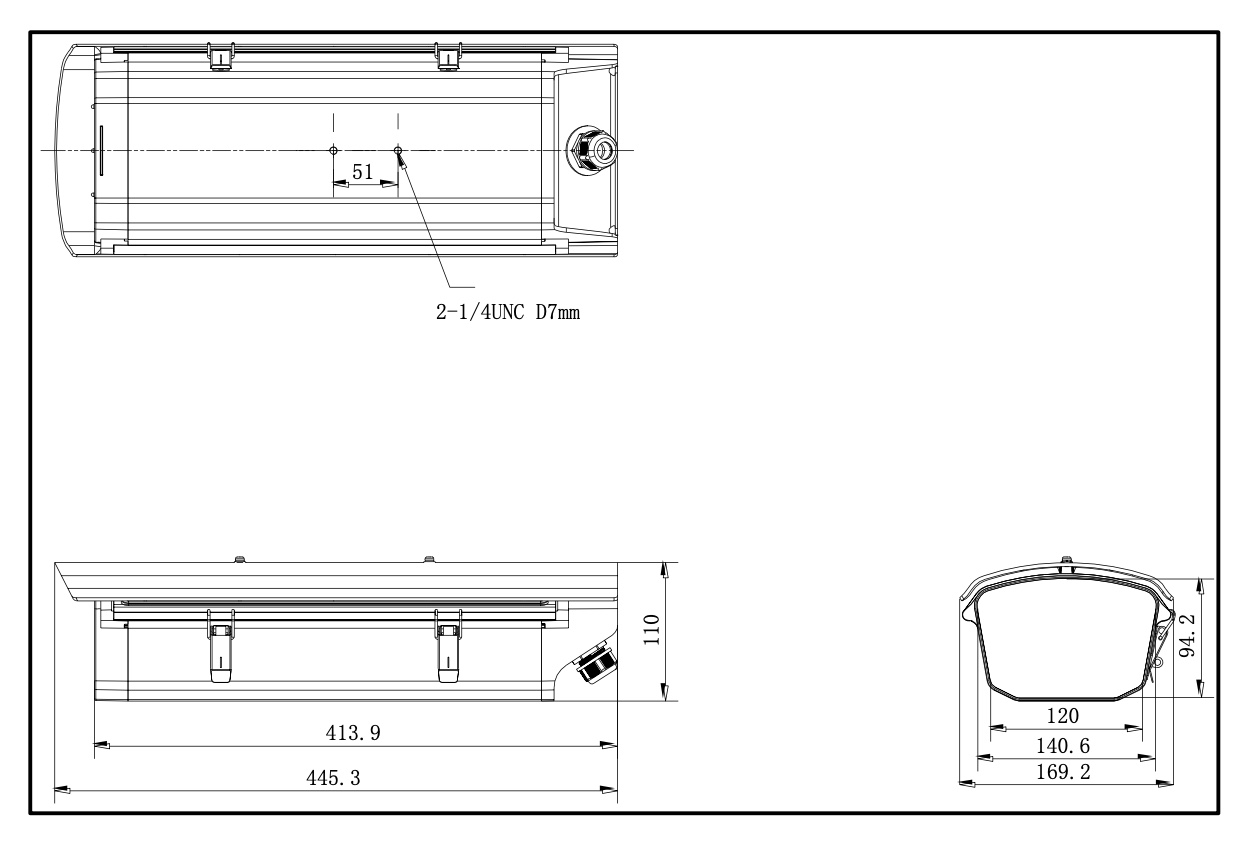

- Product Dimensions: 445.3 × 110 × 169.2
- Weight: 1900g

Attention:
- Read carefully and follow the instructions before proceeding with the installation
- Switch off the device during the cleaning process
- Do not use liquid or aerosol cleaning agents
- Pay attention to the protection of the power supply unit, cable and plug

Data sheet

DS-1331HZ-H
Parameters Outdoor Housing
Product Features Contain heater, fan
Working Temperature -40? ~ + 60?, Humidity 95% or less (non-condensing)
Automatic Temperature
Control Range

-40? ~ +60?

Heater on: 5? ± 5 ?, fan operating for constant temperature;

Fan on: 40 ° ± 5 ?, for heat dissipation

Power Supply AC 24V
Power Consumption Fan: 4W, Heater: 60W
Material Main Body: Aluminum Alloy
Window: Glass
Ingress Protection IP 67
Matching Power Supply AC24V 4A power pack
Dimension 445.3 × 110 × 169.2
Weight 1900g

Further details

Compatible with models:
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
