DS-1331HZ-HI - Hikvision - Housing for video surveillance cameras - IP67 - IK10

DS-1331HZ-HI - Hikvision - Housing for video surveillance cameras - IP67 - IK10

-35%

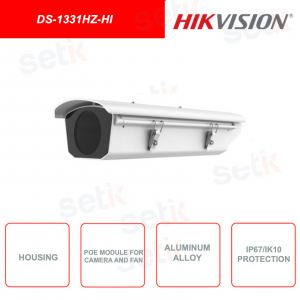

Hikvision housing for outdoor use, in aluminum alloy, ideal for DS-1331HZ-HI video surveillance cameras

Aluminum alloy housing , IP67 protection against water splashes and dust and IK 10 impact protection against vandalism.Ideal for use in outdoor video surveillance systems - Internally mounted cooling fan to ensure optimum performance operation - Heating system integrated in the device - Wide range operating temperature, from -40 to + 60 ° C - Image acquisition protection in reinforced polycarbonate.

Reference: DS-1331HZ-HI

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


Made by Hikvision

DS-1331HZ-HI | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE, IP67 AND IK10 PROTECTION - WITH INTEGRATED FAN AND HEATING SYSTEM

Housing for video surveillance cameras, made of aluminum alloy, with reinforced polycarbonate protection to ensure correct image acquisition - Ideal for setting up outdoor systems - Has double protection: IP67, to protect the device from dust and splashes , and IK10 level impact protection, against vandalism - Wide temperature range supported, from -40 to + 60 ° C, thanks to the integrated cooling fan and heating system - Operating temperature control system to guarantee the correct performance of the functions of the installed camera - Ideal for wall or ceiling mounting on a vertical pole with the use of the appropriate supports (see Further Details) - Dimensions: 445.3 × 110 × 169.2 - Net weight of the article: 1900g - HIKVISION - DS-1331HZ-HI
DS-1331HZ-HI

Characteristics:
- Side trim design aimed at facilitating installation and maintenance of the device installed in the housing
- Stainless steel double hinge design, ingress protection up to IP67 from dust and water splashes
- Internally mounted cooling fan
- Integrated heating system
- Operating temperature control system to ensure camera functions
- Power supply: AC 24V

Note:
- Read carefully and follow the instructions before installing the housing
- Switch off the installed device before cleaning and maintenance
- Do not use spray or liquid cleaning agents
- Do not install on unstable substrates
- Always protect and pay particular attention to the power supply unit.

Data sheet

DS-1331HZ-HI
Parameters Outdoor Housing
Product Features

Contain heater, fan

Working Temperature

-40 ° C ~ + 60 ° C, Humidity 95% or less (non-condensing)

Automatic Temperature
Control Range

-40 ° C ~ + 60 ° C
Heater on: 5 ° C ± 5 ° C, fan operating for constant temperature;
Fan on: 40 ° ± 5 ° C, for heat dissipation

Power Supply AC 24V
Power Consumption

Fan: 4W, Heater: 60W

Material Main Body: Aluminum Alloy
Ingress Protection IP 67
Impact Protection IK10
Dimension

445.3 × 110 × 169.2

Matching Power Supply

AC24V 4A power pack

Weight 1900g

Further details

DS-1331HZ-HI DIAGRAM
Compatible with models:
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
