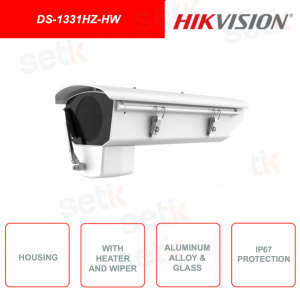

DS-1331HZ-HW - Outdoor housing for video surveillance cameras - Wiper, Fan, Heating

DS-1331HZ-HW - Outdoor housing for video surveillance cameras - Wiper, Fan, Heating

-35%

Hikvision housing for outdoor use, made of aluminum alloy, ideal for DS-1331HZ-HW video surveillance cameras with wiper, fan and heater

Manufactured in aluminum alloy, with partial smooth glass cover to protect image acquisition - Ideal for use in outdoor video surveillance systems - With wiper to ensure visibility in case of rain - IP67 level protection - Integrated fan - Heating integrated.

Reference: DS-1331HZ-HW

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Description Product Details Data Sheet Further Details Download

Made by Hikvision

DS-1331HZ-HW | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE, WITH INTEGRATED FAN, HEATER AND WIPER

Housing for video surveillance cameras, in aluminum alloy, ideal for setting up outdoor systems - Partial protection in smooth glass to protect image acquisition - IP67 level protection from water and dust splashes - Works in any context : withstands extreme temperatures from -40 to + 60 ° C, thanks to the integrated fan and heating system, and in case of rain, with the integrated wiper to ensure visibility - Dimensions: 455.3 × 169.3 × 169.2 - Net weight of the product : 2500g - HIKVISION - DS-1331HZ-HW
DS-1331HZ-CZ

Characteristics:
- Side trim design to facilitate the installation and maintenance of the appliance
- Stainless steel double hinge design, ingress protection up to IP67 from dust and water splashes
- Internally mounted cooling fan
- Integrated heating system
- Partial protective coating in machined glass, to ensure perfect image acquisition
- Operating temperature control system
- Windscreen wiper to ensure operation in case of rain

Note:
- ABF Auto BAck Focus and wiper cannot be activated simultaneously
- Set the value of 9600 as the 485 protocol baud rate, set the address to 0 and select the Pelco-D Protocol
- Read the instructions carefully and follow them before installing the camera and housing
- Switch off the device before cleaning
- Do not use spray or liquid based cleaning agents in the cleaning process
- Make sure that the mounting reference supports are sufficiently stable
- Pay particular attention to the care of the power supply

Data sheet

DS-1331HZ-HW
Parameters Outdoor Housing
Product Features

Outdoor Housing with heater and wiper

Working Temperature

-40 ° C ~ + 60 ° C, Humidity 95% or less (non-condensing)

Automatic Temperature
Control Range

-40 ° C ~ + 60 ° C
Heater on: 5 ° C ± 5 ° C, fan operating for constant temperature;
Fan on: 40 ° ± 5 ° C, for heat dissipation

Power

AC24V

Power Consumption

Fan: 4W; Wiper: 4W; Heater: 60W

Protection Level

IP67

Material

Main: aluminum alloy Window: glass

Dimension

455.3 × 169.3 × 169.2

Matching Power Supply

AC24V 4A power pack

Weight 2500g

Further details

DS-1331HZ-HI DIAGRAM
Compatible with models:
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount

Download

Download the English brochure
