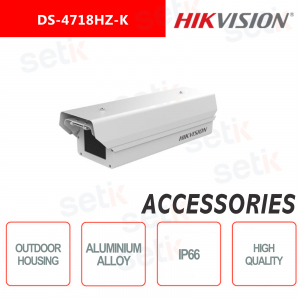

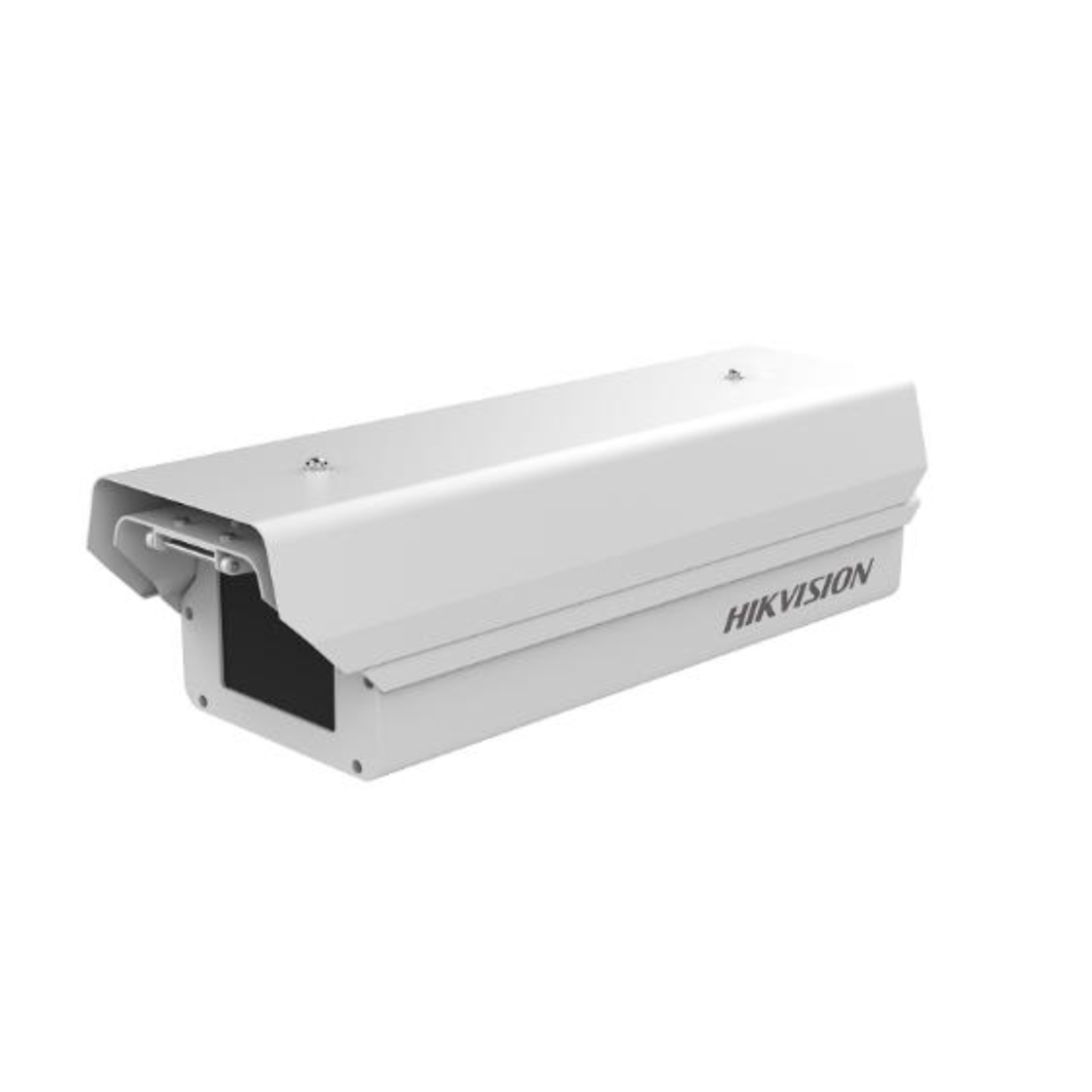

Hikvision DS-4718HZ-K housing for video surveillance cameras.
HIKVISION case, made of aluminum alloy, with active ventilation system and IP66 protection.
Ideal for setting up outdoor video surveillance systems.
DS-4718HZ-K | HOUSING FOR INSTALLATION OF VIDEO SURVEILLANCE CAMERAS IN ALUMINUM ALLOY - IP66 - HIKVISION
Housing for video surveillance cameras, in aluminum alloy, for outdoor use.
IP66 protection level for water and dust resistance.
IP66 protection level for water and dust resistance.
Active dissipation system with automatic temperature control.
Features:
- Glass with water repellent treatment and transmittance higher than 98%
- Integrated automatic temperature control system
- Ideal for different types of cameras
- IP66, ideal for outdoor environments
Note:
- Read the instructions before installation
- Waterproof rubber is required if the product is placed outdoors
- Switch off before cleaning, do not use liquid or aerosol cleaning products
- Do not install on unstable substrates
- Protect the power line
Data sheet
| DS-4718HZ-K | |
| Parameters | Outdoor Housing |
| It produces features | Contain heater, fan |
| Working temperature | -40 ° C ~ + 60 ° C |
| Window dimension (mm) | 102 × 89 |
| Automatic temperature control range | -40 ° C ~ + 60 ° C Heater on: 5 ° C ± 5 ° C, fan operating for constant temperature; Fan on: 40 ° ± 5 ° C, for heat dissipation |
| Power | AC24 |
| Power consumption | Fan: 4W, Heater: 60W |
| Protection level | IP66 |
| Material | Main: aluminum alloy Window: optical glass |

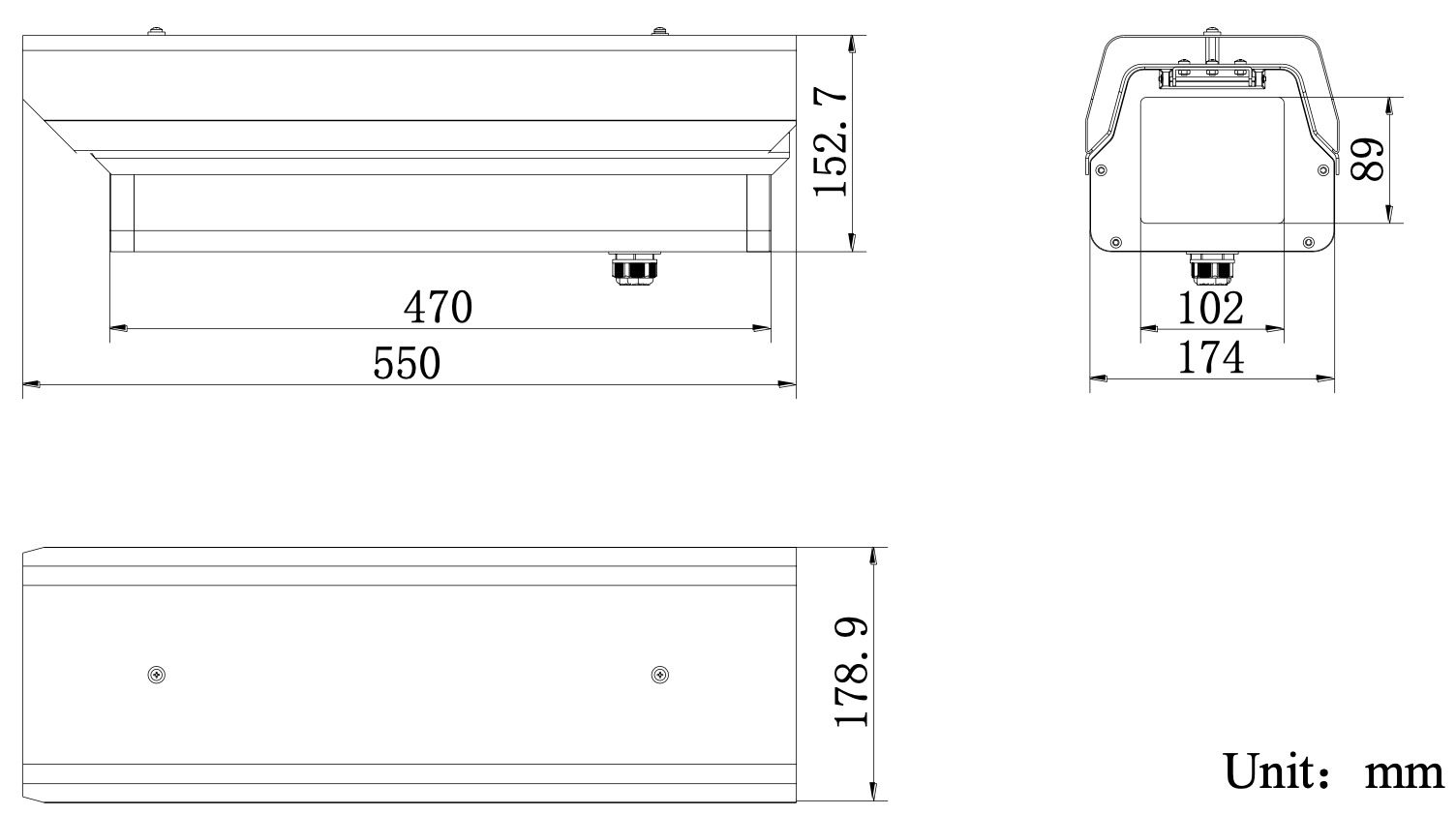

Dimension (mm) |
174 × 153 × 550mm 2.5Kg |
| Weight | 2.5Kg |
Further details
Download
Download the English brochure
