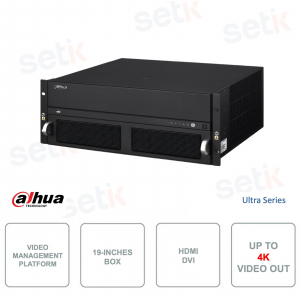

MULTI-SERVICE VIDEO MANAGEMENT PLATFORM - HDMI 1.4 - DVI - RJ45 - RS232 - RS485 - USB - DAHUA - M70-4U-E

Product details

- Multi-service video management platform - DAHUA - M70-4U-E
 - 19 inch 4U ATCA industry enclosure
 - 40ch@1080P signal encoding (in full configuration)
 - 20ch@32MP / 80ch@8MP / 320ch@1080P / 720ch@720P / 1280ch@D1 signal decoding (full configuration)
 - Operating system: Embedded LINUX
 - Buses: PCI-E
 - Video Input Cards: up to 10
 - Video output cards: up to 10
 - HDMI 1.4, with HDCP protocol support
 - H.264 codecs
 - 4K H.265 decoding
 - Supports Video Wall functionality up to 60 split-screen displays
 - 3 USB2.0, 1 USB3.0
 - Support Network Protocols: TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE
 - Serial ports: 4 RS232 ports (4 RJ45), and 1 RS485 port
 - Slots: 12 (2 Main Control Board Slots, 10 Video and Audio Function Boards)
 - Product size: 4U, 482.6×437.0×177.0mm
 - Operating Temperature: -10°C ~+50°C / 10~90%RH / 86~106kpa
 - Power supply: 100~240V AC, 50/60Hz
 - Consumption: ≤600W
 - Product weight: ≤25Kg

Data sheet
model  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
model  | M70-4U-E  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SystemParameter  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
main processor  | Quad-core embedded microprocessor  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System  | Embedded LINUX  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bus  | PCI-E  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Slots  | 12(2 Main Control Board Slots, 10 Video and Audio Function Boards)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mainframe  | Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Input Card  | Max. 10  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output Card  | Max. 10  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video inputs  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VIC0201UH-M70 (HDMI)  | interface  | 2ch HDMI1.4 supports HDCP  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Capabilities  | 2ch@4K, downward compatibility  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VEC0404HH-M70 (HDMI)  | interface  | 4chHDMI  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding format  | H.264/MPEG4  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capability  |
 4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VEC0404HD-M70 (DVI)  | interface  | 4ch DVI-I (HDMI & VGA with converter)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding format  | H.264/MPEG4  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capability  | 4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VDC0605H-M70(HDMI)  | Decoding Capability  | 2CH@32MP(25fps)/8CH@12MP(15fps)/8CH@4K(25fps)/32CH@1080P/72CH@720P/128CH@D1  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
interface  | 6ch HDMI (Interfaces 2/3/5/6 support 4K resolution, others support 1080P)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Resolution  | 4096*2160@24fps, 3840*2160@30fps, 1920*1080@60fps, 1280*1024@60fps, 1280*720@60fps, 1024*768@60fps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Split  | 1/4/6/8/9/16/25/36, free split  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video wall  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Card Video-Wall Splicing  | Splicing  | Support video wall splicing (max 60 LCD display units)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video wall  | Support Splicing/Zoom/Merge/Roam/Overlay  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video inputs  | HDMI/DVI  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output  | HDMI  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Outputs  | HDMI (embedded)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control Mode  | WEB/Local GUI/Video Platform/Network Keyboard/iPad  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
interface  | 6 RJ-45 ports (10/100/1000M), 2 in mainboard and 4 in control board  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Serial Port  | 4 RS232 ports (4 RJ45), for console and control 1 RS485 port  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB  | 3 USB2.0, 1 USB3.0  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
environmental  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | 100~240V AC, 50/60Hz  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption  | ≤600W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Environment  | -10°C ~+50°C / 10~90%RH / 86~106kpa  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension  | 4U, 482.6 × 437.0 ×177.0mm(19.0 × 17.2 × 7.0 inch), (W*D*H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight  | ≤25Kg (fully configured)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
