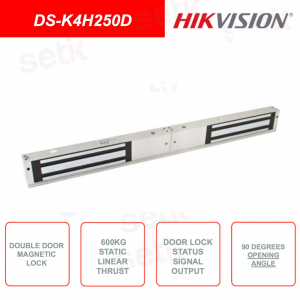

DS-K4H250D | HIKVISION | Electromagnetic latch for double door - Ideal for use on wooden, iron, metal or fireproof doors - 90 ° opening angle - Closed door signal output - Static linear thrust 600Kg (2x300Kg) - Power supply 12 VDC (default) or 24 VDC - MOV: internal Voltage Dependant Resistor - Aluminum alloy body and zinc plate and lock body.
DS-K4H250D | HIKVISION | ELECTROMAGNETIC LOCK FOR DOUBLE DOOR
Electromagnetic lock for double door - Ideal for wooden, iron, glass and fire doors - Supported linear static thrust: 600Kg (2x300Kg) - Closed door signal indicator - Power supply: 12VCD (Default) or 24VCD - MOV: Internal Voltage Dependent Resistor - Opening angle 90 degrees - Dimensions: 480 mm × 49 mm × 25.5 mm - Weight: 4.2Kg - Aluminum alloy body - Zinc plate and lock body.
Data sheet
| DS-K4H250D | |
| Lock Body Dimensions (L × W × H) | 480mm × 49mm × 25.5mm |
| Armature Plate Dimensions (L × W × H) | 180mm × 38mm × 11mm |
| Maximum Thrust | 300 kg × 2 linear thrust |
| Input Voltage | 12 VDC / 24 VDC |
| Working Current | 12V / 500mA × 2, 24V / 250mA × 2 |
| Signal Output | Dry Contact signal output, support maximum power rate of 3 A, NO output while locking and NC output while unlocking |
| LED Indicator | Red (door is unlocked), green (door is locked) |
| Suitable Door | Wooden door, glass door, metal door, fireproof door |
| Working Temperature | -10 ° to + 55 ° C |
| Working Humidity | 0 to 95% (relative humidity) |
| Shell | Aluminum alloy |
| Lock Body | Zinc, electroplated |
| Plate armor | Zinc, electroplated |
| Weight | 4.2 kg |
Further details
Unavailable
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
