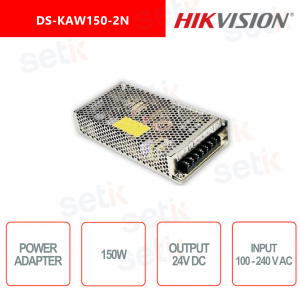

Hikvision Power Adapter DS-KAW150-2N 150W power supply - 100-200V AC input - 24V DC output - Tolerates overvoltage up to 300V AC - LED indicator - Natural heat dissipation - Dimensions: 178 mm × 97 mm × 38 mm
DS-KAW150-2N | POWER SUPPLY 150W - INPUT FROM 100 TO 240 V AV - OUTPUT 24V DC - HIKVISION
Hikvision Power Adapter DS-KAW150-2N 150W power supply
100-200V AC input - 24V DC output - Tolerates overvoltage up to 300V AC - LED indicator
Natural heat dissipation - Dimensions: 178mm × 97mm × 38mm
Working temperature 70 degrees
Data sheet
| DS-KAW150-2N | |
| Input voltage | 100 VAC to 240 VAC |
| Output voltage | 12V DC |
| Output current | 6.25 A |
| Output power | 150 W |
| Noise and ripple | <150 mvpp="" 25="" c="" td=""> |
| Voltage adjustment range | 23 VDC to 25 VDC |
| Cooling system | Convection |
| Working temperature | Operating: -10 ° C to +70 ° C (14 ° F to 158 ° F) Storage: -25 ° C to +85 ° C (-13 ° F to 185 ° F) |
| Working humidity | <95% (No Condensation) |
| Dimension (L x W x D) | 178 mm × 97 mm × 38 mm (7.01 "× 3.82" × 1.50 ") |
| Weight | 0.54 kg |
