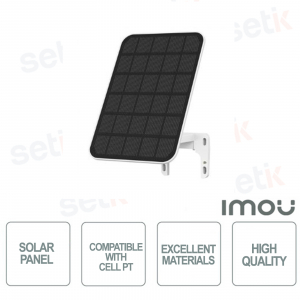

Imou Solar Panel for Cell PT Cameras

Imou Solar Panel for Cell PT Cameras

-15%

FSP13-IMOU Imou Solar Panel for Cell PT Connection with USB-C - Solar panel


COMPLETE YOUR PURCHASE! --> IPC-K9EP-3T0WE-IMOU



Also available is the --> FSP15-IMOU version


Reference: FSP13-IMOU

Brand: IMOU

EAN: 6976391037502

Disponibilità: 9

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou uses smart and easy-to-use technologies designed for home and small and medium-sized business security. All systems are compatible with Alexa and Google Home, if you want to monitor what matters for you the most, all you have to do is ask the device to show you the images.

[short_description] =>


Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers, as highlighted by the official claim: 'Enjoy Smart Life'

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2025-07-23 14:59:46 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => [meta_description] => Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER




WHO IS IMOU? Imou is not an anonymous Chinese brand, but a brand new global leader in video surveillance.
This product is part of the CONSUMER SERIES , a line of products specifically designed for end users as:

simple | easy to install | attractive design |

FSP13-IMOU | Solar Panel for Cell PT

Solar Panel for Imou Camera


Product details


  • Solar Panel - Imou
  • Compatible with Imou Cell PT cameras
  • PET laminate encapsulation method
  • Solar silicon crystal Single crystal
  • Open circuit voltage 7.4V (-5%/+10%)
  • Short circuit current 0.508A (-5%/+10%)
  • Solar panel working voltage 6.2V (-5%/+10%)
  • Working current 0.484A (-5%/+10%)
  • Solar panel power Maximum power (Ppm) 7W (-5%/+10%)
  • Operating temperature from -20℃ to +60℃
  • Storage conditions Temperature -20℃~45℃,
  • Humidity <60%
  • Conversion rates 18.2%±2%
  • IP65 protection level
  • Connecting to the Micro USB-C camera

FSP15-IMOU FSP13-IMOU
FSP12-TypeC-IMOU
Solar panel working voltage 5.4V (-5%/+5%) 6.48V (-5%/+5%) 6V (-5%/+5%)
Working current 1.5A (-5%/+5%) 1.08A (-5%/+5%) 0.5A (-5%/+5%)
Storage conditions Temperatures -20℃~45℃, Humidity<60% Temperatures -20℃~45℃, Humidity<60% Temperatures -20℃~45℃, Humidity<60%
Conversion rates ≥22% ≥21% ≥19.5%
Device Dimensions 260 × 168 × 19 mm 285 x 190 x 18.5mm 170 x 120 x 15mm
