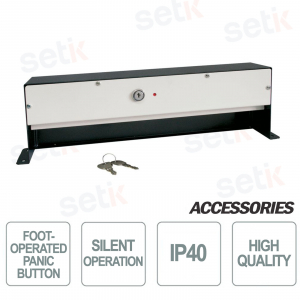

CSA 485-I – FOOT-OPERATED PANIC BUTTON - SILENT OPERATION
The Eaton CSA 485-I foot-operated panic button is a safety device designed to quickly and quietly signal emergencies. Made of sturdy metal and CE certified, it guarantees reliability and durability. It can operate over a wide temperature range, from -15°C to +55°C, with an IP40 rating, ideal for indoor environments exposed to dust and small solid objects. Activation is achieved with a simple touch of the foot, making it practical and immediate in critical situations.
Main features:
- Silent operation for discreet signaling
- Durable and long-lasting metal construction
- Temperature range from -15°C to +55°C
- IP40 protection degree against dust and solids
- Simple foot control (ON only)
- CE certification for guaranteed safety
Further details
The Eaton 485-I panic button operates over a wide temperature range, from -15°C to +55°C , ensuring stable performance in both cold and hot environments. This makes it ideal for offices, shops, and industrial areas where climate conditions can vary significantly.
The device offers an IP40 rating, which ensures resistance to solid objects greater than 1 mm and reduces the risk of damage from dust. It is perfect for indoor applications where a reliable level of protection is required for a long operating life.
Designed with a versatile electrical connection (Other), the button can be easily integrated into existing security systems, simplifying installation and ensuring compatibility with various systems. This flexibility allows for rapid implementation even in pre-existing contexts.
Technical data sheet
Model: | CSA 485-I |
Operating temperature - max | 55°C |
Operating temperature - min | -15°C |
Current - max | 1 A |
Degree of protection (IP) | IP40 |
Tyoe of electrical connection | Other |
Color | Black |
Enclosure material | Metal |
Number of contacts (change-over contacts) | 0 |
Number of contacts (normally open contacts) | 0 |
Number of contacts (normally closed contacts) | 1 |
Suitable for safety functions | Yes |
With protective hood | No |
With interlocking | No |
With insulation protections | No |
Switching function latching | No |
Type of command | Only ON |
Degree of protection (NEMA) | Other |
Number of switch positions | 0 |
