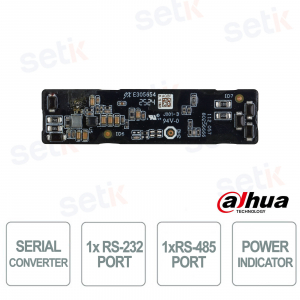

ARA715 | RS-323 & RS-485 SIGNAL CONVERTER MODULE


Dahua

The ARA715 Serial Converter is a professional module designed to convert RS-232 signals to RS-485 , optimizing communication with the Hub 2 system's I/O expansion module. Its integration allows you to expand the system's wired capabilities, ensuring stable and secure connections. Thanks to direct power supply via the RS-232 port, the device is extremely simple to install, while the LED indicator allows for immediate monitoring of its operating status. Its compact size and CE certification make it ideal for security systems, automation, and professional applications requiring a reliable serial interface.

Main specifications:

- RS-232 → RS-485 signal conversion for wired I/O expansions

- Direct power supply from Hub 2's RS-232 port

- Built-in LED status indicator

- Wide operating range: –10 °C / +55 °C, humidity 10–90%

- Compact size: 50 × 12.7 × 7.2 mm, weight 5.21 g

- CE certification for professional installations

- Ease of integration with security and automation systems

Further details

RS-232 port:
The RS-232 port serves as the main input for serial communication with Hub 2, allowing the module to draw power directly from the device and receive signals for conversion. This ensures simple installation, without additional power supplies, optimizing compatibility with legacy control systems and interfaces.
RS-485 port :
The RS-485 port serves as an output for transmitting converted signals, providing a stable, long-distance connection to I/O expansion modules. Thanks to the differential nature of RS-485, the module ensures more interference-resistant communication, making it suitable for professional applications and complex systems.
Functions :
The converter includes an LED indicator for instant power status, simplifying diagnosis and installation. Its primary function is the reliable conversion of RS-232 → RS-485 signals, essential for expanding wired systems, ensuring interoperability, and integrating devices with different protocols. Its compact design and CE certification make it ideal for security, automation, and technical applications requiring stability and precision.
ARA715 dimensions

Technical data sheet

ARA715

Port

RS-232

1 × RS-232 input port

RS-485

1 × RS-485 output port

Function

Indicator Light

1 power indicator

General

Power Supply

Powered by the RS-232 port of Hub 2

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

50 mm × 12.7 mm × 7.2 mm (1.97" × 0.50" × 0.28")

Net Weight

5.21 g (0.01 lb)

Gross Weight

50 g (0.11 lb)

Certifications

THERE IS

Storage Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Packaging Dimensions

106 mm × 90 mm × 45 mm (4.17" × 3.54" × 1.77") (L × W × H, 1 in inner carton)
339 mm × 291 mm × 261 mm (13.35" × 11.46" × 10.28") (L × W × H, carton)
