DGP-KIT220 / PXDAK22 PARADOX Access Control KIT compatible with Paradox EVO Control Panels . Equipped with 1 indoor / outdoor proximity reader ( R910 ) + 1 ACM12 module and 280x280x76 mm metal cabinet. Requires transformer.



Reference: DGP-KIT220

Brand: Paradox Allarme

EAN: 8057457615693

€186.14

€489.83 -62%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!




ACCESS CONTROL KIT FOR PARADOX EVO SERIES

Prodotto paradox Access Control KIT DGP-KIT220 / PXDAK22 - Paradox
Ideal for integration into Paradox EVO Series alarm control panels

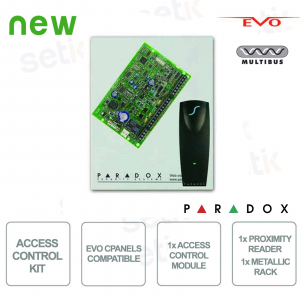

The kit includes: 1x R910 proximity reader + 1x ACM12 module + 1x metal cabinet
Reader-module connection with only 4 wires - Requires transformer

PARADOX CATALOG:

Are you looking for a PARADOX product but couldn't find it on our site?

Don't worry, we can supply you with ALL Paradox products: consult the CATALOG or contact us by email.

DGP-KIT220 | EVO SERIES ACCESS AND CONTROL UNITS KIT
Digiplex EVO systems are designed to provide the highest level of protection for banks, museums, public buildings, offices, medium and high level homes and in general where maximum security is essential.

These systems are also constructed to be easy to use, easy to install, expandable and cost-effective.

Designed taking into account the needs of the installer, these systems are based on the concept of modularity that saves time and work and makes installation, expansion and maintenance extremely fast and convenient.

Digiplex EVO integrates access control.

In fact, it is possible to manage user and system inputs in protected areas, with a maximum of 32 ports, and it is also possible to use WinLoad and NEware software to manage users and their homes.

Combining security and access control, Digiplex EVO increases the protection offered to a new and higher level.


DGP-KIT220: ACCESS CONTROL KIT FOR EVO CENTRAL UNITS!


INSIDE THE PACKAGE:
INTERNAL / EXTERNAL PROXIMITY READER - UP TO 10CM (R910)Proximity reader for indoor / outdoor use, up to 10 cm range, 3-color LED, Connection between reader and ACM-12 module with only 4 conductors Firmware upgradeable locally via CV4USB interface. Housing with high resistance to weather (sealed in resin), IP65 protection degree. Dimensions 51x146x26 mm. Black colour. - Connection to R910 and R915 readers with only 4 wires
- Firmware upgradeable locally via CV4USB interface
- Compatible with 4-wire and 26-bit Wiegand readers
- Shared transformer: it is possible to use a single transformer to power more modules that have this performance
- Safe mode option: during communication loss, the port connected to the module guarantees access to up to 4 predefined cards Metal wardrobe for storing the control unit and power supply

Modulo controllo accessi 4 collegamenti

ACCESS CONTROL MODULE 4 CONNECTIONS (ACM12)

Access control module for 1 reader with BUS connection. Allows access and / or insertion and disarming of the system with card, code, or both. Connections for a door (reader, REX, door contact and electric lock output). Automatic, timed, delayed, manual door release with button, programmable output or on fire alarm. Button to activate or deactivate the auxiliary output. 1 zone input for open door, 1 programmable 5A relay output, 1 logic output. Supplied in metal cabinet 200x255x76 mm. Requires transformer.



- Connection to R910 and R915 readers with only 4 wires
- Firmware upgradeable locally via CV4USB interface
- Compatible with 4-wire and 26-bit Wiegand readers
- Shared transformer: it is possible to use a single transformer to power more modules that have this performance
- Safe mode option: during communication loss, the port connected to the module guarantees access to up to 4 predefined cards



Lettore di prossimità paradox R910

280X280X76 METAL CABINET

Data sheet

Technical data sheet not available

More details



DUPLEX EVO PARADOX CENTRAL UNITS

In a company, you can switch off the system in the office part, and leave it completely active in the warehouse, or on the contrary. - Ideal for companies with environments that have different business hours, or for adjacent apartments (for example parents who live near their children) where security must be independent- Provides different levels of security in the different environments of your home or businessBy adding access control to your security system, you can have more control over who and when entering protected areas, even when the system is not plugged in and when you are not present. You can limit the access of some user groups depending on the time slots, or the authorizations. - You can allow access only to those who have the appropriate card, and prevent it from all others- You can check who entered and when (up to 999 users)- Detailed print of the accesses- Insertion and deactivation of the security system with the same access card, instead of using the keyboardWith portable remote controls, your safety becomes much more comfortable.It is possible to customize each remote control for the most used functions and to reduce the risk of false alarms, making the insertion and disarming operations easier. -Inserting and disarming the security system with the push of a button- Opening and closing of automatic entrances, gate / overhead garage door- Activation of aggression alarm- If the system protects two separate areas (eg two apartments in the same building), each user can manage his system with his remote control Simplicity is essential to control your security system. With the IP100 Internet module, the VDMP3 voice dialer module or the PCS200 GSM module you can control and manage your system wherever you are, via any internet access or smartphone - Receiving an alarm, fault or status change event (armed / disarmed) via e-mail or SMS- Activate / deactivate the system via internet module using a WEB page or by sending an SMS to the system

SAFETY FOR THE HOUSE, THE OFFICE, THE STORE

The EVO security systems can control up to 192 detection points to protect your home or business with maximum security. A qualified installer can help you choose the most suitable system for your needs, keeping in mind that you can start with basic protection and then expand the system over time. In fact, EVO systems can easily be adapted to your security needs at any time.



- Magnetic contacts for doors and windows

- The keyboards allow you to manage and control all the areas of the system

- Motion detectors protect all indoor environments, as well as outdoor spaces such as balconies, terraces and verandas


INDEPENDENT AREAS, INDEPENDENT SECURITY

Whether in residential or commercial or industrial installations, EVO systems can protect up to 8 independent areas in the same building. In a house, for example, it is possible to protect the pool to prevent children from approaching, while in the rest of the house the system is disarmed. Or it is possible to move freely in the home keeping the system in the study or in the adjacent shop, and vice versa.

SECURITY AND ACCESS CONTROL

THE COMFORT OF WIRELESS REMOTE CONTROLS

SYSTEM MANAGEMENT THROUGH INTERNET OR CELL PHONE

Download

WHO AND PARADOX?

Official catalog



The story of Paradox began in 1989 with the launch on the market of an extraordinary product line, the first motion detectors whose patents are still used today. In 1996 they introduced the Digiplex series of security systems, with the expandable encrypted bus system . In 2001, they dedicated themselves to the world of wireless wireless radio products, including Magellan's award - winning all-in-one console . In the last few years also in the development of software, in 2007, they renewed and moved many of their products onto new platforms, and introduced advanced communication modules that exploit GSM and IP. Following the great success, they reintroduce Elegance , a wonderfully designed motion detector born for the first time 20 years ago.
