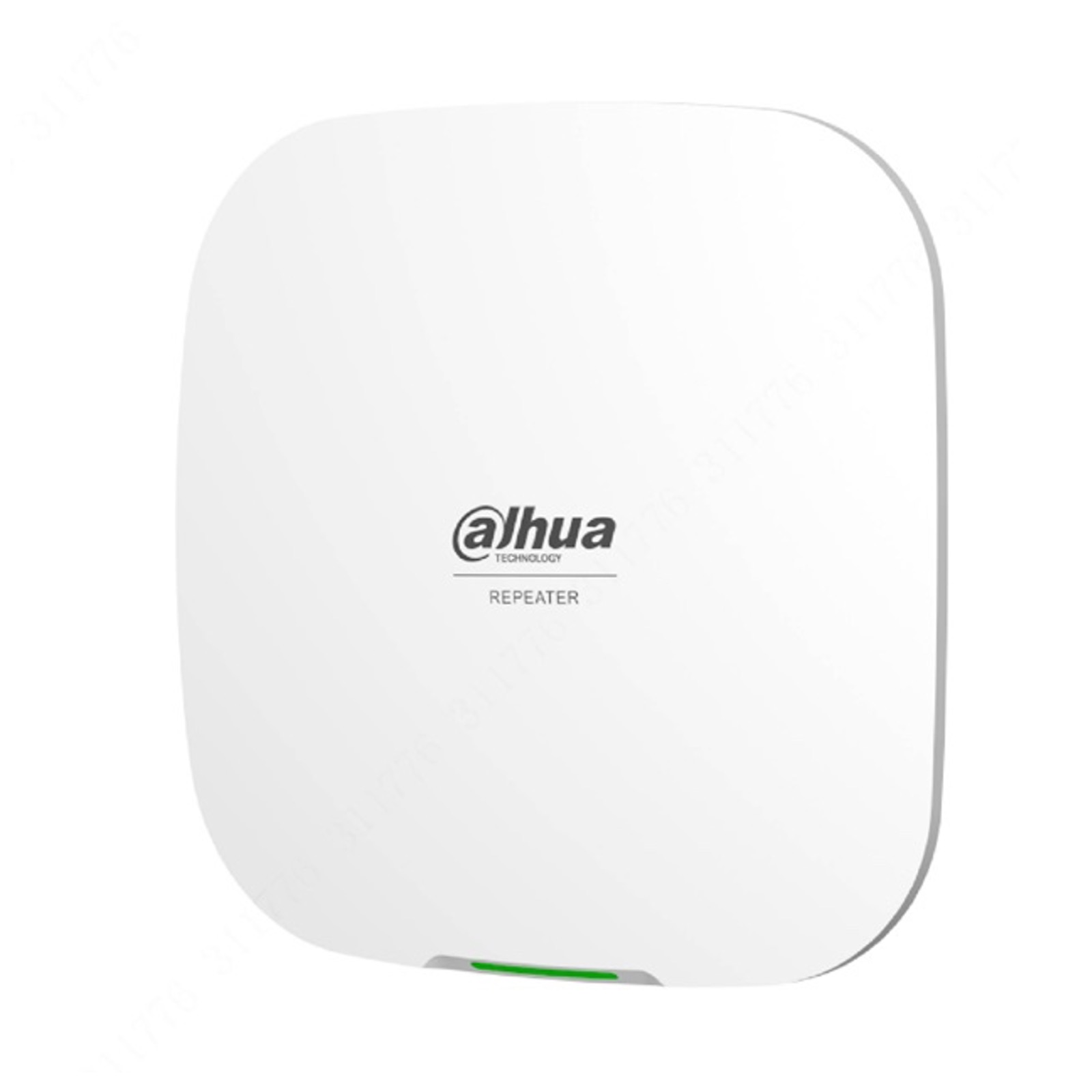

Dahua - ARA43-W2-868 - Wireless Repeater Alarm - Communication frequency 868Mhz - Up to 32 devices - Signal strength detection - LED indicator for operation and pairing - Lithium battery - Power switch - Open field range 1,600m - Cloud upgradeable - AES 128 encryption - Two-way communication - Compatible only with the ARC3000H series - Frequency Hopping - Tamper alarm - White color.

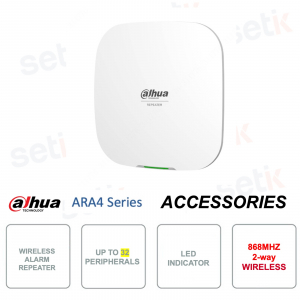

ARA43-W2-868 | WIRELESS ALARM REPEATER - 868 MHz - UP TO 1,600 M - UP TO 32 DEVICES

WIRELESS ALARM REPEATER - DAHUA - ARA43-W2-868 - FREQUENCY 868MHZ - 32 PERIPHERALS - LED INDICATOR
Wireless Alarm Repeater - Dahua - ARA43-W2-868 - Two-way communication frequency 868Mhz - LED indicator (paiting and correct working status) - Frequency Hopping - Up to 32 peripherals - Lithium battery - Tamper alarm - Remotely upgradeable (Cloud update) - Signal strength detection - AES128 encryption Compatible only with the ARC3000H series - Operating range up to 1,600m in open field.
Main features:
- Wireless Siren - Dahua - ARA43-W2-868
- 868MHz two-way wireless communication protocol
- Connect up to 32 devices
- Coverage up to 1,600 meters in open space
- AES128 encryption
- LED indicator for operation and pairing
- Power Switch
- Remotely upgradable (Cloud Update)
- Automatic/manual pairing
- For wall or desk installation
- Built-in tamper switch
- Lithium battery
- Power supply: 12 VDC, 1.5 A
- Size: 163.0mm × 163.0mm × 32.0mm
- Product net weight: 0.32 kg
- Supported operating temperature: –10 °C to +55 °C
- Material: Polycarbonate and ABS
Product details
Technical data sheet
| ARA43-W2-868 | |
|
Technical Specifications |
|
|
Input/Output |
|
|
Wireless Zone |
32 × wireless peripherals |
|
Port |
|
|
Storage Battery |
Built-in lithium battery |
|
Indicator Light |
1 that indicates pairing and working |
|
Power Switch |
1 × power switch |
|
Function |
|
|
Pairing Mode |
Auto/Manual |
|
Tamper Alarm |
Yes |
|
Remote Update |
Cloud update |
|
Power Failure Protection |
Yes |
|
Disconnection Detection |
Yes |
|
Low Battery Alarm |
Yes |
|
Search |
Signal strength detection |
|
Wireless |
|
|
Carrier Frequency |
868.0 MHz–868.6 MHz |
|
Communication Distance |
Up to 1,600 m (5249.34 ft) in an open space |
|
Communication Mechanism |
Two-way |
|
Encryption Mode |
AES128 |
|
Frequency Hopping |
Yes |
|
General |
|
|
Power Supply |
12 VDC, 1.5 A |
|
Battery Life |
Battery standby time: 35 h |
|
Operating environment |
–10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
|
Operating Humidity |
10%–90% (RH) |
|

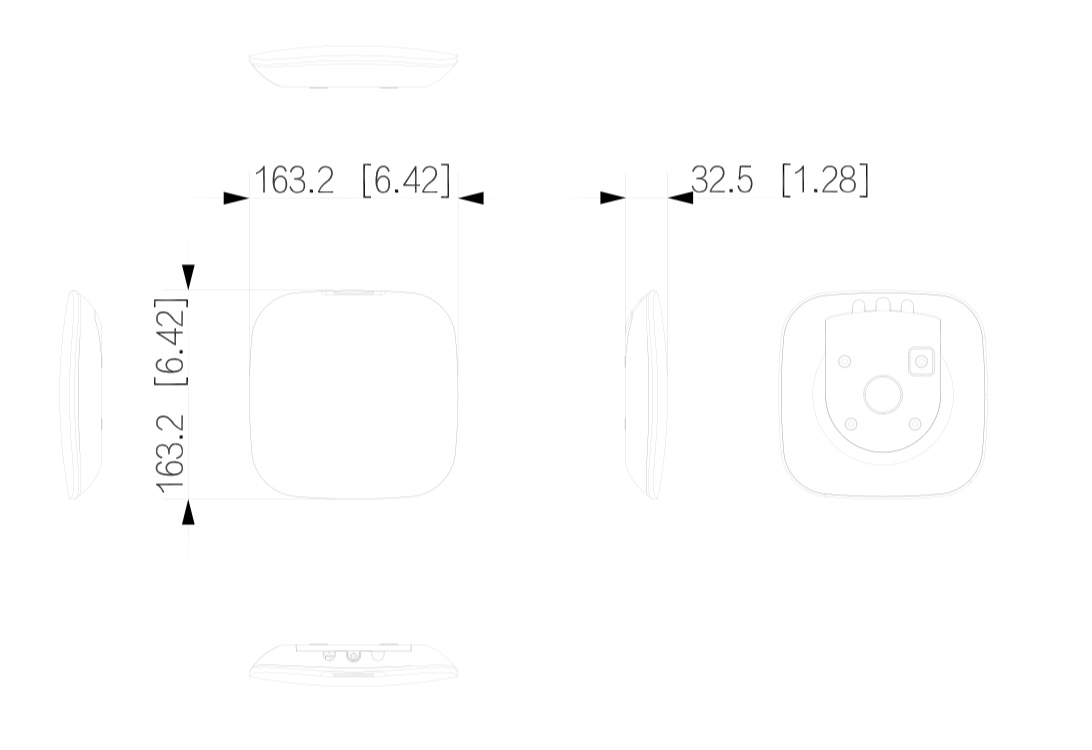

Product Dimensions |
163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") |
|
Packaging Dimensions |
219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") |
|
Installation |
Wall mount; Desktop |
|
Net Weight |
0.32 kg (0.71 lb) |
|
Gross Weight |
0.74 kg (1.63 lb) |
|
Certifications |
THERE IS |
|
Casing |
PC+ABS |
