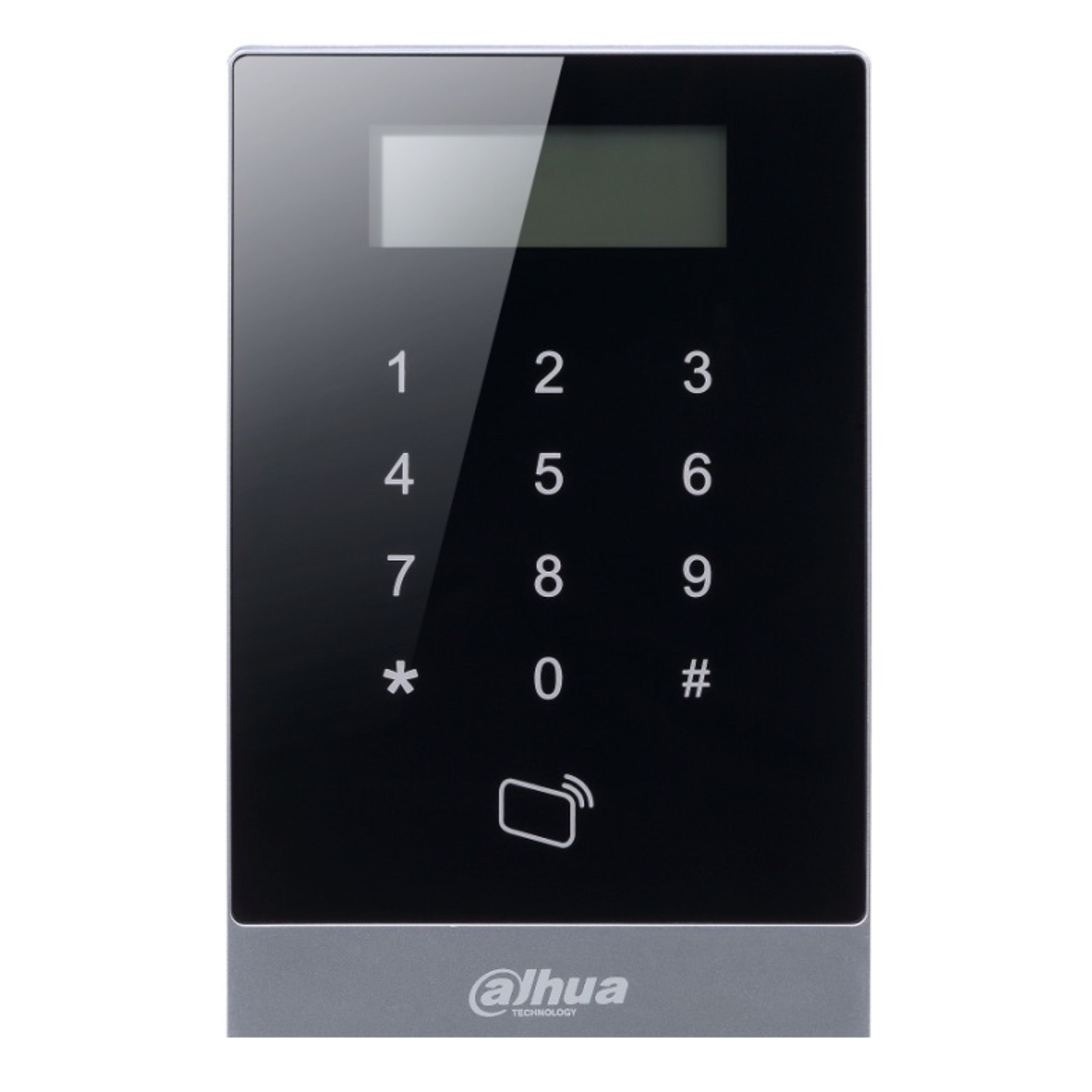

RFID PROXIMITY READER - FOR MIFARE 13,56MHZ 125KHZ CARDS - ID EM CARD - WITH TOUCH KEYPAD AND PC CONNECTION - IP55 - DAHUA - ASI1201A-D

|
 DESCRIPTION: Extremely reliable product.  |
Product details
- Waterproof RFID Reader - Dahua Security
 - Useful for access control with MIFARE 13.56Mhz/125khz card RFID reader, ID EM Card
 - Numeric touch keyboard with blue backlighting
 - Communication: TCP/IP (RJ45 10/100M), RS485, Wiegand
 - Identification through RFID Cards, Code or combination
 - Compatible Mifare 13.56Mhz / 125khz cards (Range 3-8cm (max.))
 - 32Bit processor, 16M memory
 - Door time out alarm, intrusion alarm, duress alarm and tamper alarm
 - Fast card read/response times (<0.1s)
 - Inputs: 1 door sensor, 1 exit button, 2 alarm inputs
 - Output: 3 relays (doors, tone, alarm)
 - Capacity up to 30,000 users, 150,000 events
 - Watchdog Analysis Function
 - User hierarchy: General, VIP, Guest, Patrol, Black list
 - Power supply: 9-15DC/200mA

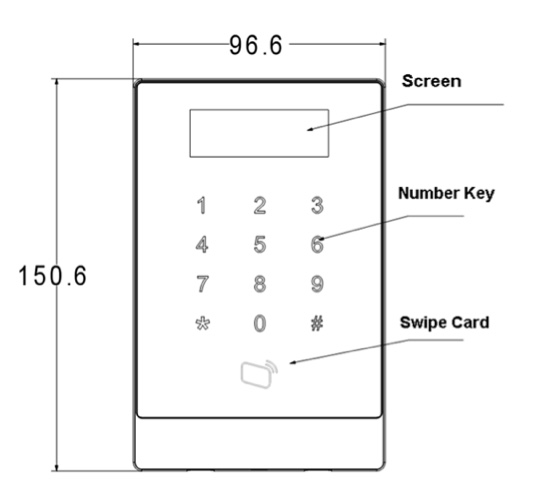

 - Dimensions: 97mm*16mm*150mm
 - Weight: 0.3Kg
 - IP55 protection
 - Operating temperature: -5°C~+55°C

Data sheet
| ASI1201A-D | |
|
 Technical Specification  |
|
|
 System  |
|
|
 Main Processor  |
 32 Bits  |
|
 Memory  |
 16M  |
|

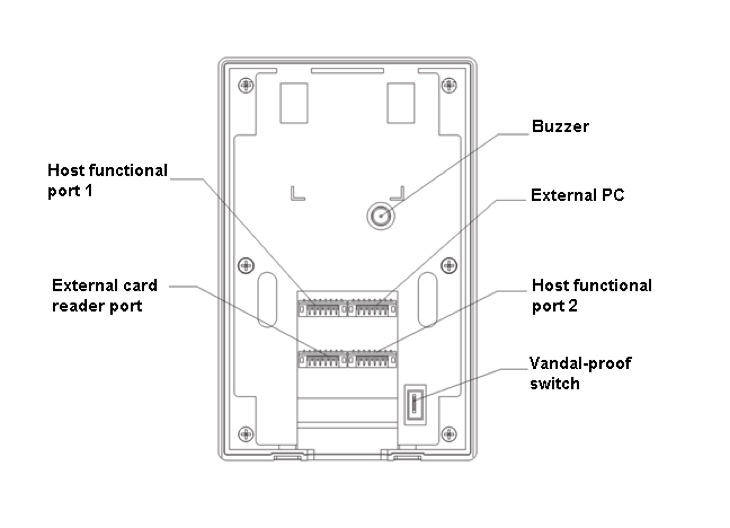

 Input/Output Ports  |
|
|
 Input  |
 Door sensor x 1, Exit button x 1, Alarm input x 1  |
|
 Outputs  |
 Relay :Door lock×1 TTL: Bell×1, Alarm×2  |
|
 Readers  |
 Reader x 1  |
|
 Card Read  |
|
|
 Read Format  |
 13.56MHz(Mifare)/125KHz - EM ID  |
|
 Read Range  |
 3-8cm (max.)  |
|
 Response Time  |
 <0.1s  |
|
 Capacity  |
|
|
 cardholders  |
 30,000  |
|
 Events  |
 150,000  |
|
 Function  |
|
|
 User Management  |
 General, VIP, Guest, Patrol, Blacklist, Duress  |
|
 Alarm Function  |
 Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm  |
|
 Period Setting.  |
 Support 128 groups of schedules, 128 groups of periods and 128 groups of holiday periods  |
|
 interface  |
|
|
 To PC  |
 RJ45(10/100M)  |
|
 To Reader  |
 Wiegand/RS485  |
|
 General  |
|
|
 RTC extension  |
 Yes  |
|
 Voice prompts  |
 No  |
|
 Beep Tone  |
 Buzzers  |
|
 Keyboard  |
 Sensitive touch keypad with blue backlight  |
|
 Power Supply  |
 9-15DC/200mA  |
|
 Working Environment  |
 -5°C~+55°C  |
|
 Working Humidity  |
 ≤95%  |
|
 Dimension(W×D×H)  |
 97mm*16mm*150mm  |
|
 Weight  |
 0.3Kg  |
Further details
![]()  |
 This terminal is STANDALONE . This means that it is autonomous, able to manage functions without having to integrate other devices.  |
![]()  |
 32BIT processor  |
|


  |
 Standalone RFID reader with touch keyboard and identification via:
 - Combination - 13.56MHz format card (Mifare)
  |
![]() ![]()  |
 Communication via TCP/IP (RJ45 100M), RS485 or Wiegand26/34  |
|

  |
 Up to 30,000 user files , 150,000 events!!!  |
![]()  |
 Smart features: - Intrusion alarm, door time out alarm, tampering alarm  |
![]()  |
 Watchdog function for analyzing device anomalies  |
|
 This product is covered by a 24 month guarantee.  |
