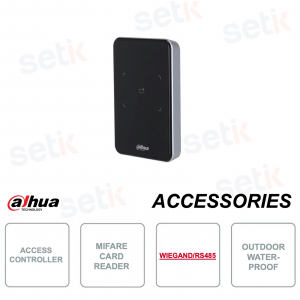

ACCESS CONTROL: PROXIMITY READER FOR MIFARE CARDS - DAHUA - ASR2100A

|
 DESCRIPTION: Fast reading/response times, equipped with colored LEDs for status indication and buzzer. Extremely reliable product.  |
Product details
- Proximity reader - Dahua Security - ASR2100A
 - Useful for faster access through Mifare cards
 - Communication with RS485/Wiegand control
 - Watchdog analysis function
 - Fast card read/response times (0.1s)
 - Anti-sabotage tamper
 - Leds for status indication
 - Alarm buzzer
 - Power supply: 5V ~ 16V DC, 100mA / 300mA / 800mA
 - Dimensions: 123mm × 86mm × 15mm
 - Operating temperature: –30°C to +70°C
 - Operating Humidity: 5%RH–95% (non-condensing)
 - Product net weight: 0.35kg
 - Context of use: indoor and outdoor
 - Wall installation

Data sheet
| ASR2100A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Basic  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 ProductType  |
 Card reader  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Buzzers  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Casing  |
 PC/acrylic panel  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Function  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 UnlockMode  |
 Card swiping  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 CardType  |
 IC cards/ID cards  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Response Time  |
 0.1s  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Reading Distance  |
 0cm–5cm (0"–1.97")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 RS-485  |
 1 channel  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Wiegand  |
 1 channel output  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 alarm  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Tamper Alarm  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 12V 0.5A DC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Protection  |
 IP66 (silicon sealant is needed, see the manual)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 power consumption  |
 Standby ≤ 0.9W, working ≤ 1.7W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 123mm × 86mm × 15mm (4.84" × 3.38" × 0.59") (L×W×H)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packaging Dimensions  |
 185mm × 163mm × 71mm (7.28"" × 6.41 × 2.80") (L×W×H, 1 in inner carton)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –30°C to +70°C (–22°F to +158°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 5%RH–95% (non-condensing)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 operating environment  |
 indoors; outdoors  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 0.35kg (0.77lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Installation  |
 Surface mount  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 THERE IS; FCC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
![]()  |
 Proximity reader for Mifare cards. Very fast 0.1s read/response times  |
![]()  |
Ideal for indoor and outdoor use, thanks to the IP66 protection (requires silicone sealant to ensure complete waterproofing). |
![]()  |
 Communication via Wiegand / RS485 control.  |
![]()  |
 Watchdog function for analyzing device anomalies  |
![]()  |
Status and operating LED indicators. |
|
 This product is covered by a 24 month guarantee.  |
