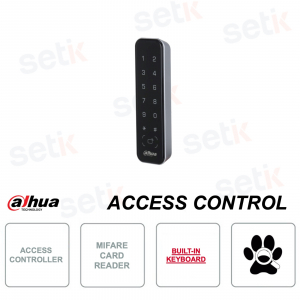

MIFARE RFID PROXIMITY READER WITH KEYBOARD - DAHUA TECHNOLOGY - ASR2201A

 DESCRIPTION: Fast read/response times, equipped with colored LEDs for status indication and buzzer. Allows authentication with card or password code. Extremely reliable product.  |
Product details

- Proximity Reader - Dahua Security - ASR2201A
 - Equipped with keypad
 - Useful for faster access via MIFARE RFID cards or code
 - Communication with RS485 / Wiegand26/34 control
 - Watchdog analysis function
 - Fast card reading/response times (0.1s)
 - Tamper sabotage
 - LEDs for status indication
 - Alarm buzzer
 - Power supply: 9-15VDC/100mA
 - Size: 135mm × 40mm × 15mm
 - Operating temperature: –30°C to +70°C
 - Weight: 160 g
 - Supported Humidity: 5% ~ 95% (non-condensing)
 - In polycarbonate and acrylic
 - Wall installation

Technical data sheet
ASR2201A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Type  | Slim Card Reader  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Buzzer  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing  | Tempered glass/PC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Mode  |  Card swiping/password  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Type  | IC card  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time  | 0.1 s  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Distance  | 0cm–5cm (0"–1.97")  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485  | 1 channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiegand  | 1 output channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485  | 1 channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | 12V 0.5A DC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection  | IP66 (silicon sealant is needed, see the manual)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption  |
 Standby ≤ 0.9W, working ≤ 1.7W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  | 135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05")  (L×W×H, 1 in inner carton)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | –30°C to +70°C (–22°F to +158°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 5%RH–95% (non-condensing)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment  | Indoor; outdoor  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 0.16 kg (0.35 lb)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Surface mount  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | CE; FCC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
![]()  | RFID proximity reader for Mifare cards. Very fast read/response times 0.1s  |
![]()  | Numeric keypad for code authentication.  |
![]()  | LED lights for status and operation indications. |
![]()  | This proximity reader can be installed outdoors ( Waterproof - IP66 Protection ) |
![]() ![]()  | Communication via RS485 or Wiegand26/34  |
![]()  | Watchdog function for device anomaly analysis  |
This product is covered by a 24 month warranty.  |
