ACCESS CONTROL - PASSWORD - IC/ID CARD CARD - IP66 - DAHUA TECHNOLOGY - ASR2101A-ME

Product details

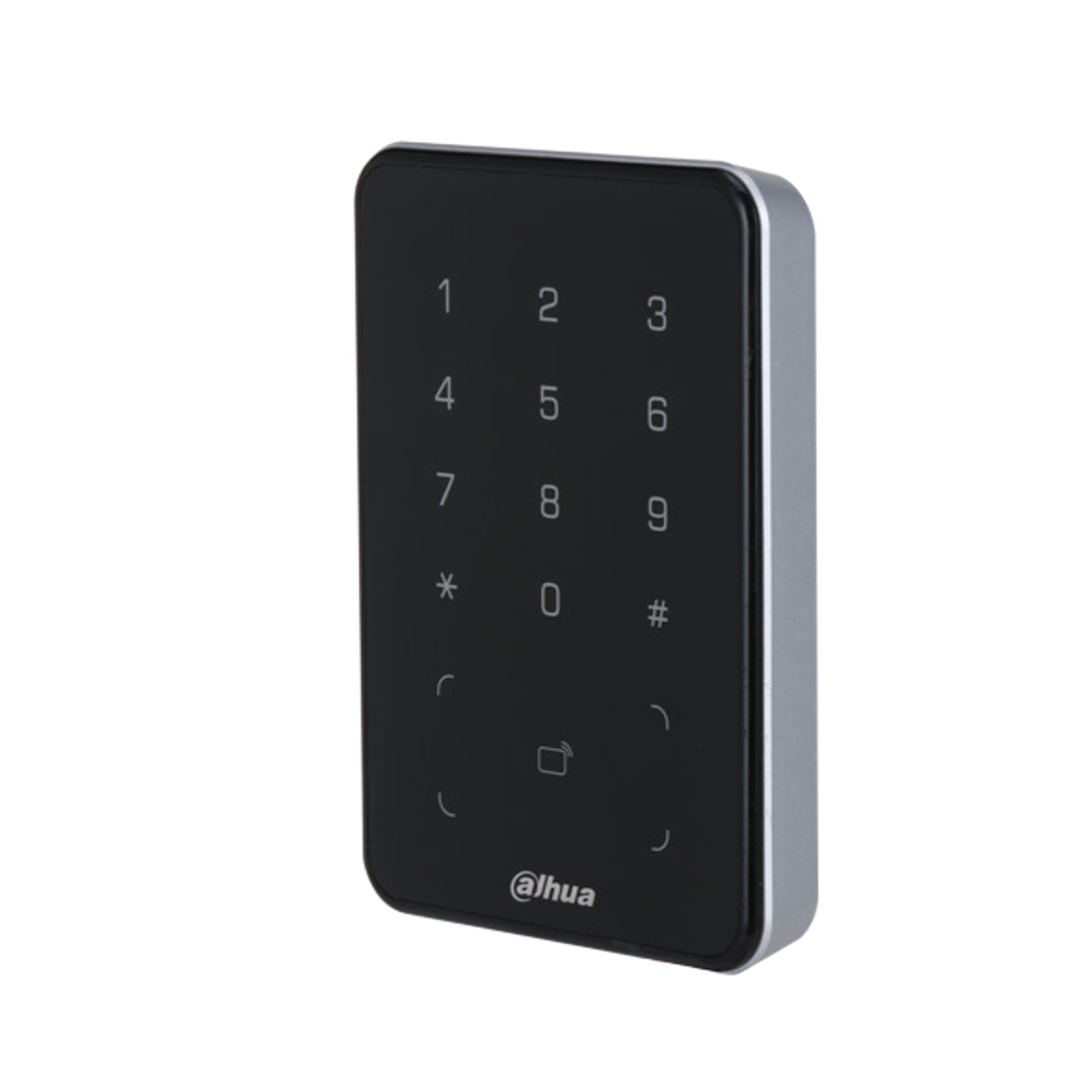

- Access Control - Dahua Security - ASR2101A-ME
 - Support card/password unlock
 - Compatible with Mifare IC Card and ID Card RFID cards
 - RS485 communication support (1 channel)
 - Wiegand support (1 channel output)
 - Tamper alarm support (Tamper)
 - Watchdog analysis function
 - Fast card read/response times (<0.1s)
 - Card Reading Distance 0cm~5cm
 - Power supply: 12V 0.5A DC
 - Dimensions: 123mm × 86mm × 15mm
 - Installation: on the wall
 - Item net weight: 0.35kg
 - Operating temperature: –30°C to +70°C
 - IP66 protection (use of silicone sealant required)
 - Power supply: 12V 0.5A DC

Data sheet
| ASR2101A-ME | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ProductType  | Card reader  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Buzzers  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing  | PC/acrylic panel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
UnlockMode  |  Card swiping/password  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CardType  | IC/ID card  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time  | 0.1s  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Distance  | 0cm–5cm (0"–1.97")  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485  | 1 channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiegand  | 1 channel output  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
alarm  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | 12V 0.5A DC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection  | IP66 (silicon sealant is needed, see the manual)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption  | Standby ≤ 0.9W, working ≤ 1.7W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

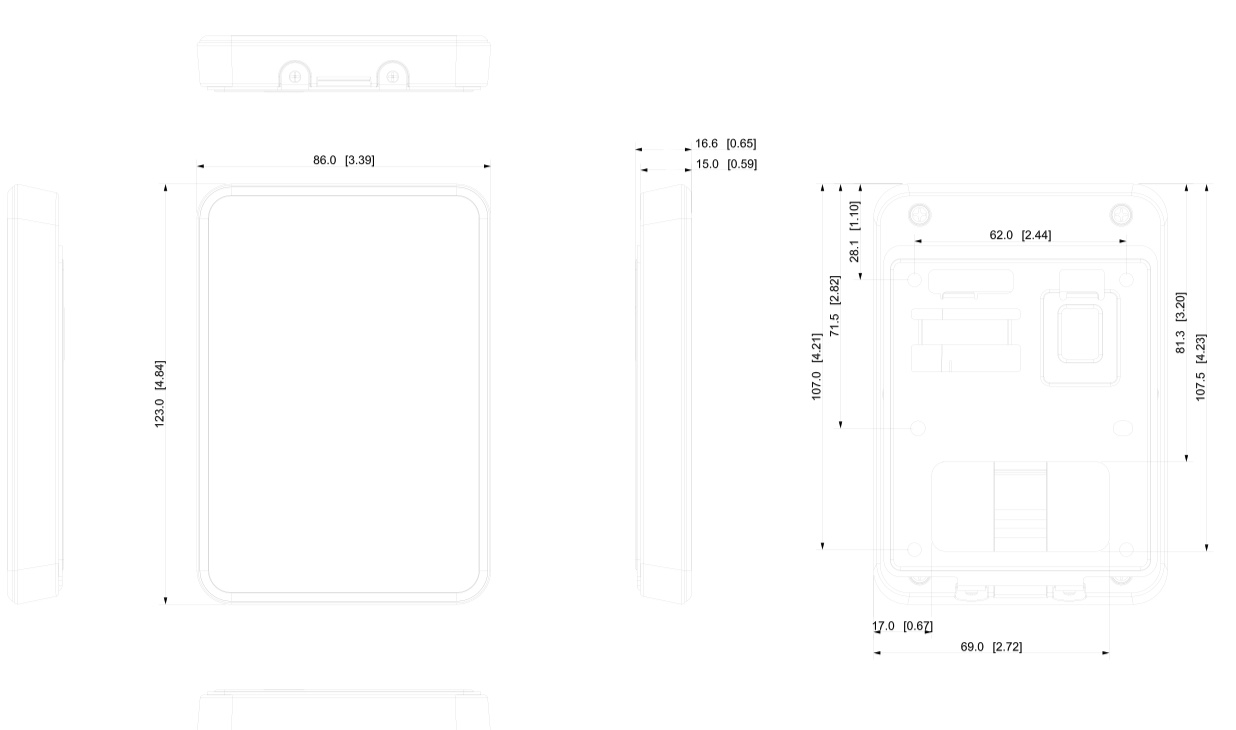

Product Dimensions  | 123mm × 86mm × 15mm (4.84" × 3.38" × 0.59") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 185mm × 163mm × 71mm (7.28" × 6.41 × 2.80")  (L×W×H, 1 in inner carton)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | –30°C to +70°C (–22°F to +158°F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 5%RH–95% (non-condensing)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
operating environment  | indoors; outdoors  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 0.35kg (0.77lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Surface mount  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | THERE IS; FCC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
![]()  | RFID proximity reader for Mifare IC Cards and ID Cards Very fast read/response times <0.1s  |
![]()  | Numeric Keypad for password authentication  |

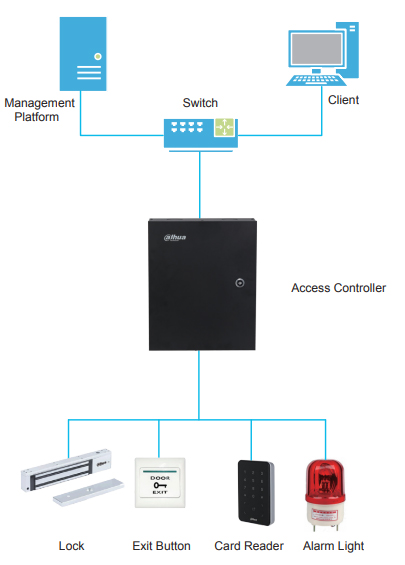

![]() ![]()  | Communication via RS485 or Wiegand  |
![]()  | Watchdog function for analyzing device anomalies  |
This product is covered by a 24 month guarantee.  |
