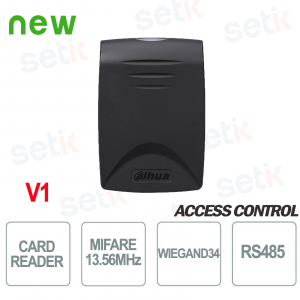

ACCESS CONTROL: MIFARE 13.56MHz SLIDING CARD ACCESS READER - DAHUA

DESCRIPTION: Fast reading/response times, equipped with colored LEDs for status indication and buzzer. IP67 protection (read carefully in the product details tab) Extremely reliable product. |
Product details

- Proximity reader - Dahua Security
- Useful for faster access through Cards
- Compatible with MIFARE 13.56MHz contactless cards
- Communication with RS485/Wiegand34 control
- Fast card reading/response times (<0.1s)
- Activates the audible alarms and indicator light.
- Wateproof design!
- Ideal for both indoor and outdoor environments
- Protection IP66(Apply silicone gel in the gap between the device and the wall. Liquid sodium silicate is recommended.)
- Power supply:DC 9V–15V/100mA
- Dimensions: 72.0mm×102.4mm×18.0mm
- Wall installation
Data sheet
| Model | ASR1100B-V1 | |
| Basic | ||
| Product Type | Card reader | |
| Buzzers | Yes | |
| Casing Material | PC + ABS | |
| Function | ||
| Unlock Mode | Card | |
| Card Type | IC card | |
| Performance | ||
| Response Time | 0.1s | |
| Card Reading Distance | 0cm–3cm (0"–1.18") | |
| Port | ||
| RS-485 | Yes | |
| Wiegand | Yes | |
| Alarm | ||
| Tamper Alarm | Yes | |
| General | ||
| Protection | IP67 (silicon surface treatment needed, see the manual) | |
| Power Supply | DC 9V–15V/100mA | |
| Power Consumption | ≤0.9W (standby), ≤1W (working) | |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) | |
| Working Humidity | 0%–95% (RH), non-condensing | |
| Product Dimensions |
102mm × 72mm × 18mm (4.02" × 2.83" × 0.71") (W×H × D) | |
| Packaging Dimensions | 168mm × 120mm × 52mm (6.61" × 4.72" × 2.05") (W×H × D) | |
| Weight | 0.17 kg (0.37 lb) | |
| Working Environment | Indoor, Outdoor | |
| Installation | Surface Mount | |
Further details
![]() | RFID proximity reader for MIFARE 13.56MHz cards Very fast read/response times <0.1s |
![]() | Activates the audible alarms and indicator light. |
![]() | Communication via RS485 and Wiegand 34 control |
![]() | Protection level IP67 (Dust / Immersion) |
This product is covered by a 24 month warranty. |
