Dahua Professional PoE ONVIF IP NVR NVR5816H-XI XI WizSense Series 16 Channel Recorder with resolution up to 32MP . Smart H.265+, Up to 512Mbps bandwidth in/record/out. Artificial Intelligence : Face detection and recognition, perimeter protection, SMD plus, Video metadata, ANPR, stereo analysis, heat map, people counting. 2U Up to 8HDDs (20TB - not included), 1 audio input/2 output, 16 alarm inputs/8 outputs, 2xHDMI, 2x VGA, 2x USB 2.0, 2x USB 3.0, 1x RS232, 1x RS485. Supports rack or desktop mounting.
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

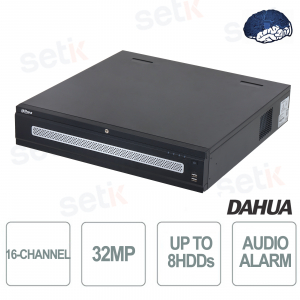

16-CHANNEL NVR ONVIF® IP DAHUA - XI SERIES ARTIFICIAL INTELLIGENCE - UP TO 32 MEGAPIXELS

Up to 32MP resolution - 512Mbps maximum bandwidth - Video compression up to H.265+
Output 2x HDMI - 2x VGA - 4x USB - Audio and Alarm - 2U Up to 8HDDs SATA III 3.5"
Artificial Intelligence: Face detection and recognition, perimeter protection, SMD plus, metadata, ANPR, stereo analysis, heat map, people counting, Video metadata
WIZSENSE TECHNOLOGY: |
Product details

Dahua XI series Dahua's NVR5000-XI series offers advanced recording technology and features AI capabilities making it ideal for IP video surveillance. It features a powerful processor with powerful decoding capabilities that offers high bandwidth access, incoming and outgoing, forwarding and strong decoding capabilities that together produce unobstructed streams and access video up to 32MP . Thanks to Dahua's advanced deep learning algorithms and video metadata technology, the NVR offers:
|
Data sheet
| Model: DVR | NVR5816H-XI |
| SYSTEM | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| TO THE | |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat maps; PPE detection |
| AcuPick AI by Camera + Recorder | Max. 16-channel, 1 combined event per channels |
| PERIMETER PROTECTION | |
| Perimeter Performance AI by Recorder (Number of Channels) | 16 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (32 targets/s) |
| FACE DETECTION | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | Sub screen 4K enabled:4 channels (up to 12 face images/s each channel) Sub screen 4K disabled:8 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| FACE RECOGNITION | |
| Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | Sub screen 4K enabled: 16-channel FD (by camera) + FR (by recorder), image stream: 32 face images/s 4-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Sub screen 4K disabled: 16-channel FD (by camera) + FR (by recorder), image stream: 32 face images/s 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD PLUS | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (64 targets/s) |
| VIDEO METADATA | |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels, 23 attributes extraction. |
| Metadata Performance of AI by Camera (Number of Channels) | 16 channels |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle Attributes | 4 attributes |
| VEHICLE LICENSE PLATE COMPARISON | |
| ANPR by Camera (Number of Channels) | All channels (32 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| AUDIO AND VIDEO | |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32MP; 24MP; 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@30fps; 2-channel 24MP@30fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps;8- channel 8 MP@30 fps; 10-channel 6MP@30fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24MP@30fps; 2-channel 16MP@30fps; 4-channel 12 MP@30 fps;6- channel 8 MP@30 fps; 8-channel 6MP@30fps; 8-channel 5MP@30fps; 12-channel 4MP@30fps; 16-channel 1080p@30fps |
| Video Output | 2 VGA, 2 HDMI VGA:1920×1080, 1280×1024, 1280×720 HDMI:3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36 Sub screens: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| STANDARD COMPRESSION | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| NETWORK | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browsers | Chrome; Firefox; IE |
| RECORDING PLAYBACK | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| STORAGE | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| ALARM | |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; offline camera; audio detection |
| Intelligent Alarm | Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail |
| PORT | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels (1-channel 12V 1A output) |
| HDD Interface | 8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2(10/100/1000 Mbps Ethernet port, RJ-45) |
| GENERAL | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | <13W (without HDD) |
| Net Weight | 7.48 kg (19.38 lb) |
| Gross Weight | 10.2 kg (26.06 lb) |
| Product Dimensions | 440.0 mm × 459.6 mm x 95.0 mm (17.32" × 18.09" × 3.74") (W ×D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm x 226.0 mm (22.44" × 22.44" × 8.90") (W ×D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperatures | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| CERTIFICATIONS | |
| Certifications | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN |
Further details
![]() | This IP NVR recorder has 16 channels for connecting IP cameras Recording resolution up to 32Megapixel Up to 512Mbps bandwidth |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
![]() | This NVR supports ONVIF® 23.06 standard |
![]() | ANPR | Automatic car license plate recognition Ideal for income and expense management. Compatible with Dahua ANPR cameras , integrates black/white list functions, data import/export, addition/deletion of license plate numbers in the lists, search results from a recorded video. ![]() |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of pos search by date or transaction | |
| Supports 8x 3.5" SATA III hard disks up to 20 TB each (hard disks not included) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article . | |
![]() | This NVR has 4 USB ports (2x rear USB3.0, 2x front 2.0) |
| 2x HDMI and 2x VGA port |
![]() | With alarm relay 16 inputs and 8 outputs for inputs from burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.) |
| This NVR features 1 RCA audio input and 2 outputs | |
| Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP | |
![]() | Ability to overwrite the disk when it is full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time |
![]() | This NVR has email sending. In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email, a sound notification or upload videos & screenshots via FTP |
![]() |
Motion function. Recording starts when the camera detects movement. |
![]() | 1x RJ-45 (10/100/1000 Mbps) |
| RS 485 for PTZ Commands (Remotely Controlled Cameras) | |
![]() | RS 232 to communicate with PC and keyboard |
This product is covered by a 24 month warranty. |
