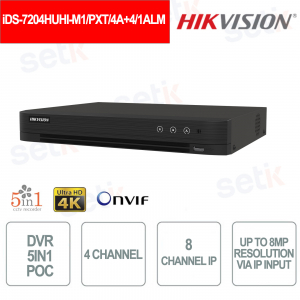

Hikvision iDS-7204HUHI-M1/PXT/4A+4/1ALM – 4CH AcuSense DVR with integrated alarms

Hikvision iDS-7204HUHI-M1/PXT/4A+4/1ALM – 4CH AcuSense DVR with integrated alarms
-35% New

The iDS-7204HUHI-M1/PXT/4A+4/1ALM DVR is a next-generation Turbo AcuSense video recorder designed to offer advanced security with deep learning-based motion detection 2.0 and intelligent perimeter protection. It supports HDTVI/AHD/CVI/CVBS/IP video inputs up to 8 MP, H.265 Pro+ compression for space-saving storage, and audio via coaxial cable. Compatible with Hik-Connect and DDNS, remote management is simple and immediate. The device includes 4 inputs and 1 alarm output , ideal for managing critical events and integrating with complex security systems. Hikvision

Technical Data Sheet

Reference: iDS-7204HUHI-M1/PXT/4A+4/1ALM

Brand: Hikvision

EAN: 6942160408491

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

iDS-7204HUHI-M1/PXT/4A+4/1ALM – 5IN1 4-CHANNEL DVR UP TO 8-CHANNEL IP 8MP - 4IN AND 1OUT ALARM

Hikvision

The Hikvision iDS-7204HUHI-M1/PXT/4A+4/1ALM DVR is a Turbo AcuSense video recorder designed to offer advanced performance with deep learning motion detection 2.0 and intelligent perimeter protection. It supports H.265 Pro+ video compression to reduce storage costs, analog and IP video inputs up to 8 MP, and simplified management via Hik-Connect. Equipped with 4 inputs and 1 alarm output, it ensures secure integration with professional security systems while offering high reliability and remote management.

Main features:

- Motion Detection 2.0 with deep learning

- Up to 8 MP recording resolution

- H.265 Pro+ video compression

- HDTVI/AHD/CVI/CVBS/IP video inputs

- 4 alarm channels IN and 1 channel OUT

- Remote management via Hik-Connect & DDNS


Further details

Channels :
It supports 4 analog video inputs and up to 8 IP channels , with advanced mode that allows flexible and scalable system management.
Resolution:
Recording up to 8MP with H.265 Pro+ compression that reduces storage costs while maintaining smooth and detailed images.
Motion Detection 2.0 :
Deep learning-based analysis to classify people and vehicles, dramatically reducing false alarms caused by irrelevant movements such as leaves or lights.
 Perimeter Protection :
Line crossing and intrusion detection functions, up to 4 channels, for targeted and intelligent protection.
Facial Detection:
Advanced deep learning algorithms with line crossing analysis and intrusion detection, focused on people and vehicles to reduce false alarms.
Audio Channels :
4 RCA audio inputs and 1 output, plus coaxial audio support and two-way communication for more complete control.
Alarm channels:
4 inputs and 1 alarm output for managing critical events, with the possibility of integration with other security systems.
Network :
Bandwidth up to 96 Mbps, remote connections for up to 32 users, and Wi-Fi compatibility via dongle. It supports TCP/IP, PPPoE, DDNS, Hik-Connect, and ONVIF protocols for maximum network versatility.
iDS-7204HUHI-M1pXT4A+41ALM dimensions

Technical data sheet

iDS-7204HUHI-M1/PXT/4A+4/1ALM
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Line Crossing Detection/Intrusion Detection Up to 4-ch
Facial Detection
Facial Detection and Capture Face picture detection, face picture search
Video and Audio
IP Video Input 2-ch (up to 6-ch)
Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input

4-ch;
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

PoC Camera Input Support Hikvision PoC camera
HDMI Output

1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous playback

4-ch

HDTVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 × 1665)@20 fps, 5MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDCVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25fps, 720p@30fps, 720p@25fps

Video Output Mode HDMI/VGA simultaneous output
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution

8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate

32 Kbps to 10 Mbps

Dual-stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network
Total Bandwidth 96 Mbps
Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection

32

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out 4/1
General
Power supply 48 VDC, 1.35 A
Consumption ≤ 10 W
Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimensions (W × D × H)

319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)

Weight

≤ 2.2 kg (without HDD, 4.9 lb)
