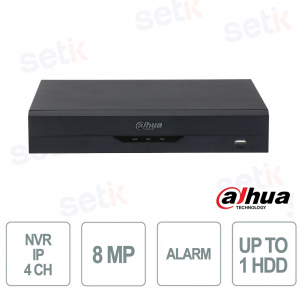

Dahua NVR1104HS-S3/H NVR 4 Channels Full HD with Smart H.265+

Dahua NVR1104HS-S3/H NVR 4 Channels Full HD with Smart H.265+
BEST PRICE -56% New

The NVR1104HS-P-S3/H is a compact 4-channel NVR with support for up to 1080p, ideal for residential and commercial video surveillance solutions. Thanks to Smart H.265+/H.264+ compression, it reduces bandwidth and storage consumption while maintaining high video quality. It supports ONVIF and RTSP protocols, ensuring compatibility with major IP camera brands. It integrates VGA and HDMI video outputs up to 1080p, a simplified 4.0 user interface, and remote management from mobile devices via P2P. With up to 8TB of HDD and advanced security features, it represents a reliable, economical, and high-performance solution for small surveillance systems. Dahua

Technical Data Sheet

Reference: NVR1104HS-P-S3/H

Brand: Dahua

EAN: 6937552405295

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR1104HS-P-S3/H | 4 CHANNEL IP ONVIF® DAHUA NVR - H.265+ - UP TO 8 MEGAPIXELS


Dahua

The Dahua NVR1104HS-S3/H network video recorder is a compact 4-channel NVR with support for up to 1080p, designed for small residential and commercial surveillance systems. Thanks to advanced Smart H.265+/H.264+ compression, it significantly reduces bandwidth and storage consumption while maintaining high video quality. It features a 4.0 user interface, remote management via P2P, and compatibility with ONVIF and RTSP protocols for easy integration with IP cameras from various brands.

Main specifications:

- 4 video channels with resolution up to 1080p@30fps

- Smart H.265+/H.264+ compression for storage savings

- Simultaneous HDMI/VGA video outputs up to 1080p

- ONVIF and RTSP compatibility with third-party IP cameras

- Remote management from iOS/Android smartphones (P2P)

- 1 SATA HDD slot up to 8TB

Further details

Number of Channels :
Supports up to 4 channels of input, ideal for small residential, retail or office video surveillance systems, with smooth recording up to 1080p@30fps.
Resolution :
Compatible with various resolutions up to 8MP , it offers sharp and detailed images, ensuring clear vision even with multiple active video streams.
New User Interface:
The 4.0 user interface, both local and web, has been designed for intuitive and fast management, with simplified menus and well-organized functional modules.

Decoding:
With Smart H.265+/H.264+ support, it optimizes encoding to suit the scene, significantly reducing bandwidth and disk space consumption without sacrificing video quality.
Network:
It supports ONVIF and RTSP protocols, integrates P2P connection for remote management via mobile app (iOS/Android) and guarantees compatibility with IP cameras of different brands.
Alarm:
It includes detection functions such as motion detection, privacy masking, video loss, PIR and IPC alarms , with anomaly management (disk errors, IP conflicts, disconnections) for a security system that is always reliable.
NVR1104HS-P-S3-H dimensions

Technical data sheet

NVR1104HS-P-S3/H

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

Video

Access Channel

4 channels

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding

Resolution

8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; CIF

Video Output

1–ch@8MP (30 fps) or 1–ch@5MP (30 fps) or 2–ch@4MP (30 fps) or 2–ch@3MP (30 fps) or 4–ch@1080p (30 fps)

Non-motor Vehicle Attributes

1 VGA/1 HDMI simultaneous video output, maximum resolution 1080p

Multi-screen Display

1/4

Third Party Camera Access

Onvif; RTSP;

Compression

Video

Smart H.265+; H.265; Smart H.264+; H.264

Audio

PCM; G711A; G711U; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P

Mobile Phone Access

iDMSS (iOS); gDMSS (Android)

Interoperability

ONVIF (profile T/profile S/profile G); CGI; SDK

Browser

Chrome; IE9 or above; Firefox

Recording Playback

Multi-channel Playback

Up to 4 channels

Record Mode

Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording

Storage

Local HDD and network

Backup

USB device

Playback Mode

1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off

Alarm

General Alarm

Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

Anomaly Alarm

Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly

Alarm Linkage

Video recording, snapshot, log, preset, tour

External Port

HDD

1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI

1

VGA

1

Network

1 × RJ-45 (10 or 100 Mbps)

RCA Input

1

RCA Output

1

General

Power Supply

12V DC, 1.5A

Power Consumption

Total output of NVR is ≤ 10W (without HDD)

Net Weight

0.81 kg (1.79 lb)

Gross Weight

1.38 kg (3.04 lb)

Product Dimensions

260mm × 225mm × 47.6mm (W × L × H)

Packaging Dimensions

87mm × 331mm × 312mm (W × L × H)

Operating Temperature

-10°C to 45°C (+34°F to +113°F)

Storage Temperature

0°C to 40°C (+32°F to +104°F)

Operating Humidity

10%–93%

Storage Humidity

30%–85%

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop

Certifications

CE/FCC

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
