NVR5424-24P-EI | DAHUA 24-CHANNEL IP ONVIF® NVR - H.265+ - UP TO 32 MEGAPIXELS - 24 POE CHANNELS


Dahua

The Dahua NVR5424-24P-EI WizSense is a 24-channel network video recorder with 24 PoE ports, designed for advanced IP video surveillance systems. Equipped with a built-in AI chip and deep learning algorithms, it supports intelligent functions such as facial recognition, perimeter protection and SMD Plus, reducing false alarms and improving security . With support for resolutions up to 32MP, bandwidth up to 384 Mbps and ONVIF compatibility, it offers high performance and seamless integration with third-party cameras.

Main specifications:

- 24 channels with 24 built-in PoE ports (up to 210W total)

- Supported resolution up to 32MP and 4K HDMI/VGA video output

- Face Detection and Face Recognition with database of up to 20,000 images

- Intelligent perimeter protection with false alarm reduction

- SMD Plus to distinguish people and vehicles from irrelevant movements

- Advanced features: AcuPick, people counting, ANPR and heat map

- Support up to 4 SATA HDDs of 20TB each for extended storage

Further details

Number of Channels :
It supports up to 24 IP channels with 24 built-in PoE ports, simplifying installation and direct powering of the cameras.
Resolution :
Compatible with recordings up to 32MP and 4K HDMI and VGA video outputs , for ultra-detailed images.
AcuPick:
Advanced intelligent search technology that combines recorder- and camera-side AI to quickly identify specific targets across large volumes of video data.

Face Recognition:
It supports up to 20 databases with 20,000 images, recognizing up to 16 channels simultaneously, ideal for advanced security applications.
Perimeter Protection:
Automatically filters false alarms caused by irrelevant movements (animals, leaves, changes in light), improving the accuracy of alerts.
Heat Map by Camera:
Generate heat maps to analyze people density and flow in different areas, useful for security and business analysis.
ANPR by Camera:
It recognizes and records vehicle license plates thanks to deep learning algorithms, with support for blocklists and allowlists.
SMD Plus:
Intelligently distinguishes between people and vehicles, dramatically reducing false alarms compared to traditional motion detection.
Network:
Wide compatibility with ONVIF support, standard protocols (IPv4/IPv6, HTTP, HTTPS, TCP/IP, P2P, ISCSI) and remote access via iOS/Android mobile app.

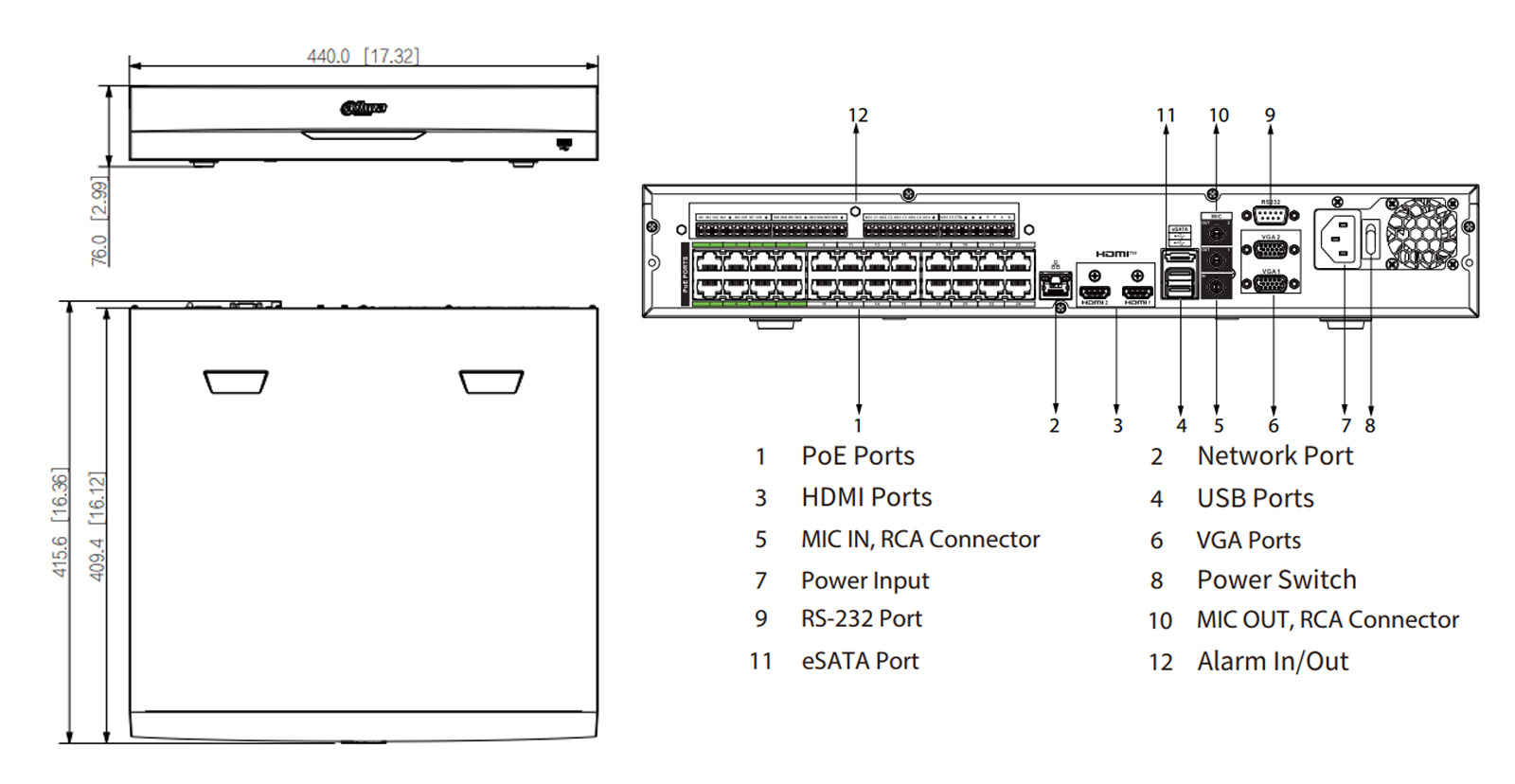

NVR5424-24P-EI dimensions

Technical data sheet

NVR5424-24P-EI

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder Face detection; face recognition; perimeter protection; SMD
AI by Camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map
AcuPick AI by Camera + Recorder Max. 24-channel, 1 combined event per channel
Perimeter Protection
Perimeter Performance AI by recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) All channels (32 targets/s)
Face Detection
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) 16 channels
Face Recognition
Face Database Capacity Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G.
Face Recognition Performance of AI by Recorder (Number of Channels) 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) 16 channels
SMD Plus
SMD Plus by Recorder 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera All channels (64 targets/s)
Video Metadata
Metadata Performance of AI by Camera (Number of Channels) 8 channels
People Attributes 9 human body attributes
Motor Vehicle Attributes 9 attributes
Non-motor Vehicle Attributes 4 attributes
Vehicle License Plate Comparison
ANPR by Camera (Number of Channels) All channels (32 targets/s)
License Plate Database Capacity 1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Video

Access Channel

24 channels

Network Bandwidth

AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32MP; 24MP; 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps; 24-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 1-channel 24MP@25fps; 2-channel 16MP@30fps; 4-channel 12MP@30fps; 6-channel 8MP@30fps; 8-channel 6MP@30fps; 8-channel 5MP@30fps; 12-channel 4MP@30fps; 24-channel 1080p@30fps

Video Output

2 VGA, 2 HDMI
VGA:1920×1080, 1280×1024, 1280×720
HDMI:3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2

Multi-screen Display

Main screen: 1/4/8/9/16/25
Subscreen: 1/4/8/9/16

Third Party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression

Video

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI

Mobile Phone Access

Android; iOS

Interoperability

ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group Yes

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; offline camera; audio detection

Intelligent Alarm

Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

2-channel RCA

Alarm Input

16 channels

Alarm Output

6 channels (1-channel 12V 1A output)

Disk Interface

4 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

eSATA

1

RS-232 1
RS-485 1 (half-duplex serial communication)

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)

HDMI

2

VGA

2

Network

1 (10/100/1000 Mbps Ethernet port, RJ-45)

PoE Port

24 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

Net Weight

4.63 kg (10.21 lb)

Gross Weight

6.78 kg (14.95 lb)

Product Dimensions

440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") (W ×D × H)

Packaging Dimensions

529.0 mm × 499.0 mm x 211.0 mm (20.83" × 19.65" × 8.31") (W ×D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
