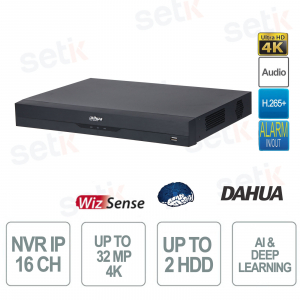

NVR5216-EI2 | 16 CHANNEL IP ONVIF® DAHUA NVR - 4K ULTRA HD - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The NVR5216-EI2 is a 1U 16-channel NVR with 2 HDDs from the WizSense range, designed to offer high performance and advanced artificial intelligence functions. Thanks to the industrial processor and AI Features algorithms, it guarantees Face Detection , Face Recognition , Perimeter Protection and quick searches with AcuPick , as well as Vehicle License Plate Comparison (ANPR) . The intuitive NVR NEXT interface improves management, while support for up to 32MP resolution with 8K HDMI output , Network functions and intelligent Alarm systems, together with PPE Detection by Camera , ensure complete and reliable video surveillance.

Main specifications:

- 16 IP Channels, Resolution up to 32MP and 8K HDMI output

- AcuPick for quick and targeted searches

- NVR NEXT with user-friendly modular interface

- AI Features with deep learning algorithms

- Intelligent Perimeter Protection, Face Detection and Face Recognition

- Vehicle License Plate Comparison (ANPR)

- Advanced network for remote management

- Intelligent and customizable alarms

- PPE Detection by Camera for Occupational Safety

Further details

✅ Number of Channels :
The NVR5216-EI2 supports up to 16 IP channels , ensuring simultaneous management of multiple cameras for comprehensive surveillance.
✅ Resolution:
Compatible with cameras up to 32MP and 8K HDMI output, it delivers sharp and detailed images even in complex scenarios.
✅ AcuPick:
AcuPick technology leverages front-end and back-end AI to quickly identify specific targets in video streams.

✅ NVR NEXT:
The NVR NEXT modular interface is intuitive and user-friendly, optimizing operational flows and simplifying management.
✅ AI Features:
Thanks to the AI chip and deep learning algorithms, the NVR offers advanced functions such as intelligent detection, precise analysis and false alarm reduction .
✅ Perimeter Protection:
The perimeter protection function , the system recognizes intrusions and suspicious movements in real time, distinguishing people and vehicles to maximize security .
✅ Face Detection:
The facial detection system analyzes attributes such as age, gender, expressions, and the presence of masks and glasses.
✅ Face Recognition :
With the facial recognition function , it manages up to 20 databases with 30,000 images , useful for access control and rapid identification .

✅ Vehicle License Plate Comparison:
The system supports ANPR (Automatic Number Plate Recognition) for license plate recognition and comparison, with capacity for up to 20,000 registered numbers .
✅ Network:
Compatible with IPv4/IPv6, HTTP/HTTPS, FTP, SNMP, ONVIF protocols, it guarantees maximum interoperability and remote management even from a mobile app.
✅ Alarm:
It integrates general, anomaly and intelligent alarms (including face detection, perimeter protection and PPE detection), with 4 configurable inputs and 2 outputs.
✅ PPE Detection by Camera:
The system detects protective devices such as masks, helmets, reflective vests and glasses , reporting any non-compliance .
NVR5216-EI2 dimensions

Technical data sheet

NVR5216-EI2

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

4 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

Max. 16-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

4 channels, 22 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

People Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

32 channels

Network Bandwidth

AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps

Video Output

1 VGA, 1 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI and VGA

Multi-screen Display

Main screen: 1/4/8/9/16
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cybersecurity exception

Intelligent Alarm

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

4 channels

Alarm Output

2 channels

HDD Interface

2 SATA ports, each disk can contain up to 20TB. This limit varies depending on the environment temperature.

RS-232

1

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1(10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 4 A

Power Consumption

Total output of NVR is ≤ 10W (without HDD)

Net Weight

1.55 kg (3.42 lb)

Gross Weight

2.77 kg (6.11 lb)

Product Dimensions

375.0 mm × 284.8 mm × 56.0 mm (14.76" × 11.21" × 2.20") (W × D × H)

Packaging Dimensions

427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
