The XVR1B16H-I/T WizSense is a professional 16-channel penta-brid digital video recorder designed for advanced, high-performance video surveillance systems. Thanks to WizSense technology with artificial intelligence and deep learning , it ensures accurate detection of people and vehicles via SMD Plus , reducing false alarms. It supports resolution up to 5MP , two-way audio over coaxial cable , integration of up to 24 IP cameras , Smart H.265+/AI Coding compression to optimize bandwidth and storage and Smart Dual Light for intelligent and effective night vision, making it ideal for corporate, commercial and industrial contexts. Dahua
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

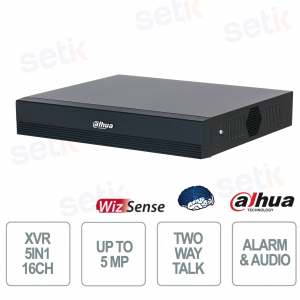

XVR1B16H-I/T | WIZSENSE 16CH PENTA-BRIDGE 5MP COOPER 1U 1HDD DIGITAL VIDEO RECORDER

The Dahua XVR1B16H-I/T WizSense is a professional digital video recorder designed for complex video surveillance systems that require high performance, continuous reliability, and intelligent event management. Thanks to WizSense technology with artificial intelligence and deep learning algorithms, the device performs advanced image analysis, distinguishing people and vehicles and drastically reducing false alarms. Penta-brid compatibility allows integration with high-resolution analog and IP cameras, while advanced compression and intelligent lighting functions ensure maximum efficiency, high video quality, and complete control even in critical environments.
Main specifications:
- 16 penta-brid channels for flexible management of HDCVI, AHD, TVI, CVBS and IP cameras
- WizSense technology with AI and deep learning for intelligent recognition of people and vehicles
- Advanced SMD Plus for accurate alarms and drastic reduction of false positives
- Up to 5MP resolution and 4K HDMI video output for detailed and sharp images
- Two-way audio over coaxial cable for real-time communication and active deterrence
- Support up to 10 IP cameras up to 6MP with high bandwidth
- Smart H.265+ compression and AI Coding to optimize storage and network consumption
- Smart Dual Light for adaptive and effective night vision
- Up to 6TB SATA enclosure for 24/7 continuous video storage
Further details

Technical data sheet
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
| XVR1B16H-I/T | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Recorder |
16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD by Camera |
24 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Irregular Black Block Masking |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Irregular Black Block Masking by Recorder | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Analog Camera Input |
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera Input |
1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Camera Input |
Up to 24 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capability |
Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1fps-12fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
32 kbps–4096 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
1 HDMI, 1 VGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third-party Camera Access |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
