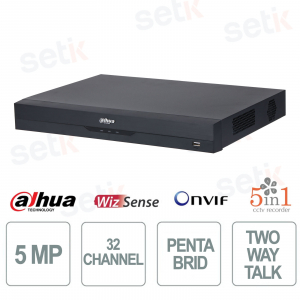

XVR5232AN-I3/T 32CH 5MP WizSense AI 4K with AcuPick and Face Recognition up to 48 IP 8MP - Dahua

XVR5232AN-I3/T 32CH 5MP WizSense AI 4K with AcuPick and Face Recognition up to 48 IP 8MP - Dahua
BEST PRICE -56% New

XVR5232AN-I3/T - It is a 32-channel Penta-brid 5MP/1080P WizSense digital video recorder designed for advanced video surveillance systems, compatible with HDCVI, AHD, TVI, CVBS and up to 48 8MP IP channels with bandwidth up to 192 Mbps. It integrates advanced AI functions such as Perimeter Protection on 8 channels , SMD Plus on 32 channels , Face Recognition on 2 channels and AcuPick , ensuring intelligent analysis of people and vehicles with false alarm reduction. It supports AI Coding, Smart H.265+ and H.264 , optimizing storage and bandwidth. It features two-way audio on 32 coaxial channels , 4K HDMI, VGA and CVBS outputs, dual HDD up to 2 SATA 16TB each , Gigabit RJ-45 port and stable and professional Embedded Linux system. Ideal solution for large installations that require high performance, scalability and integrated artificial intelligence. Dahua

Technical Data Sheet

Reference: XVR5232AN-I3/T

Brand: Dahua

EAN: 6937552415065

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


XVR5232AN-I3/T | PENTA-BRID 32 CHANNEL VIDEO RECORDER - TWO WAY TALK - WIZSENSE 5MP


Dahua

The Dahua XVR5232AN-I3/T is a 32-channel Penta-brid 5MP/1080P WizSense digital video recorder compatible with HDCVI, AHD, TVI, CVBS and up to 48 8MP IP channels , with input bandwidth up to 192 Mbps for large installations. It integrates Perimeter Protection on 8 channels, SMD Plus on 32 channels, Face Recognition on 2 channels and AcuPick , offering advanced AI analysis with intelligent false alarm filtering. It supports AI Coding, Smart H.265+ and H.264 , ensuring storage and bandwidth optimization without losing detail. It features 4K HDMI, VGA and CVBS output, two-way audio on 32 coaxial channels , dual SATA up to 16TB each and Gigabit RJ-45 port, ensuring high performance and maximum reliability.

Main specifications:

- 32 Channel Penta-brid 5MP/1080P

- Up to 48 IP Channels 6MP – 192 Mbps

- Perimeter Protection 8CH

- Face Recognition 2CH

- SMD Plus 32CH

- AcuPick AI

- AI Coding and Smart H.265+

- HDMI 4K, VGA, CVBS

- 2 SATA HDDs up to 16TB each

- Gigabit RJ-45 port

Further details

Number of Channels:
32CH Penta-brid 5MP/1080P with HDCVI, AHD, TVI, CVBS support and up to 48 8MP IP channels , input bandwidth up to 192 Mbps , ideal for large professional video surveillance systems and high scalability hybrid systems .
Maximum resolution :
Up to 5MP on analog and 8MP on IP , with 4K HDMI (3840×2160) , VGA and CVBS output , multi-screen management up to 36 windows and AI Coding, Smart H.265+ and H.264 compression for maximum storage efficiency .
Two-Way Talk:
Bidirectional on 32 BNC coaxial channels , allowing real-time communication between camera, recorder and client with immediate audio and centralized management .
AcuPick:
2-channel AI for intelligent search of people and vehicles within large volumes of recordings, dramatically reducing investigation times .
Perimeter Protection:
On 8 channels with Tripwire and Intrusion Detection , advanced filtering of false alarms (animals, leaves, light changes) and accurate target recognition .
Face Detection:
On 2 channels with analysis of 6 facial attributes and up to 12 face images per second per channel, ideal for access control and intelligent monitoring .
Face Recognition:
With databases of up to 10 archives and 10,000 faces , automatic real-time comparison for advanced security applications .
Alarm:
Complete alarm system with motion detection management , intelligent alarms (Face, Perimeter, SMD Plus) , email notifications, buzzer, snapshots and integration with external devices .
Doors:
Professional ports with 32 BNC inputs, HDMI 4K, VGA, CVBS, 2 USB (2.0 and 3.0), 2 SATA up to 16TB each, RS-485 and Gigabit RJ-45 port , designed for enterprise environments .
Network Protocol:
Advanced HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, ONVIF Profile T/S/G, SNMP, FTP, DDNS, P2P , compatible with major browsers and iOS/Android apps for comprehensive remote management.

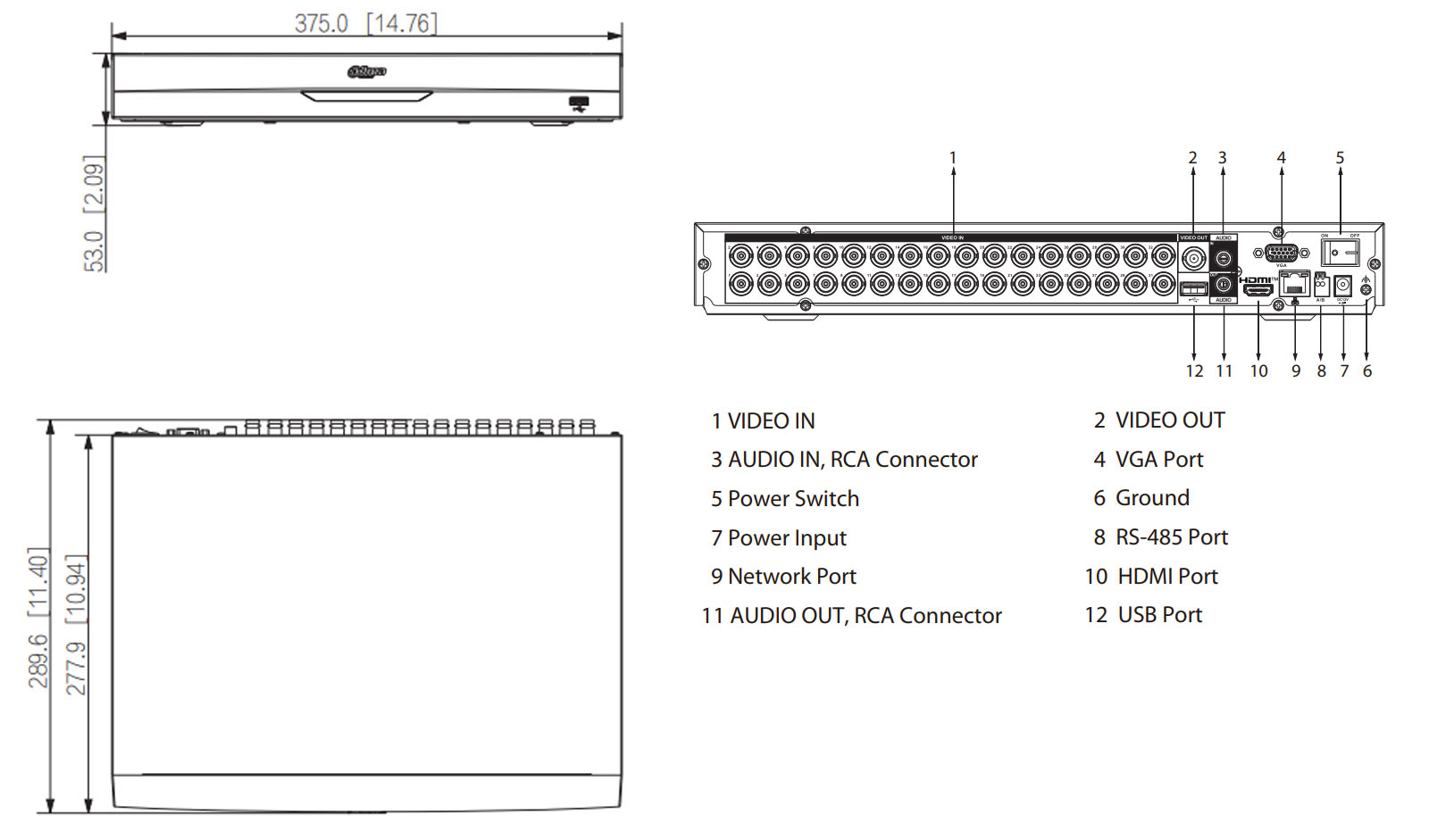

XVR5232AN-I3-T dimensions

Technical data sheet

XVR5232AN-I3/T
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AcuPick
AcuPick AI by Recorder (Number of Channels) 2 channels
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 8 channels, 10 IVS rules for each channel
Face Detection
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD
SMD Plus by Recorder 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera 48 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.
Scene Changing
Scene Changing by Recorder 1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder 1 channel
Audio and Video
Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP(2560×1944)@20fps; 5MP(2960 × 1665)@20/25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
IP Camera Input Up to 48 channels of IPC access
16 IP channels by default + 32 channels (analog channels are converted to IP channels)
Incoming bandwidth: 192 Mbps, recording bandwidth: 192 Mbps and outgoing bandwidth: 192 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
Encoding Capability Encode Enhancement disabled:
Main stream:
Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1fps–30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled:
Main stream:
Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps)
Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps),others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1fps–30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 VGA, 1 HDMI
VGA:1920×1080, 1280×1024, 1280×720
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
Multi-screen Display Main Screen: 1/4/8/9/16/25/36
Sub Screen: 1/4/8/9/16
The sub screen display conflicts with IP extension function.
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection; intelligent
Recording Playback 1/4/9/16
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Storage
Disk Group Yes
Alarm
General Alarm Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
CVBS Output 1-channel
Audio Input 1-channel RCA
32-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Coaxial two-way talk: 8-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
Disk Interface 2 SATA ports, up to 16 TB. This limit varies depending on the environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 5 A
Power Consumption <16 w="" without="" hdd="" td="">
Net Weight 1.90 kg (4.19 lb)
Gross Weight 3.24kg (7.14 lb)
Product Dimensions 375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)
Packaging Dimensions 427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop
Certifications CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
