WiFi 6 4 Channel 16MP SMD Plus AI Wireless NVR with Smart H.265+ and Perimeter Protection - Dahua

WiFi 6 4 Channel 16MP SMD Plus AI Wireless NVR with Smart H.265+ and Perimeter Protection - Dahua
NEW -56% New

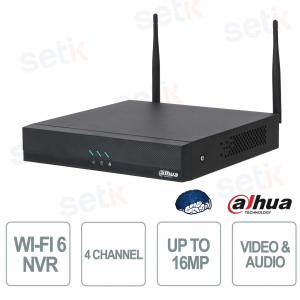

NVR2104HC-W is a wireless network video recorder designed for modern video surveillance systems, featuring integrated Wi-Fi 6 with dual high-gain antennas to ensure stable connections and extended coverage. It supports up to 4 IP channels with resolutions up to 16MP , offering high recording and video decoding performance. Thanks to SMD Plus technology with Artificial Intelligence , it is able to filter false alarms by distinguishing people and vehicles. It integrates AP and Station modes for maximum installation flexibility without cabling, ideal for home and commercial environments. Smart H.265+ compression optimizes bandwidth and storage, while perimeter protection functions increase the accuracy of security events. Dahua

Technical Data Sheet

Reference: NVR2104HC-W

Brand: Dahua

EAN: 6937552404762

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


NVR2104HC-W | 4-CHANNEL WI-FI NVR - MAXIMUM RESOLUTION 16MP - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua NVR2104HC-W is a wireless network video recorder designed for modern video surveillance systems, featuring integrated Wi-Fi 6 with dual high-gain antennas to ensure stable connections and extended coverage without cabling. It supports up to 4 IP channels with resolutions up to 16MP , offering high recording and video decoding performance. Thanks to SMD Plus technology with Artificial Intelligence , it is able to distinguish people and vehicles, reducing false alarms. It integrates AP and Station modes for flexible and immediate configuration, while Smart H.265+ compression optimizes bandwidth and storage. Perimeter protection functions improve event accuracy, making it ideal for residential and commercial environments.

Main specifications:

- Built-in Wi-Fi 6 with dual antennas for stable connection and wide coverage

- Support up to 4 IP channels and resolution up to 16MP for high quality video surveillance

- SMD Plus with Artificial Intelligence for intelligent detection and false alarm reduction

- AP and Station modes for flexible installation without wiring

- Smart H.265+ compression for bandwidth and storage optimization

- Advanced perimeter protection for greater alarm accuracy

- Decoding up to 10×1080p or 4×5MP for smooth video stream management

- ONVIF compatibility and full network protocols for integration with existing systems

- HDMI and VGA outputs for high definition viewing

- HDD support up to 20TB for extensive and reliable storage

Further details

Number of Channels:
4 IP channels that allow the simultaneous management of multiple cameras, ideal for small and medium-sized home and professional video surveillance systems.
Maximum resolution :
Maximum resolution up to 16MP which guarantees ultra-high definition images and high details , supporting various video formats up to 4K
Wi-Fi 6:
Built-in Wi-Fi 6 with dual high-gain antennas for a stable, fast connection with wide coverage , without the need for cabling.
Artificial Intelligence:
SMD Plus Artificial Intelligence capable of distinguishing people and vehicles, reducing false alarms and improving system efficiency.
Perimeter Protection:
Advanced Perimeter Protection that filters out irrelevant events such as animals or environmental motion, providing more accurate and reliable alarms.
Alarm :
Intelligent alarm system with notifications, recording, snapshots and email, for complete real-time event management.
Audio and Video:
Advanced audio & video management with support for Smart H.265+, H.264 codecs and multiple streams , for high quality and bandwidth optimization.
Doors :
Full HDMI, VGA, USB and RJ-45 ports ensure maximum connection flexibility and integration with other devices.
Disk capacity:
Disk capacity up to 20TB (1 SATA) for extensive and reliable storage of video recordings.

Technical data sheet

NVR2104HC-W
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
TO THE
AI by Recorder SMD Plus
AI by Camera Perimeter protection; SMD
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
SMD
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera All channels (16 targets/s)
Audio and Video
Access Channel 4 channels
Network Bandwidth AI disabled: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution 16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
Decoding Capability AI disabled: 1-channel 16 MP@30 fps; 2-channel 8MP@30fps; 3-channel 6MP@30fps; 4-channel 5MP@30fps; 5-channel 4MP@30fps; 6-channel 3MP@30fps; 8-channel 2MP@30fps
AI enabled: 1-channel 12 MP@30 fps; 2-channel 6MP@30fps; 3-channel 4MP@30fps; 4-channel 3MP@30fps; 6-channel 1080p@30fps; 8-channel 720p@30fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display 1/4
Third-party Camera Access ONVIF
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Wi-Fi
Standard Wi-Fi 802.11b/g/n/a/ac/ax
Frequency Range 2400-2483.5MHz, 5150-5350MHz, 5470-5725MHz, 5725-5850MHz
Transmitter Power (EIRP) CE EIRP:
≤20dBm@2400-2483.5MHz;
≤23dBm@5150-5250MHz;
≤20dBm@5250-5350MHz;
≤27dBm@5470-5725MHz;
≤14dBm@5725-5850MHz
Recording Playback
Multi-channel Playback Up to 4 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm Motion detection; camera external alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Perimeter protection; SMD Plus
Alarm Linkage Recordings; snapshot; buzzers; log; presets; e-mail; tours
Port
Disk Interface 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
Antenna 2
General
Power Supply 12 VDC, 1.5 A
Power Consumption <6 w="" without="" hdd="" td="">
Net Weight 0.57 kg (1.26 lb)
Gross Weight 0.98 kg (2.16 lb)
Product Dimensions 197.0 mm × 234.0 mm × 41.5 mm (7.76" × 9.21" × 1.63") (W × D × H)
Packaging Dimensions 332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W × D × H)
Operating Temperature –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature -20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Certifications CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
